LBL Lighting Baybridge 5 Light Chandelier CH - Manual (Page 2)

2

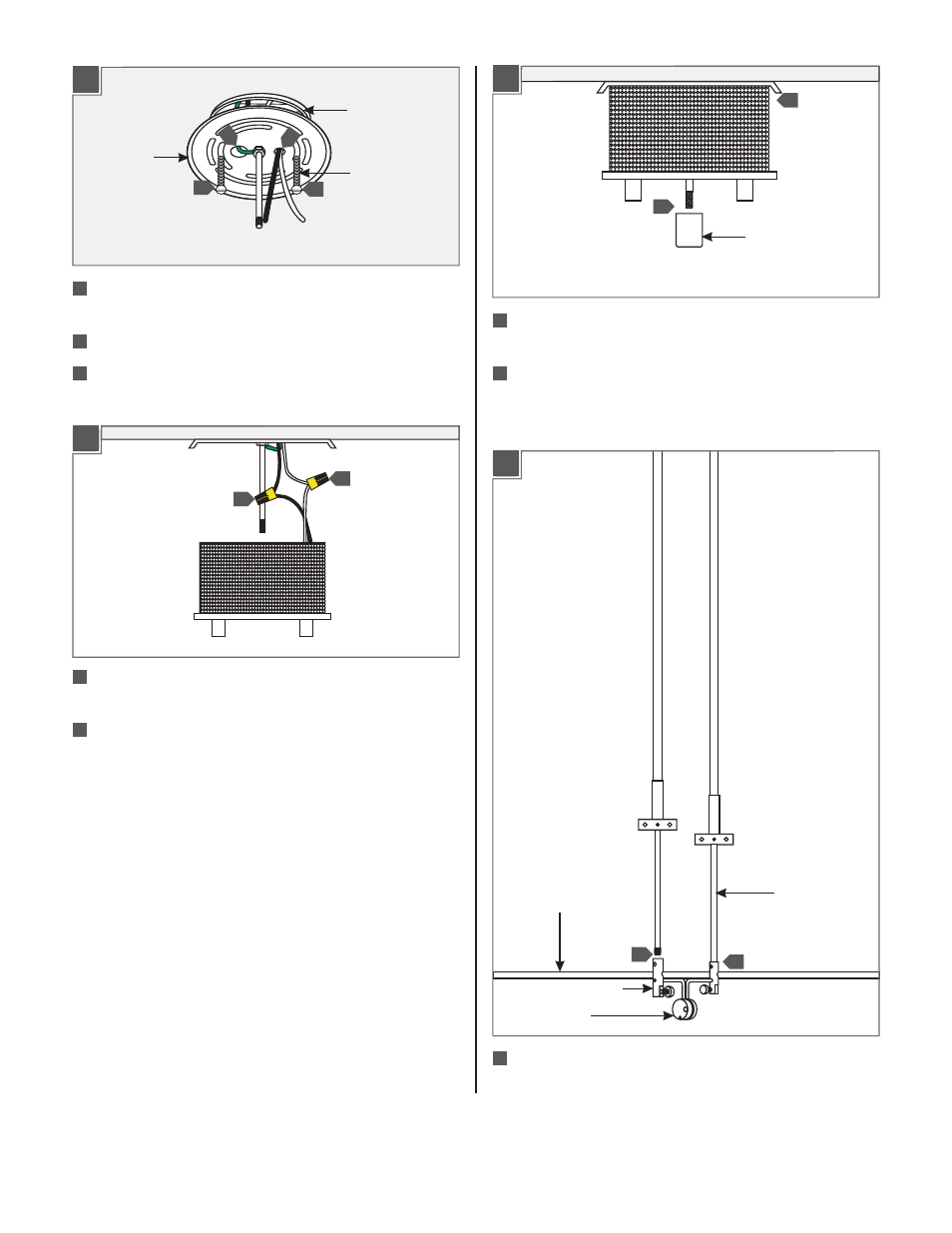

Screw the two suspension rods completely into the middle
socket posts.
SUSPENSION
ROD
SOCKET RAIL
SOCKET
SOCKET POST
Connect the canopy white wire to the neutral power line wire
with a wire nut.
Connect the canopy black wire to the hot power line wire
with a wire nut.
Place all wires and wire nut connections properly inside
the canopy.
Slide the canopy center hole onto the threaded rod. Replace
and completely tighten the cap nut to secure the canopy in
place.
CAP NUT
Make sure the backplate is grounded in accordance with local
electrical codes.
Feed the power wires through the backplate side hole.
Mount the backplate to the electrical box with two #8-32
screws.
#8-32 SCREW
BACKPLATE
ELECTRICAL
BOX
1D
7
1C
5
6
8
4
3
9
1E
1F
10
7
6
5
3
5
4
9
8
10
10
