Matrix Orbital LCD2041 - Manual (Page 7)

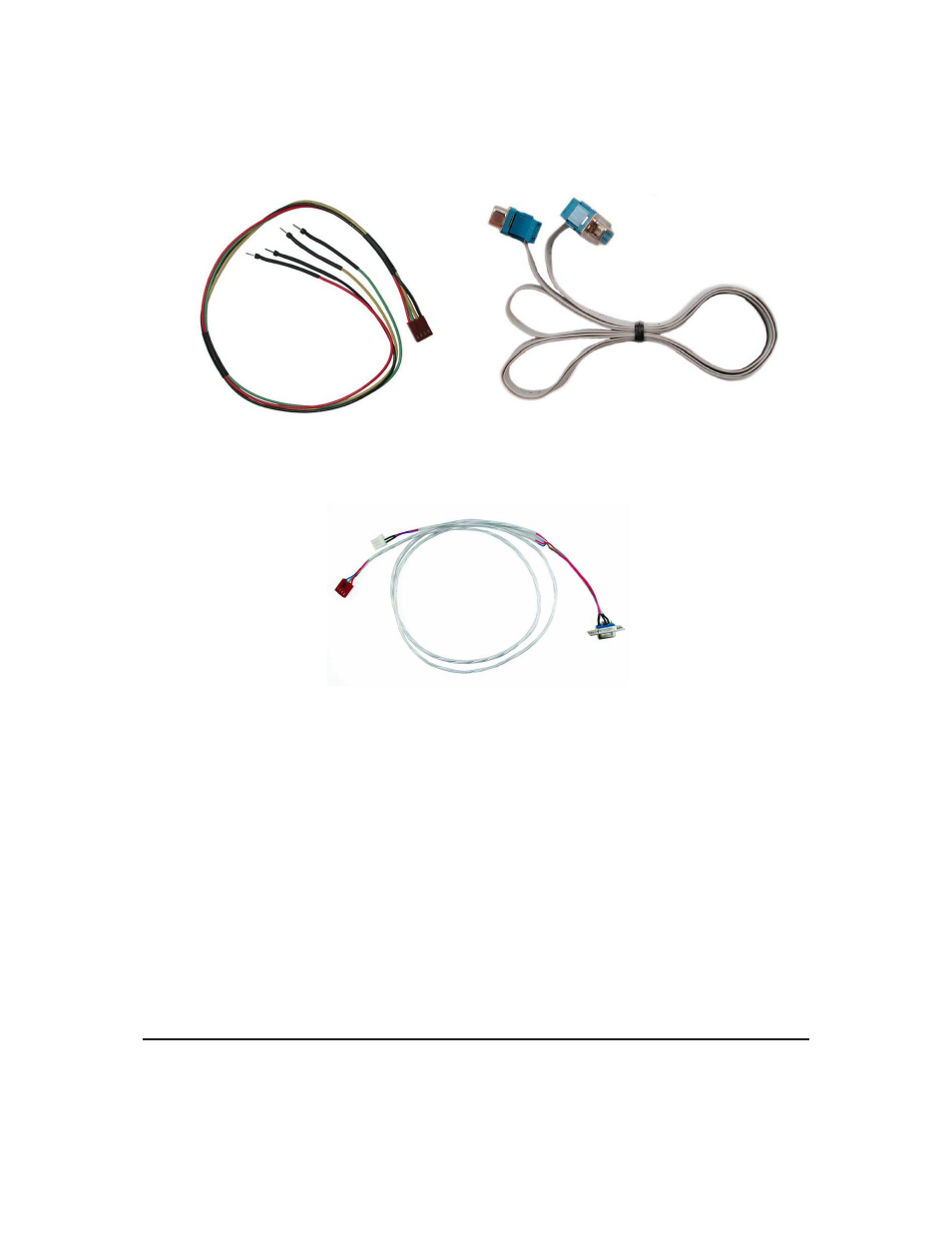

Figure 5: Breadboard Cable
Figure 6: Serial Cable 4FT
Figure 7: Communication and 5V Power Cable
1.3 Features
• 20 column by 4 line alphanumeric liquid crystal display
• Selectable communication protocol, serial at RS-232 or TTL levels or I
2 C
• Three, 5V -20mA, general purpose outputs for a variety of applications
• Lightning fast communication speeds, up to 57.6 kbps for RS-232 and 100 kbps for I
2 C
• Default 19.2 kbps serial communication speed
Matrix Orbital LCD2041 3
