3.1 General

Text is displayed on the display using the built in 5x7 dot matrix font, in addition to up to 8 user defined

characters.

3.2 The built in Character Font

The display includes a built in 5x7 dot matrix font with the full range of ASCII characters plus a variety

of extended characters, as shown in the Figure below.

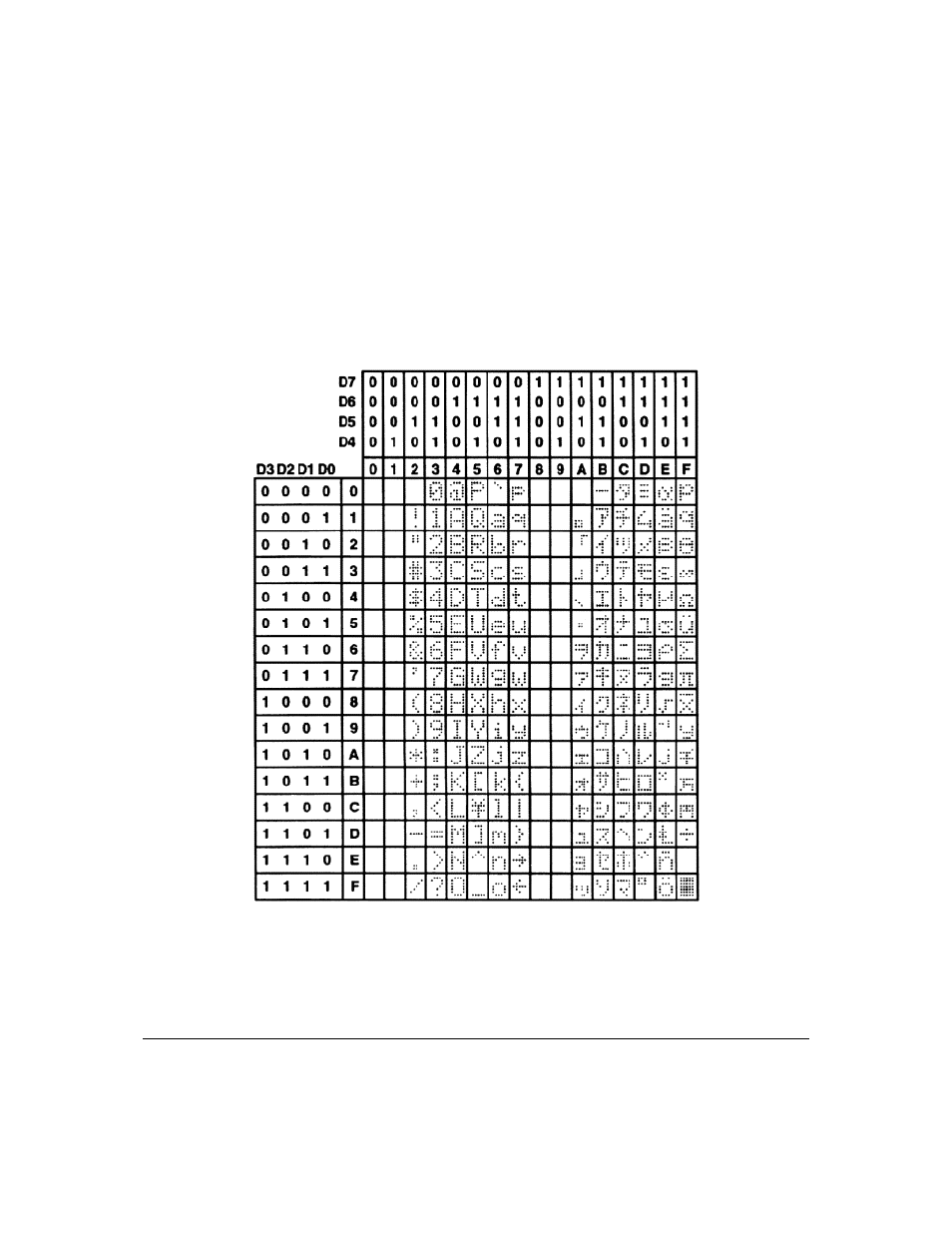

Figure 19: Character Set

In addition to the built in characters, users may define up to 8 special characters which, once defined,

occupy positions 0x00 to 0x07 in the above chart. The display does not have provision to download other

Matrix Orbital

LCD2041
