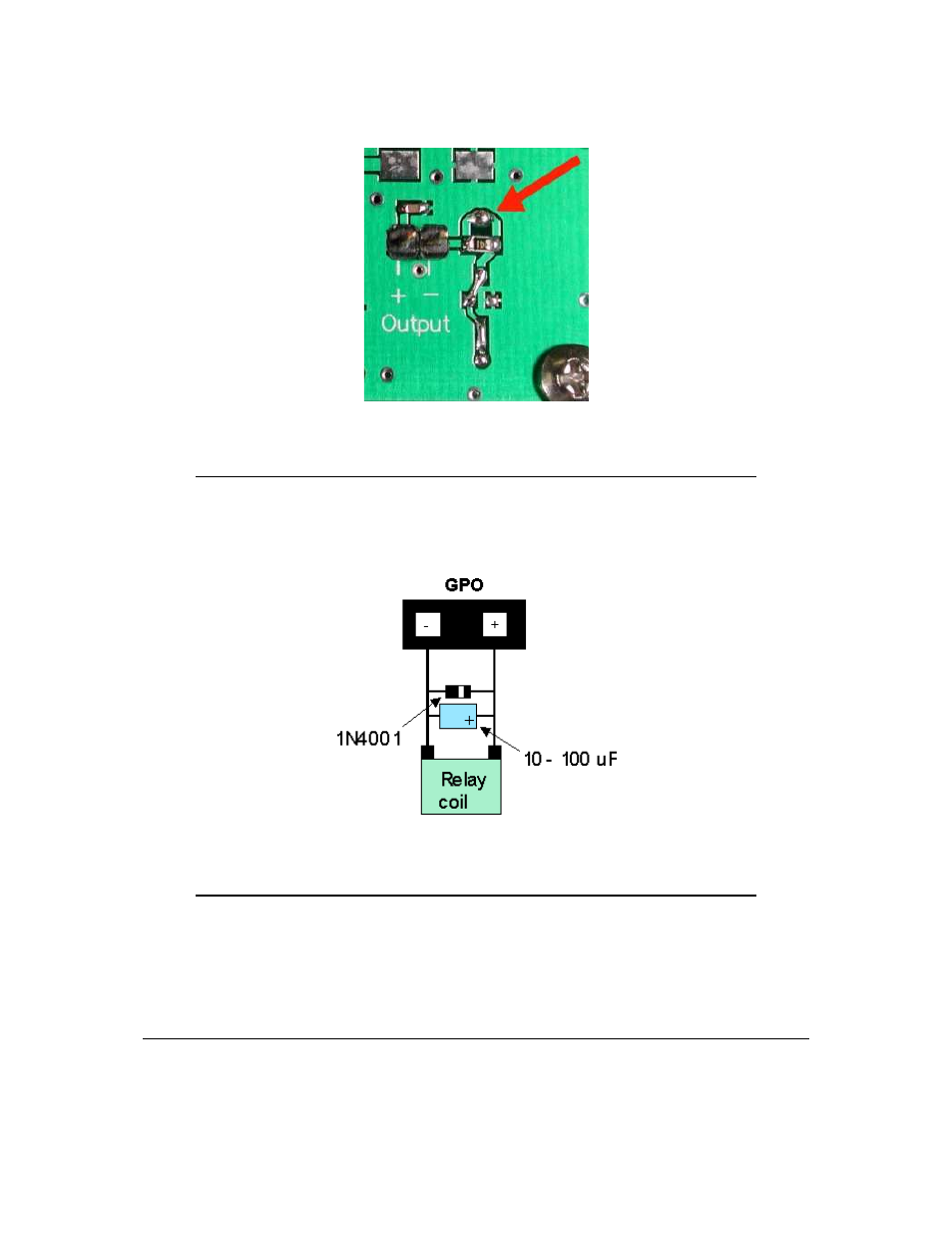

Figure 17: Bypassing 240 ohm Resistor
NOTE The GPOs do not have any over current or over / under voltage protection so care
must be taken when using them. For instance if the external device is a relay it must be fully
clamped using a diode and capacitor to absorb any generated back electro-motive force or
“EMF”.
Figure 18: Clamping a Relay
3 Displaying Text
This chapter describes the various text-display commands in detail. Before issuing commands to the
LCD2041 please read sections 6.2 and 6.3.
Matrix Orbital LCD2041 12
