LK202-25 rev 3 9
2.1.1.1 Five Volt Modules
If the LK202-25 is used in a PC it is tempting to plug a spare power connector into the unit. Don't do
this! Wiring for the PC power connector and that required for the LK202-25 are different as shown in
Figure 2-3 below.
PC w iring
Display module w iring
+5 V
+5 V
GND
GND
+12 V

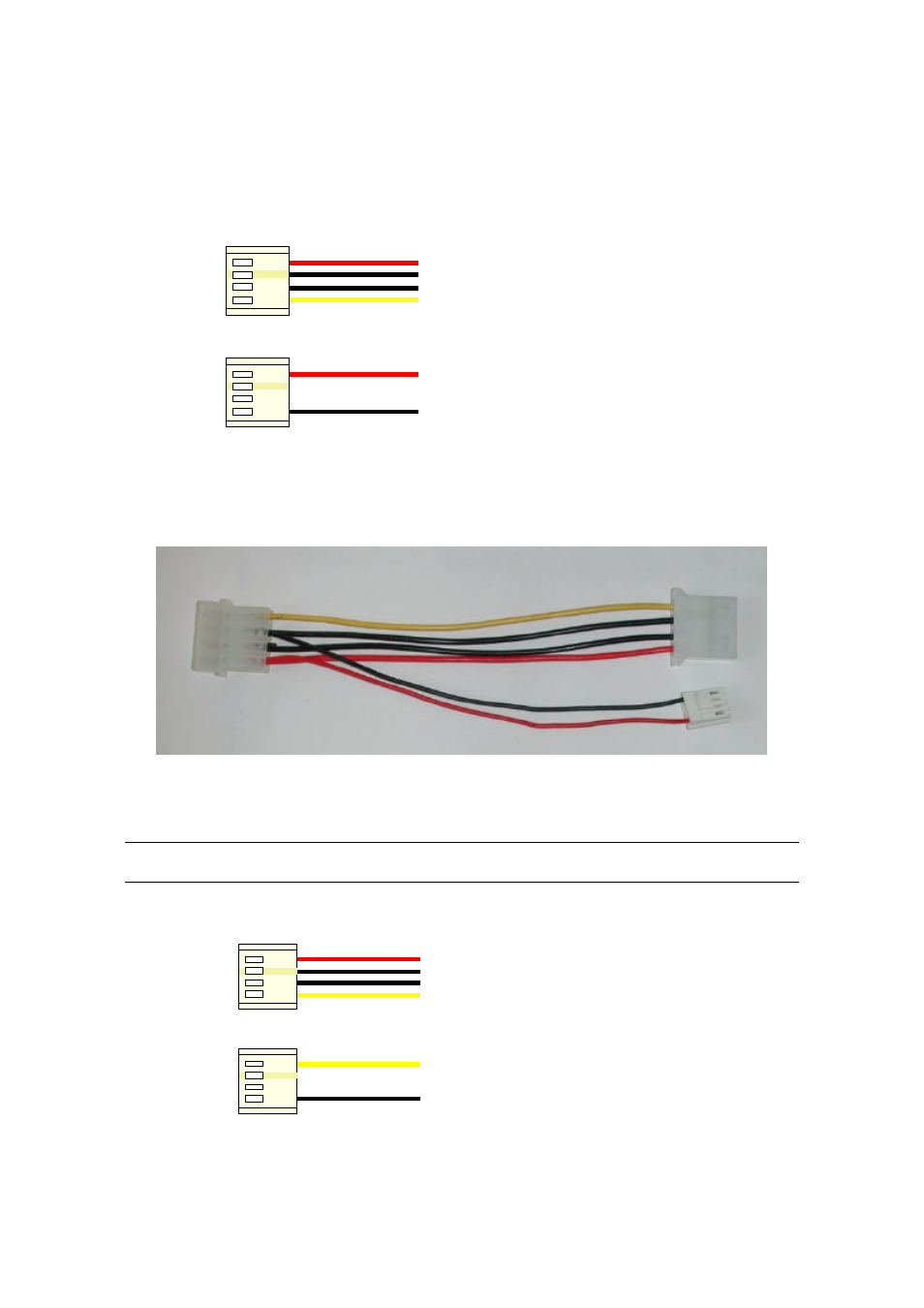

Figure 2-3 Power Connector wiring differences
If you don't want to modify cable wiring yourself, Matrix Orbital can supply an adapter cable designed to
use with the LK202-25 when it's installed in a PC. The cable is wired as shown in Figure 2-4 below. Note
that this cable does not provide connections for I
2
C.
Figure 2-4 Five volt Power Cable
2.1.1.2 Wide Voltage Range Modules
Note: Do not use this cable unless your display module has the "wide voltage range" option (option V).
Use of the 12 volt power cable with 5 volt modules will damage the module.
The 12 volt power cable is designed for use with wide voltage range display modules mounted in a PC.
Wiring required for the 12 volt power connector is shown in Figure 2-5 below.
PC w iring
Display module w iring
+5 V
+ 12 V
G ND
GND
+12 V
Figure 2-5 Wiring for 12 volt modules
