3. Displaying Text

This chapter describes the various text-display commands in detail. A quick reference summary of all text
commands is found in section 7.4.

3.1 General

Text is displayed on the LK202-25 using the built-in 5 x 7 dot matrix font (plus up to 8 user-defined
characters.

3.2 The Built-In Character Font

The LK202-25 includes a built-in 5 x 7 dot matrix font with the full range of ASCII characters plus a
variety of extended characters, as shown in Figure 3-1.

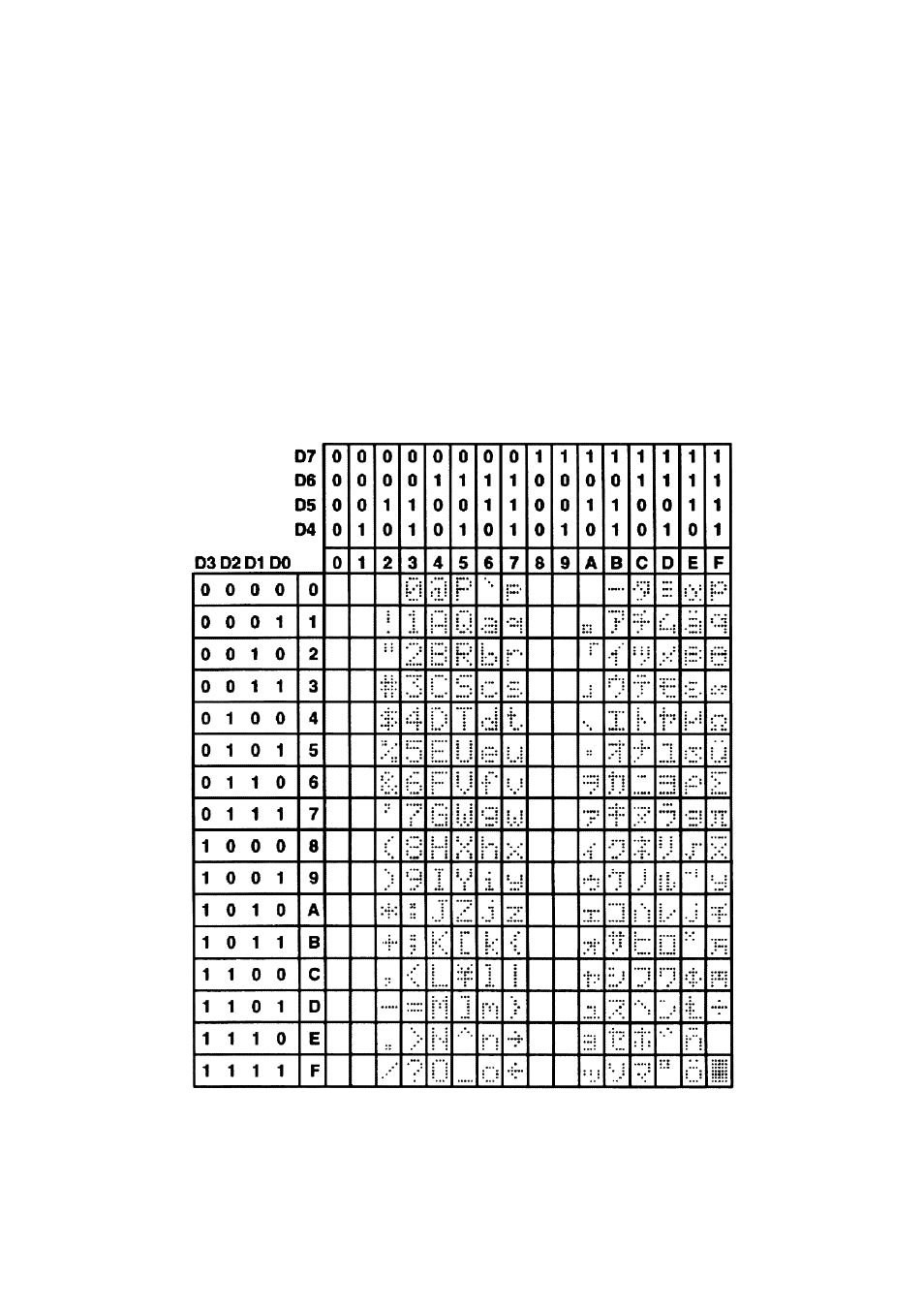

Figure 3-1 Character Set
