Section 1. Features and Specifications
3
ASCII “R” will be transmitted. Data is not cleared from the memory buffer until a Release
Command is received. The Reader cannot read another card until the buffer is cleared, and the
green LED is lit.
CONFIGURATION
The Reader, LED Indicator, RJ11 Jack, pin numbers for the 9-pin connector, and the Power
Adaptor are shown in Figure 1-2. This Reader does not support PINPads.

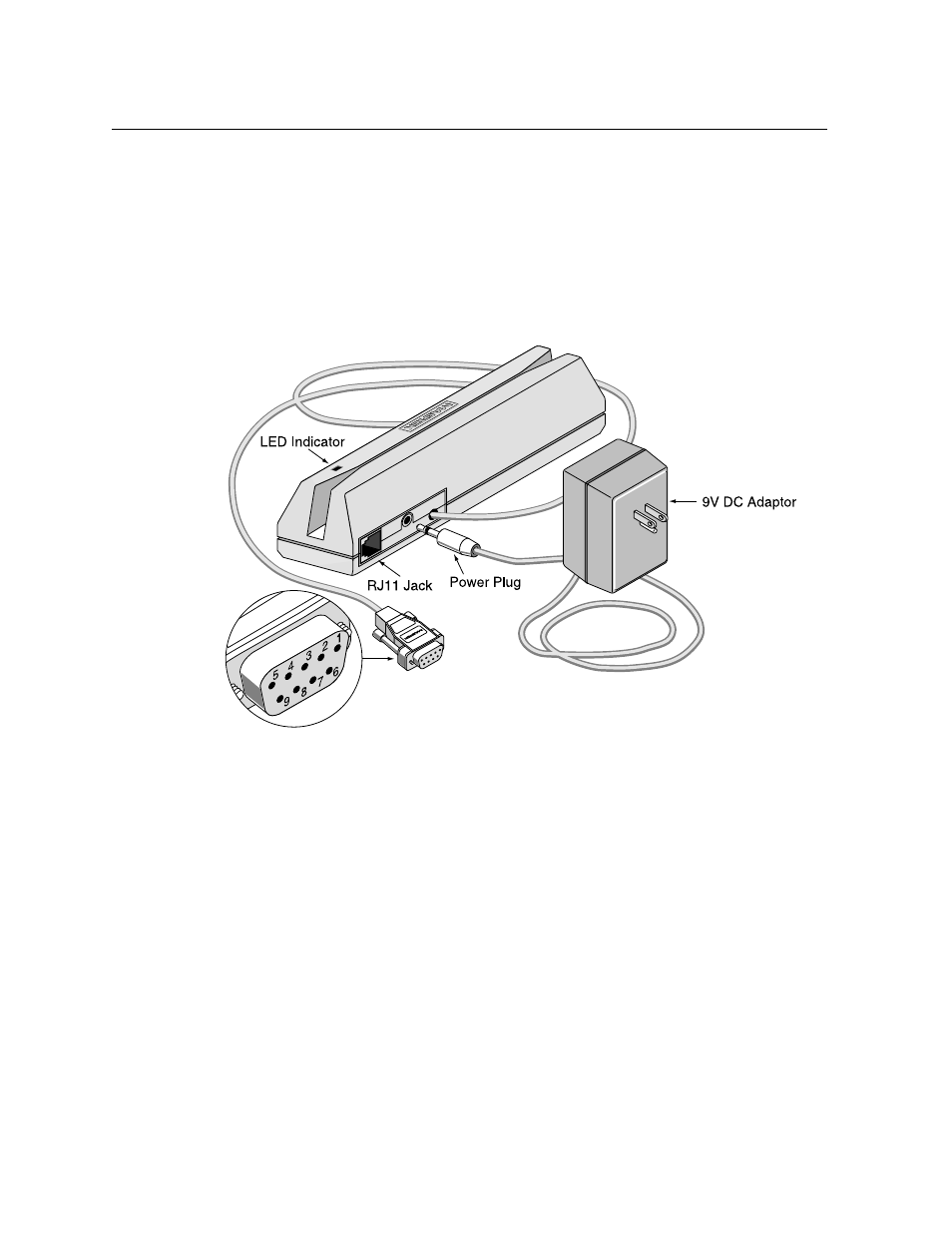

Figure 1-2. Reader Cable and Power Adaptor
RELATED DOCUMENTS
MagTek 99875125 The MagTek Device Drivers for Windows, Part Number
30037385, or 99510030 (Windows 9x/ME), or
99510031(Windows NT), 99510032 (Windows 2000/XP), or may
be used with the Port Powered Insertion Reader. The title of the
manual is MagTek Device Drivers For Windows Programming
Reference Manual.
ISO 7810 ID Cards – Physical Characteristics
ISO 7811-2 ID Cards – Recording Technique – Low Coercivity
ISO 7811-6 ID Cards – Recording Technique – High Coercivity
Available from ANSI; phone 212-642-4900; www.ansi.org
