SECTION 2. INSTALLATION

The hardware installation consists of plugging in the appropriate cables for the selected
configuration, setting the switches, and installing the required software.

HARDWARE INSTALLATION

The Reader is connected to a host computer and terminal as indicated in Figure 2-1. The RJ11
cable shown in the illustration is optional and may be either a 9- or 25-pin connection (see
Section 1).

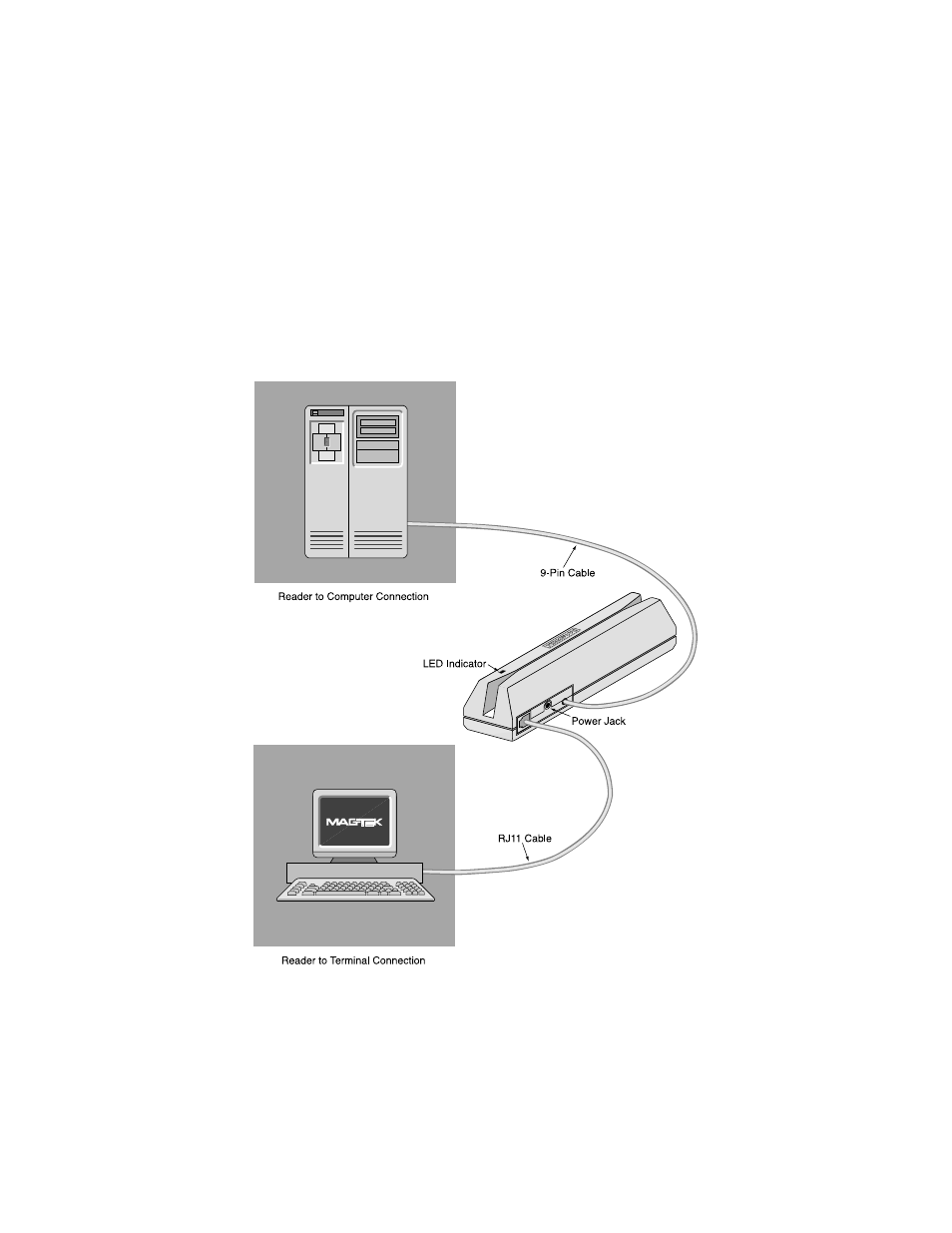

Figure 2-1. Reader Connections
