IntelliStripe 340, Desktop Motorized Reader
8
PLACEMENT AND CABLE CONNECTIONS
Refer to Figure 2-1, and place and connect the IntelliStripe 340 cabling as follows:
Ensure power to the PC is off.
1. Place the unit on a smooth flat surface convenient for operation.
2. Connect the 9-pin I/O connector to the PC.
3. Connect the 12 V power supply plug into the I/O cable.
4. Connect the AC cable into a wall receptacle.
5. Turn power on to the PC.
The I/O cable is shown in Figure 2-2 and the Pin List is shown in Table 2-1
Locking
Tabs

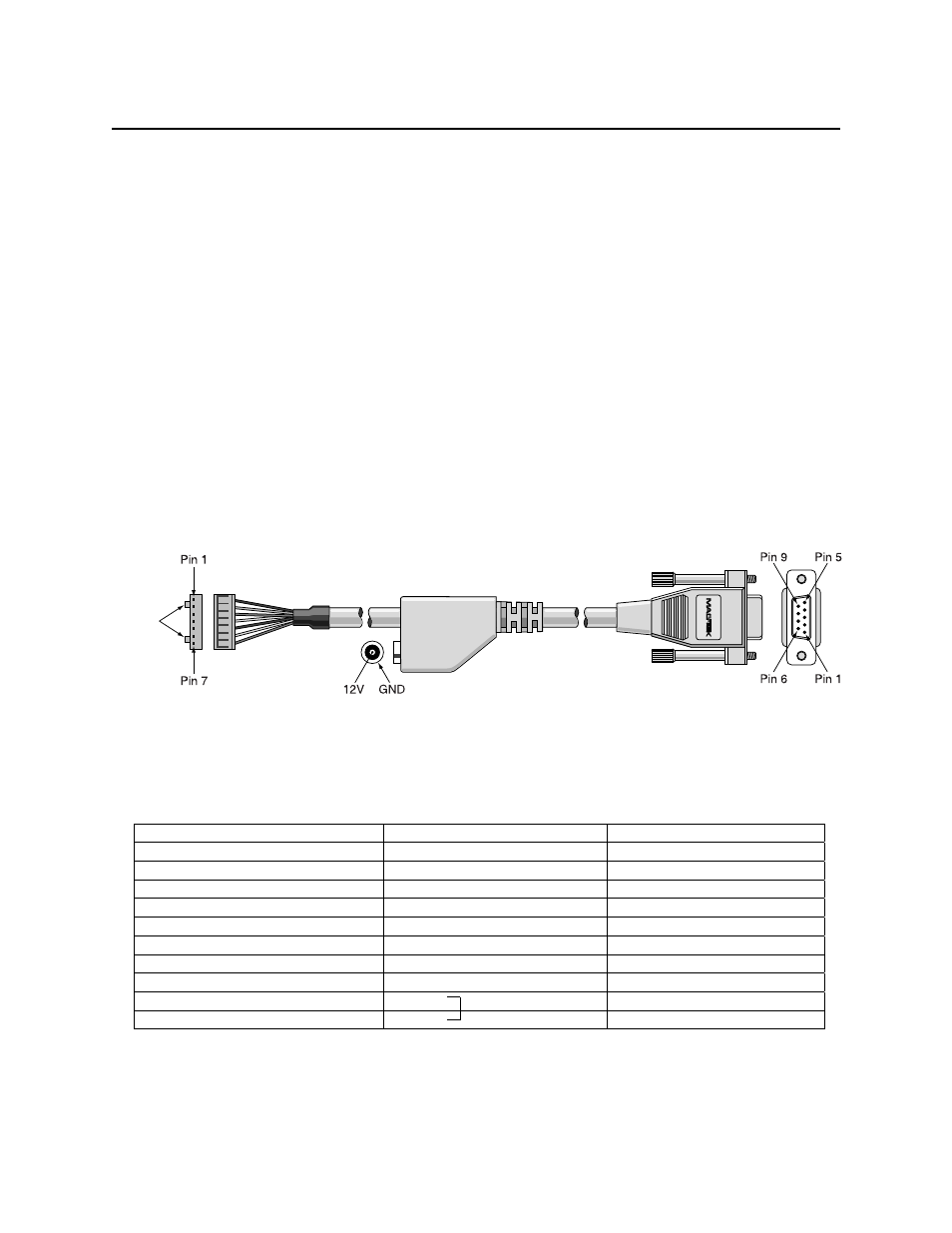

Figure 2-2. I/O Cable with Pin Locations, P/N 16051412
Table 2-1. Pin List for I/O Cable
Molex 7 Pin (51055-0700) DB-9 Female 2.5mm Power Jack
Pin Number Signal Name Pin Number Signal Name
1 TXD 2 RXD
2 +12V CENTER PIN +12V
3 PWR GND SHELL GND
4 RXD 3 TXD
5 RTS 8 CTS
6 CTS 7 RTS
7 SIGNAL GND 5 GND
6 DSR
4 DTR
