SECTION 2. INSTALLATION

The installation of the IntelliStripe 340 Desktop Motorized Reader consists of placing the unit on
a flat surface, plugging the I/O connector into the host serial port, and plugging the Power Supply
into the I/O cable and into a wall receptacle.

COMPONENTS

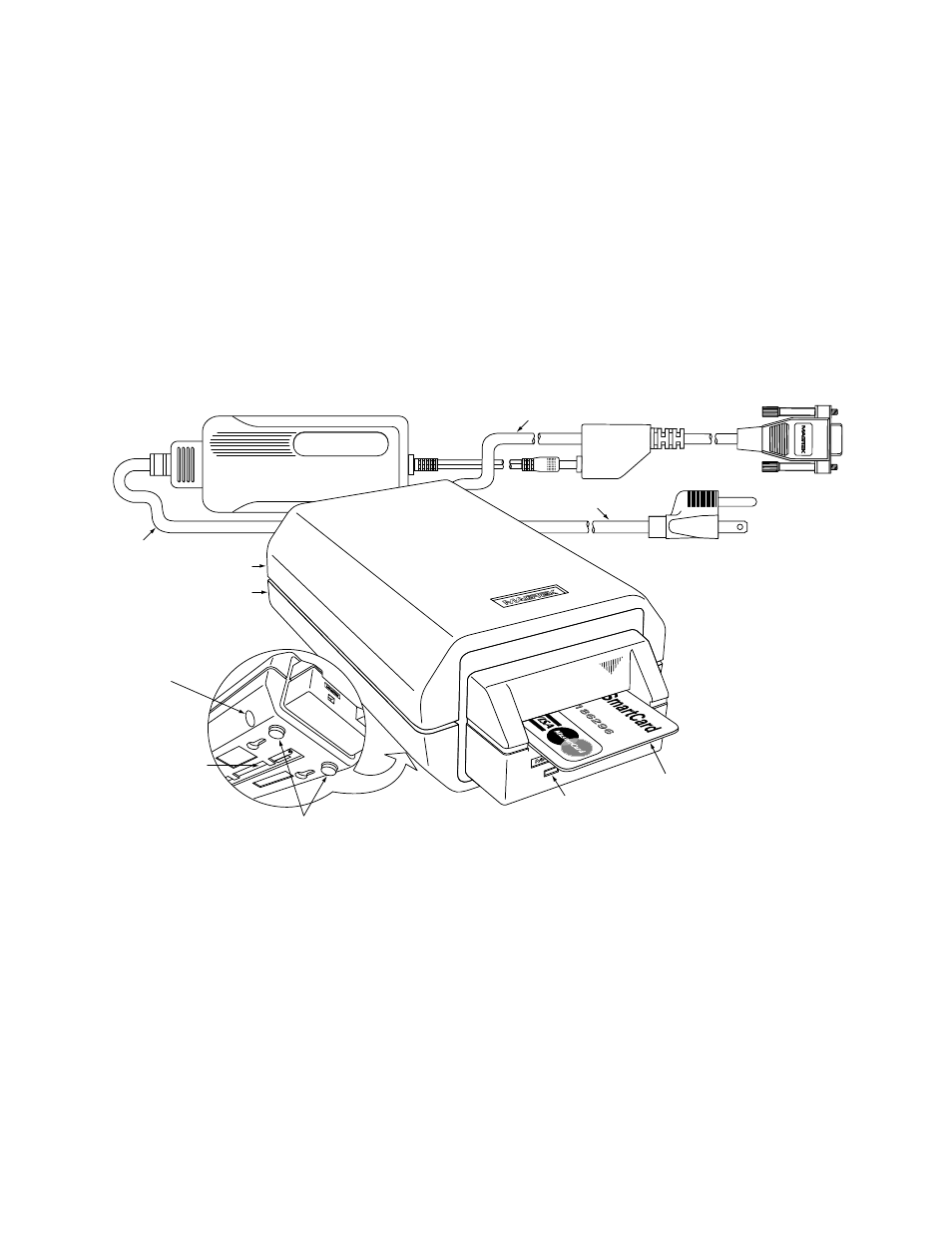

Components of the unit for installation are shown in Figure 2-1.

Stripe Down And
To The Right

LED

Screw Slots (4) For
Retaining Upper
And Lower Covers

Bottom View

Power Supply And Cable

Two Of Four
Foot Pads

Lower Cover

AC Cable

I/O Cable To
IntelliStripe 340

9 Pin Connector
To Host

3 Prong Connector

Upper Cover

Ejector Rod

Figure 2-1. IntelliStripe 340 Components
