Figure 3-2. ejector rod removal from storage, Figure 3-3. card removal – MagTek INTELLISTRIPE 380 USB/RS-232 User Manual

Page 26

IntelliStripe 380 USB/RS-232

1. Remove the Rear Panel Cover to access the Ejector Rod as indicated in Figure 3-2.

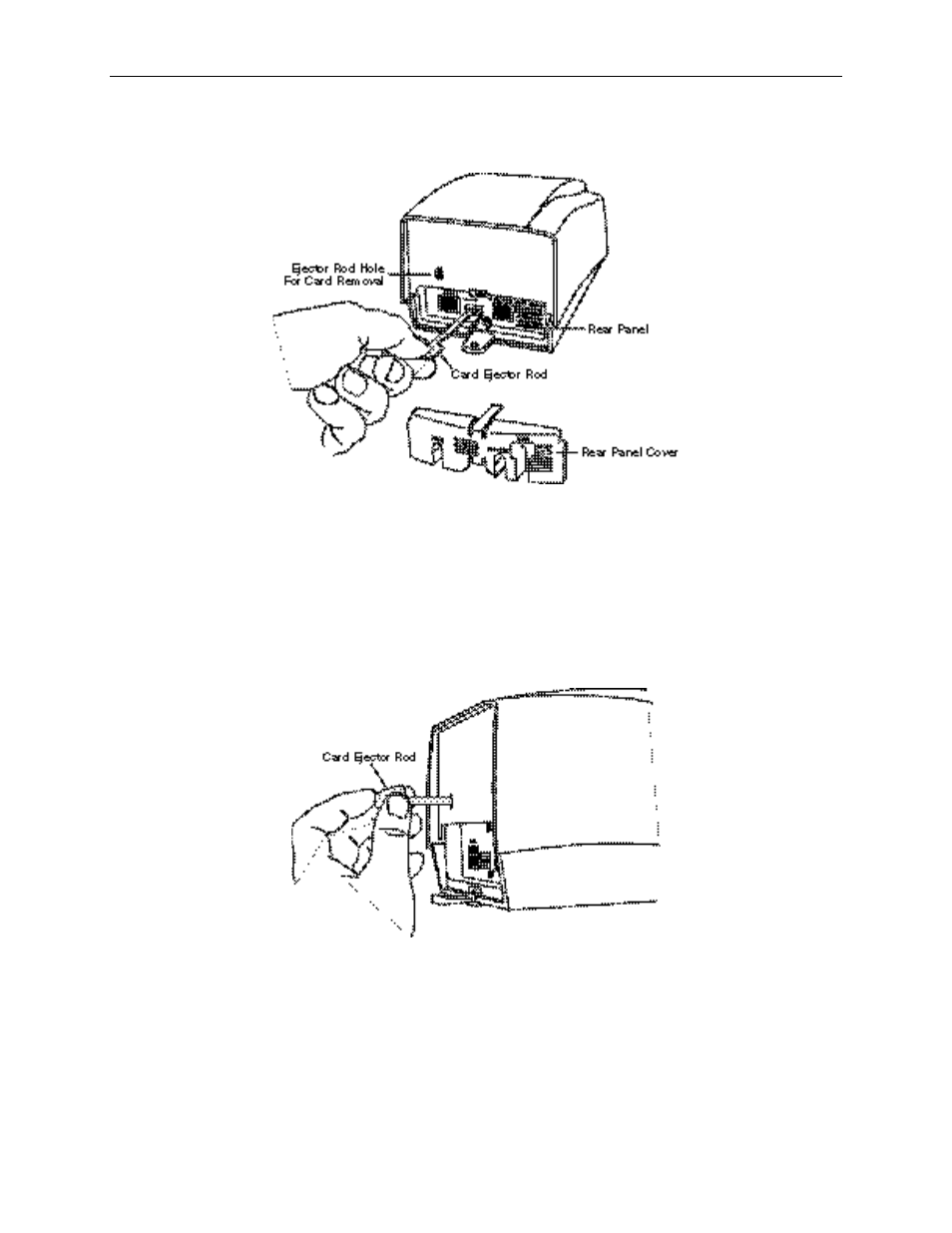

Figure 3-2. Ejector Rod Removal from Storage

2. Look into the Hole for Card Removal in the back of the unit, shown in Figure 3-2, to see the

jammed card. This will indicate the approximate position where the notch on the Ejector Rod
will be positioned with respect to the card.

3. Insert the Rod into the Hole for Card Removal, as shown in Figure 3-3 and push the Rod until

the card appears in the slot at the front of the unit.

Figure 3-3. Card Removal

4. Manually remove the card when it appears in the slot in the front of the unit.

5. Reconnect the power cord.
