Figure 2-3. rear panel and cover – MagTek INTELLISTRIPE 380 USB/RS-232 User Manual
Page 21
Section 2. Installation
13

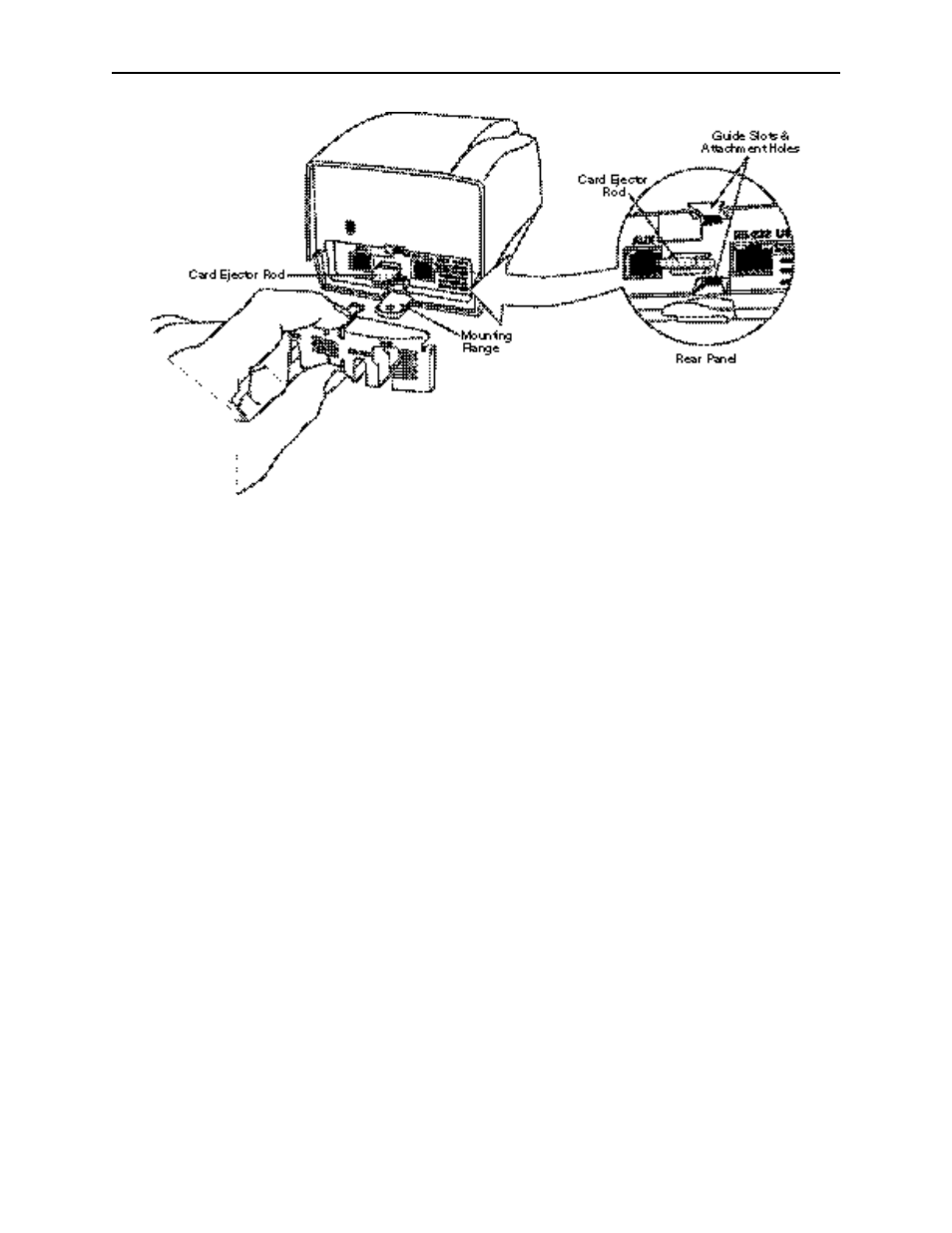

Figure 2-3. Rear Panel and Cover
Connect the Host PC cable (P/N 16051417) to the RS-232 connector on the IntelliStripe 380 as
shown in Figure 2-4 for the RS-232 connection.
Connect the Host PC Cable to the PC. Connect the Power Supply Cord (part of P/N 64300091)
to the Host PC cable. Connect the North American 100-240v power cord (P/N 71100001) to the
power supply.
Caution
Do not plug the power supply into a wall receptacle yet.
