Pan & tilt connection to control units

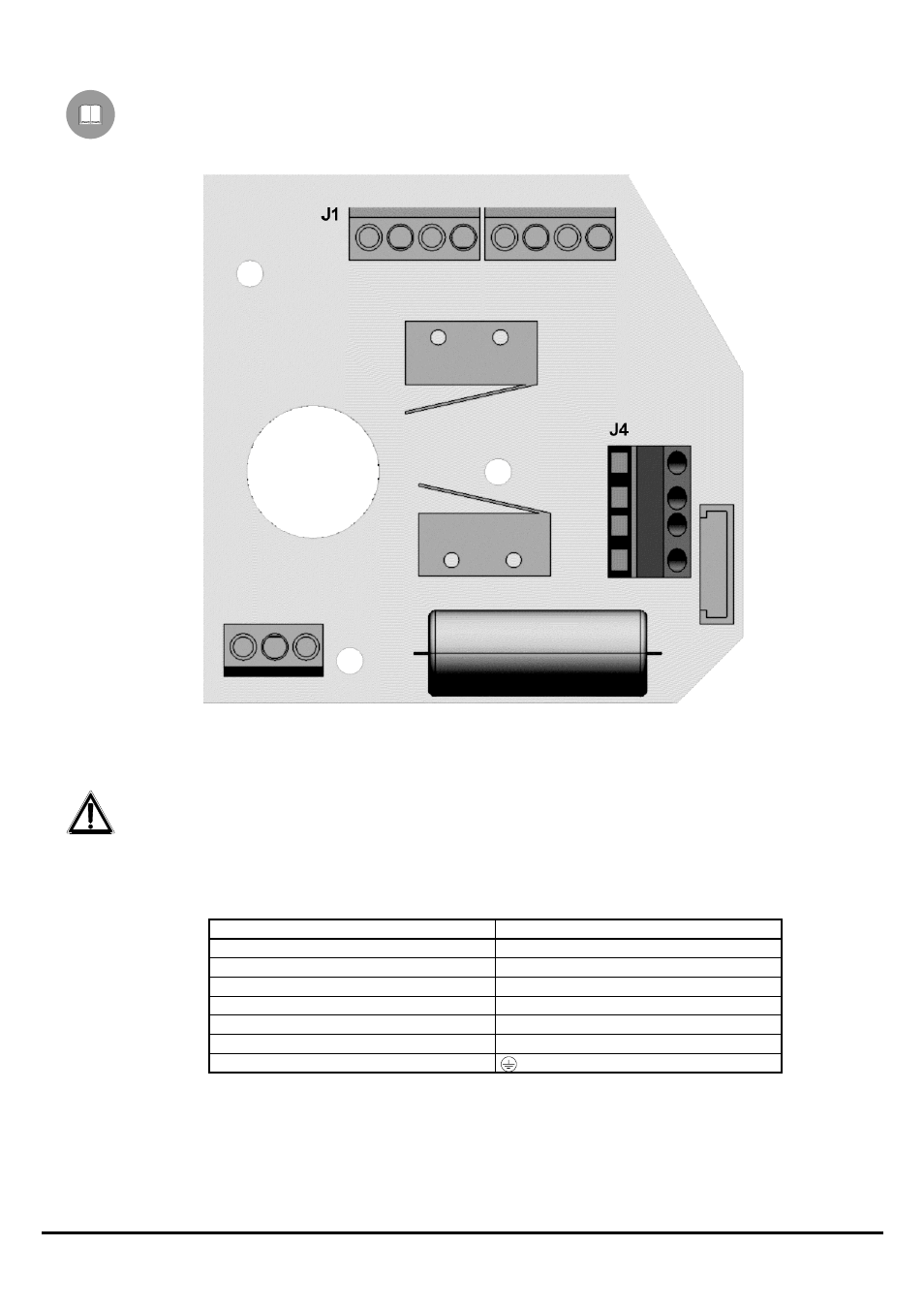

In the following drawing, identify the terminal block J1 in the lower printed circuit for the pan & tilt connection to
the control units:
Pan & tilt connection to CBZ220/CBZ24 keyboard
WARNING: before the connection, make sure that the output voltage CBZ220/CBZ24 keyboard corresponds
to pan & tilt voltage (Refer to the identification data of the keyboard and of the pan & tilt motor).
Where to operate: J1 terminal block in the upper printed circuit of the pan & tilt motor (see drawing)
Adjustments : connect the wires from the keyboard to the pan & tilt motor according to the following table:
CBZ220/CBZ24 output wires J1 terminal block (Pan & Tilt)
WHITE Com
BROWN Down
YELLOW Up
GREY Right
PINK Left
GREEN Auto
YELLOW/GREEN
