Town Mongolian Barbecue Ranges - Manual (Page 15)

(718) 388-5650 (800) 221-5032 except NY fax: (718) 388-5860 townfood.com
15
The thermocouple was replaced, is snug but the pilot burner will still not stay lit.
If all else fails, change the head on the safety control. This procedure should be performed only by a
qualified gas service mechanic or licensed gas plumber. Gas to the unit must be shut off before attempting
this procedure.

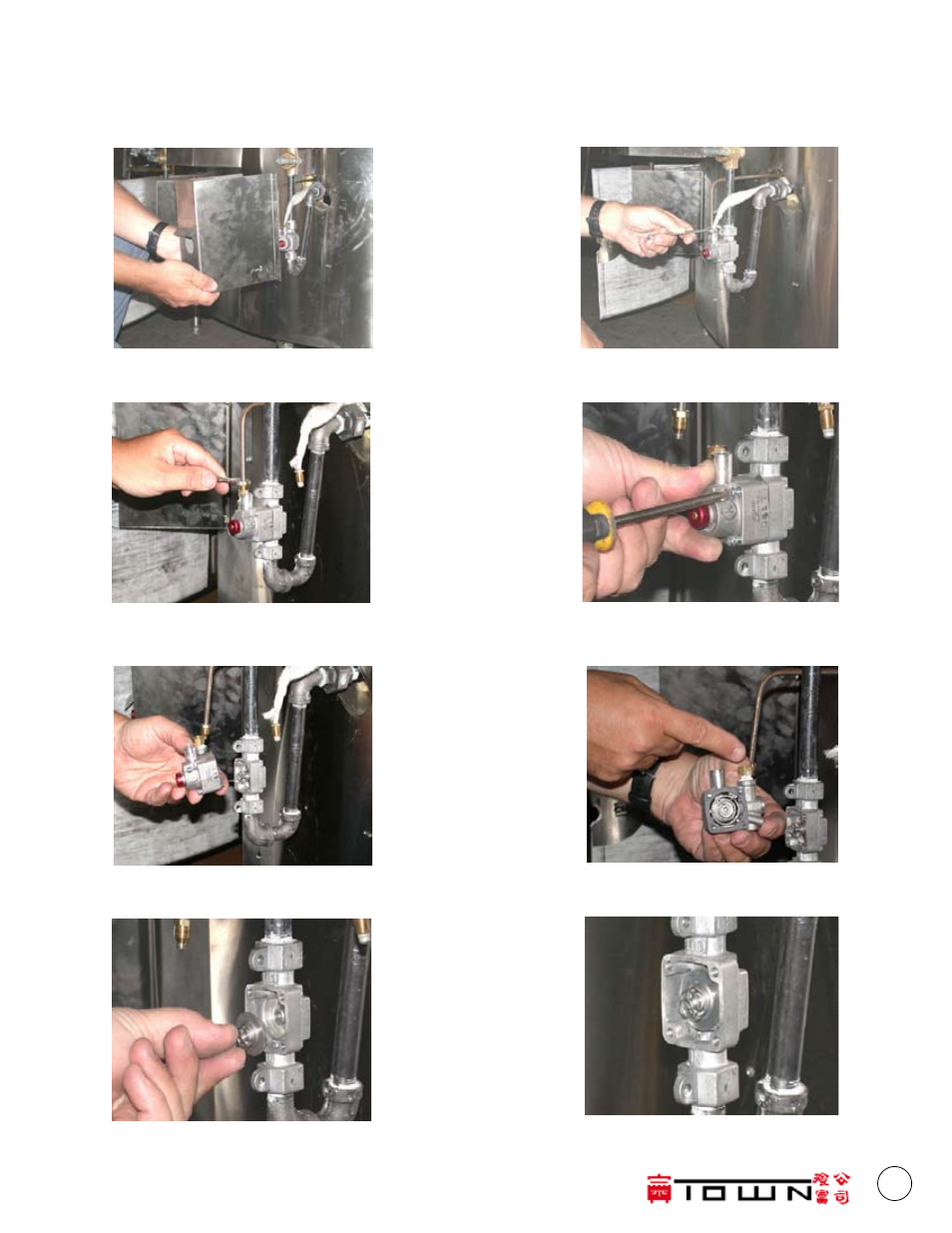

1. Remove the valve/control cover 2. Using a 3/8" wrench, remove the brass
thermocouple fitting from the safety control.
3. Using a 7/16" wrench, remove the brass
fitting from the pilot gas line.
4. Remove the screws from the safety head.
5. Remove the safety head. 6. Remove brass adaptor attached to the safety
head and install on the new head.
7. Remove and replace the spring/magnet
assembly.
8. New spring/magnet assembly installed.
