Page 70

70
|
KIV-700

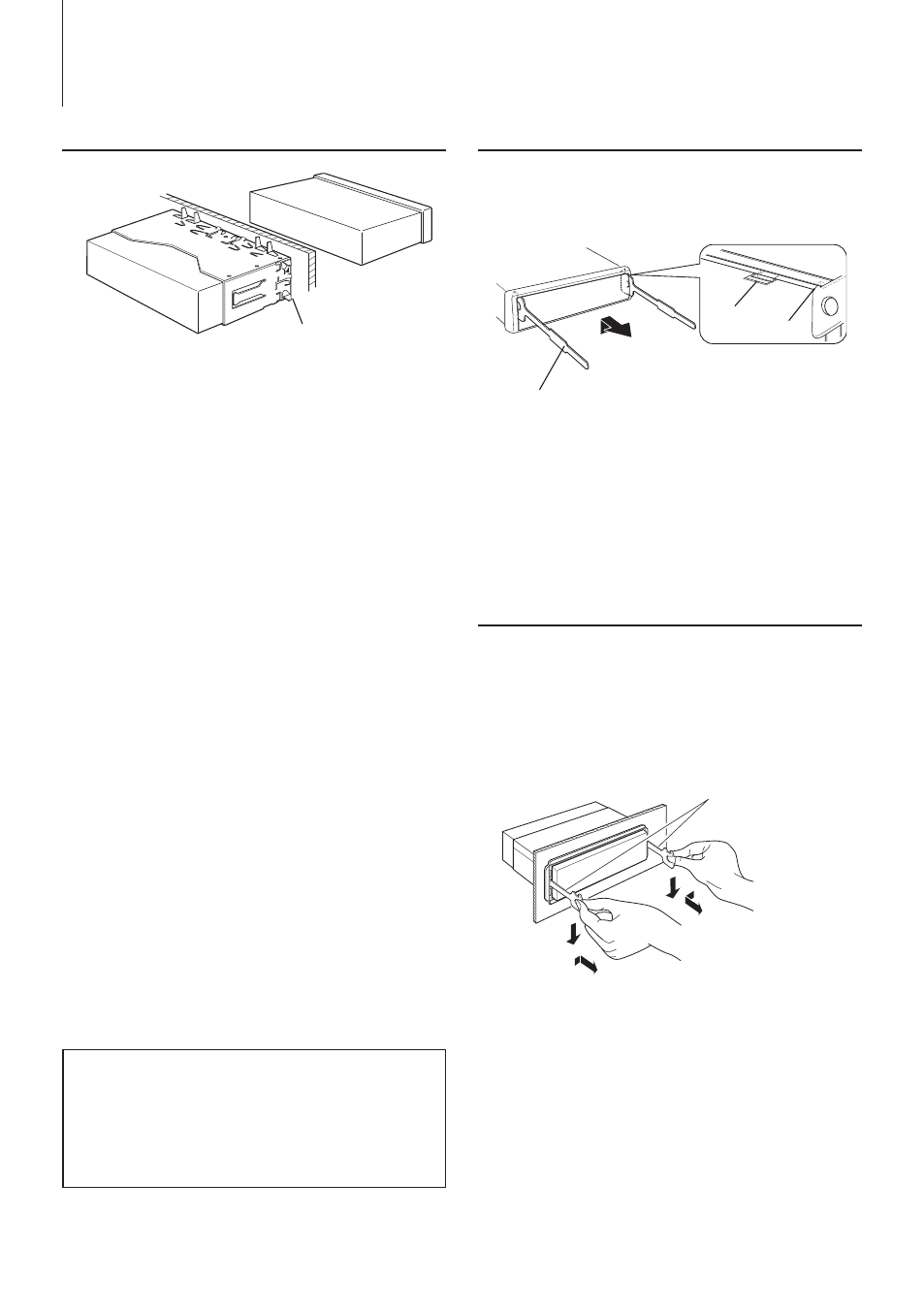

Removing the hard rubber frame
1
Engage the catch pins on the removal tool and
remove the two locks on the upper level.
Lift up and pull the frame forward as shown in the
figure.
Catch
Lock
Accessory 2
Removal tool
2
When the upper level is removed, remove the
lower two locations.
⁄
• The frame can be removed from the bottom side in the
same manner.
Removing the Unit
1
Refer to the section frame> and then remove the hard rubber frame. 2 Insert the two removal tools deeply into the slots on each side, as shown. 3 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside. Accessory 2 ¤ • Be careful to avoid injury from the catch pins on the removal tool. 4 Pull the unit all the way out with your hands, being careful not to drop it. Installation/Removing the Unit Installation Bend the tabs of the mounting ⁄ • Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound ¤ CAUTION Install this unit in the console of your vehicle. shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.
sleeve with a screwdriver or similar
utensil and attach it in place.
may skip).
Do not touch the metal part of this unit during and
