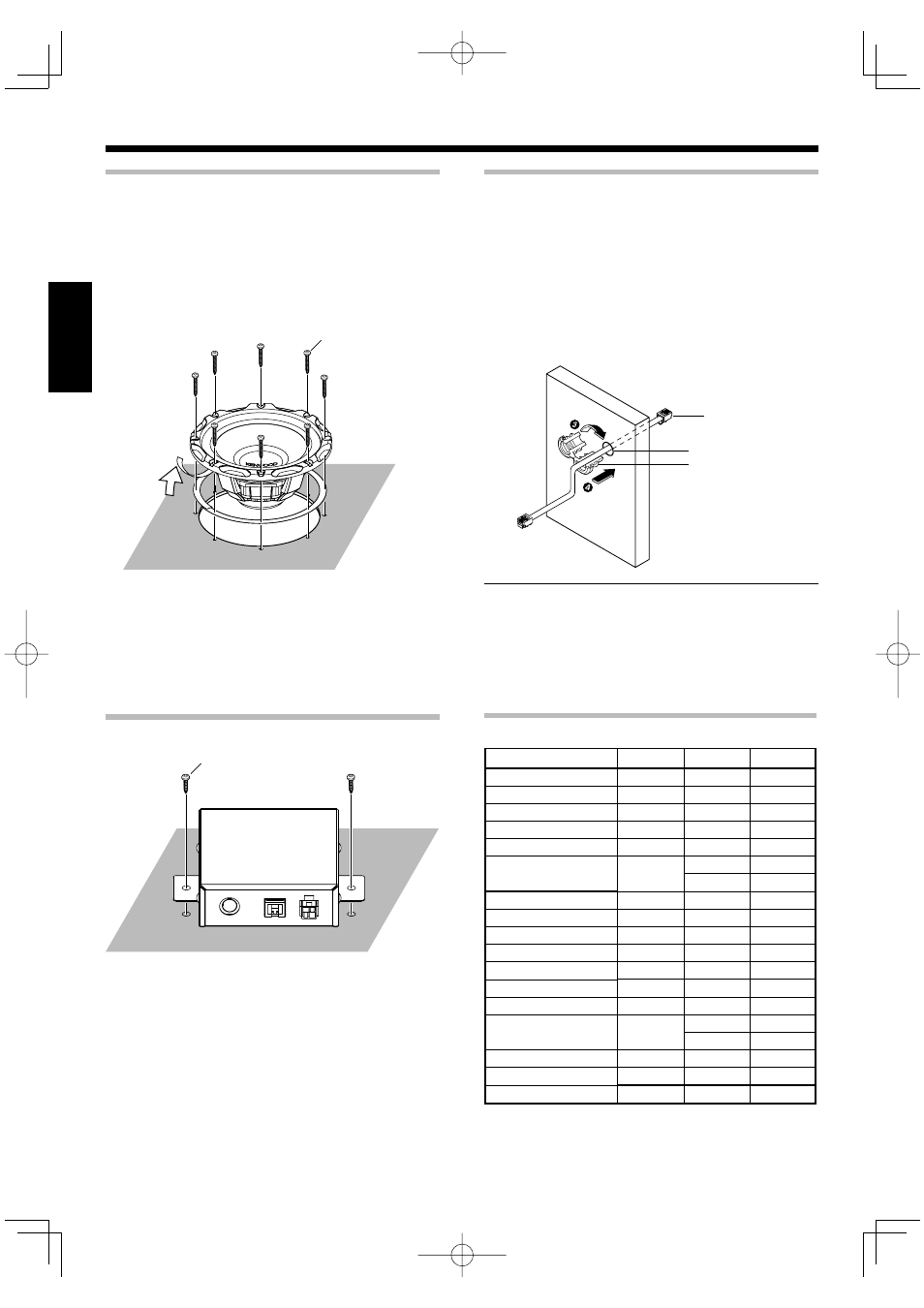

Installation

1 Place the supplied template on the panel and

then mark the hole positions.

2 Cut open a large hole and make screw holes.
3 Peel off the covering sheet from the spacer, and

attach the spacer on the back of the speaker
flange so that the flange is completely covered.

Fixing the Subwoofer

Fixing the Subwoofer

7 Screw (ø 4 x 16) x 2

Fixing the Control box

Fixing the Control box

POWER

REMOTE

LINK

How to use the Cord bush

How to use the Cord bush

When you use a box for Woofer, use the attached Cord bush.

ø 17.5

4 Link cable

5 Cord bush

1 On the Woofer box, make a hole (ø 17.5) for fitting

the Cord bush

5.

2 Pass the Link cable 4 through the hole on the

Woofer box.

3 Attach the Cord bush 5 on an appropriate posi-

tion of the Link cable

4.

4 Push the Cord bush 5 into the hole on the Woofer

box.

Notes:
• Fit the Cord bush

5 firmly because clearance will lead to air

leak.

• Be careful not to pinch the Link cable

4 with the surface of the

Cord bush

5.

6 Screw (ø 4 x 35) x 8

SYMBOL

UNIT

VALUE

Nominal impedance

Z

Ω

4

DC resistance

Revc

Ω

3.4

Voice coil inductance

Levc

mH

0.56

Piston area

Sd

sq.m

0.052

Force factor

BL

T.m

9.53

Volume acoustic compliance Vas

Liters

97.75

cu.ft

3.45

Moving mass

Mms

g

105.6

Resonance frequency

Fs

Hz

30.9

Mechanical Q factor

Qms

9.59

Electrical Q factor

Qes

0.77

Total Q factor

Qts

0.71

Peak power

W

800

Peak excursion

Xmax

mm

4.6

Displacement

cc

5,190

cu.ft

0.183

Mounting depth

mm (in.)

150 (5-7/8)

Weight of magnet

g (oz)

740 (26.1)

Voice coil diameter

mm (in.)

50 (1-15/16)
