English | 19

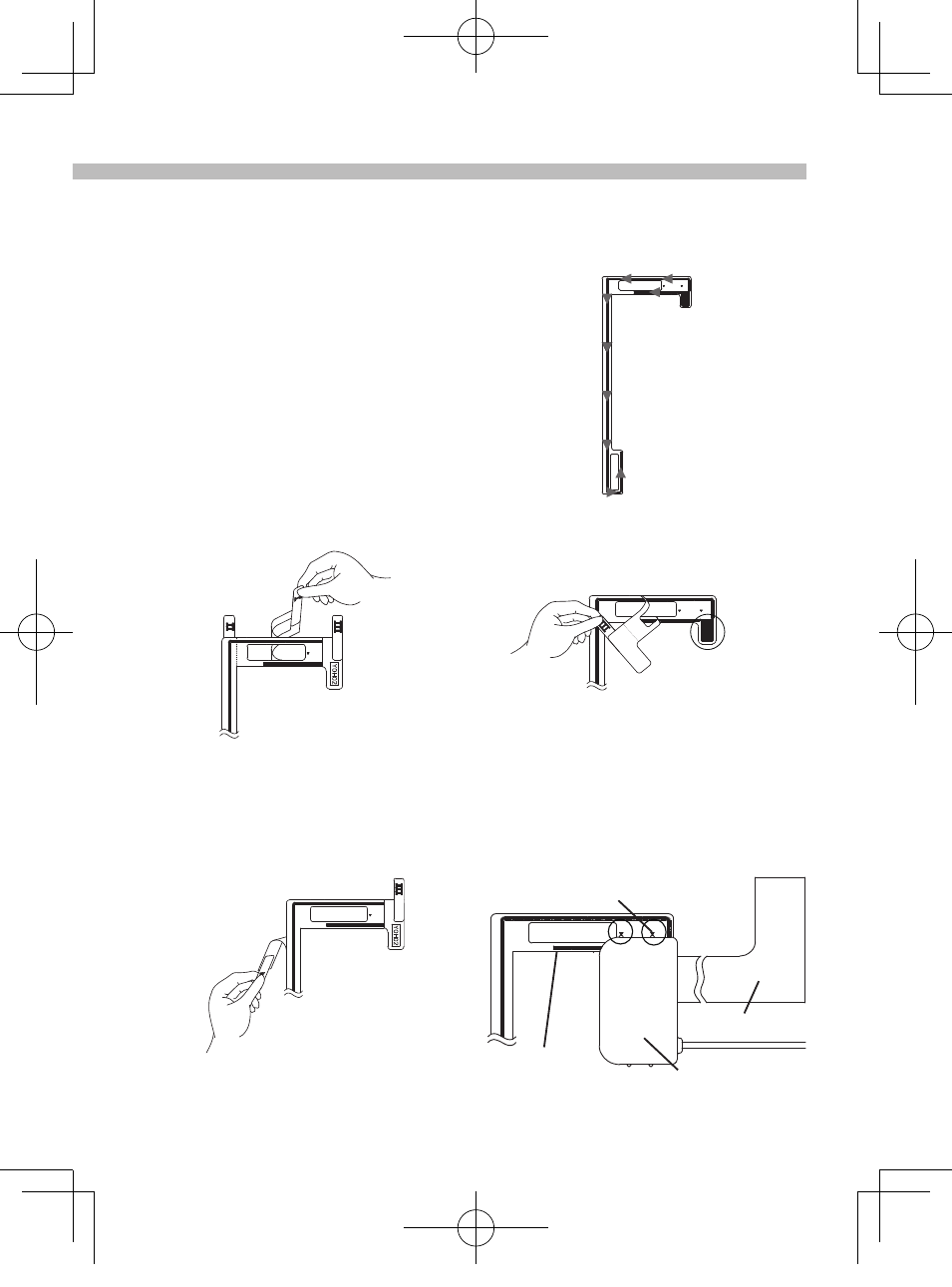

Installing the Digital radio antenna
Antenna Installation
1
Check the installation location.
2
Clean the area where antenna film
(Accessory 6), amplifier unit (Accessory
7
), and earth sheet are pasted with the
included cleaner (Accessory 9).
The coating on the metal surface need
not be removed.
• Wait until the glass surface is
completely dry before pasting.
• If the glass surface is cold, such as
during winter, warm it with defroster or
dryer.
3
Remove the separator (tag I) of antenna
film horizontally and paste the antenna
on the front glass.
• Remove the separator gently.
• Do not touch the pasting surface
(adhesive side) of the antenna film.
4
Remove the separator (tag II) of antenna
film vertically and paste the antenna
gently while applying pressure.
5
After pasting, rub the element in the
glass surface in the direction of the arrow
shown in the figure to bond it.
6
Remove the application film (tag III).
• Do not touch the feeder terminal of
the element. Also, do not apply any
glass cleaner.
Feeder terminal
7
Match the protrusion of the amplifier
with the
5 on the antenna film and
paste.
• Do not touch the feeder terminal or
the pasting surface (adhesive side) of
the amplifier.
• When installing the antenna on the
right side
Accessory 7
Accessory 6
Earth sheet
Match the protrusion with 5
