Dake Model SE 712 - Manual (Page 8)

- 7
(1). Tighten all locks before operation.
(2).

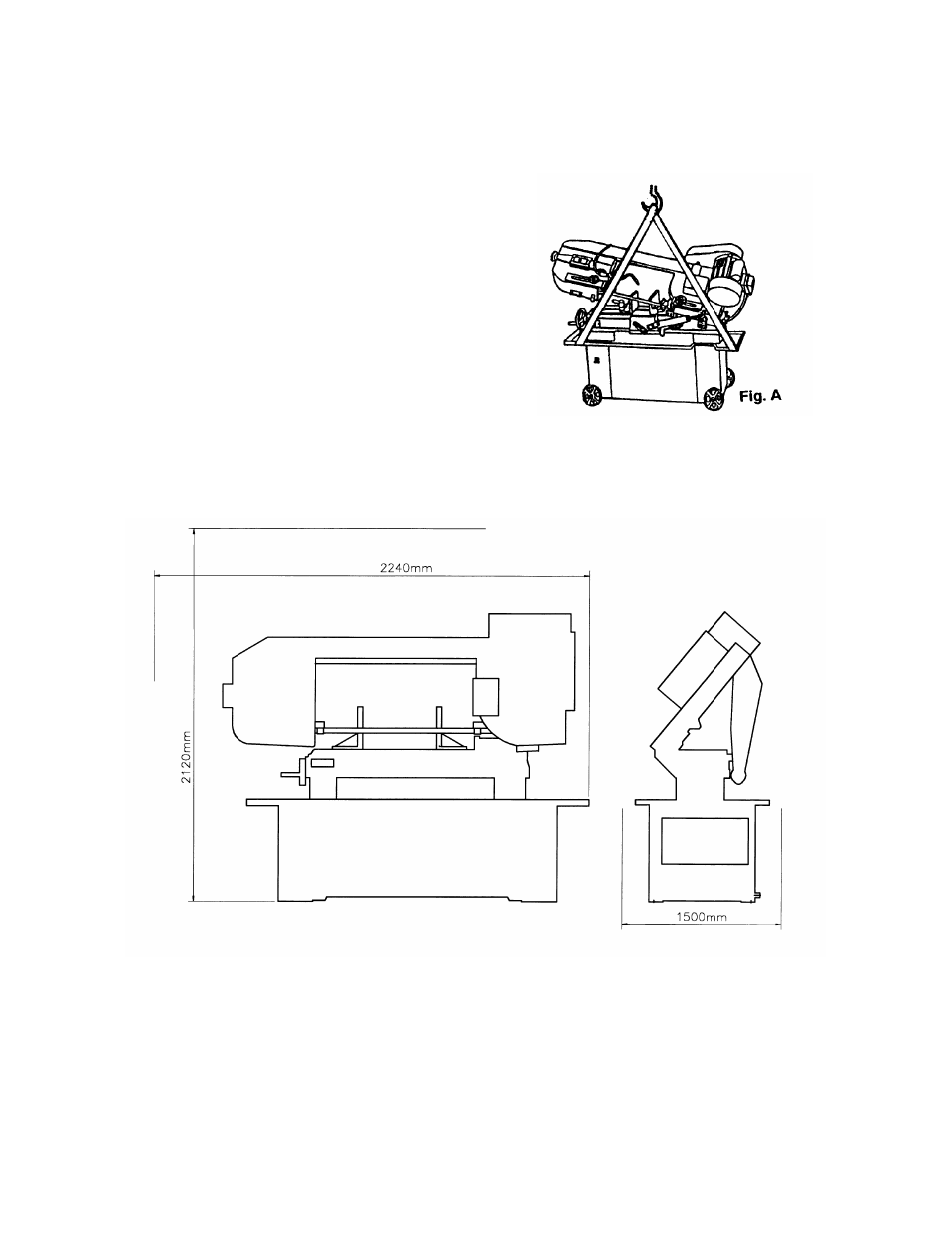

ALWAYS Keep proper footing & balance while moving this 125kgs machine, and
only use heavy duty fiber belt to lift the machine as Fig. A
(3). TURN OFF the power before wiring, & be
sure machine in proper grounding, Overload &
circuit breaker is recommended for safety
wiring.
(4). CHECK carefully if the saw blade is running
in
Counter-clockwise direction if not , reverse the
Wiring per circuit diagram then repeats the
running
Test.
(5).
KEEP machine always out from sun, dust, wet, raining area.
3. MINIMUM ROOM SPACE FOR MACHINE OPERATION
4. MAKE PROPER TOOTH SELECTION
For maximum cutting efficiency and lowest cost per cut, it is important to select the
blade with the right number of teeth per inch (TPI) for the material being cut. The material
size and shape dictate tooth selection.
