REMARK:
1. Adjust the tension of blade until the back of the blade(A) against the blade wheel
(front) lightly.
2. Be sure the nut (E) is tightened.
3. Turn the eccentric shaft(B) counterclockwise, when the bearing(D) touches the saw
blade properly, tighten the nut(E).
4. To adjust, loosen set screw(F) and move the blade adjustable up or down until it
lightly
Touches the back of the blade(A).
5. Repeat 1. 2, 3, and 4 steps to adjust the other side's blade guide bearings(G).
6. Correct the base and blade to be a vertical position with a scale. If necessary,
loosen set screw(F).
7. Set down the blade frame, correct the jaw vise(H) and blade to be a vertical
position with a scale then tighten the set screws (I).
8. Loosen set screw (K), move front jaw vise (J) to against rear jaw vise(H) tightly.
Finish correcting by tightening the set screw(K).

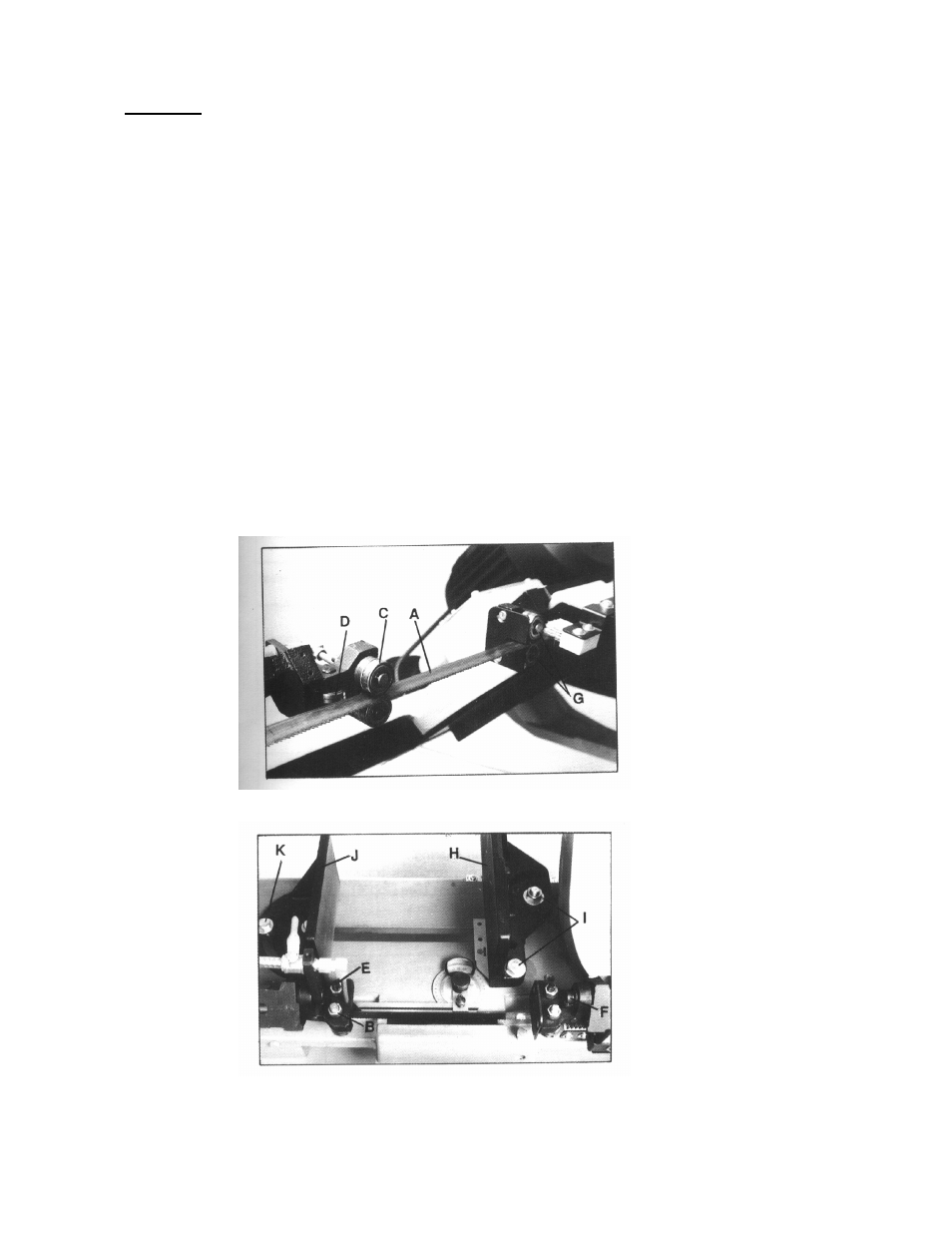

Fig. 1
Fig. 2
