Dake Utility - Bench User Manual

Page 7

background image

6

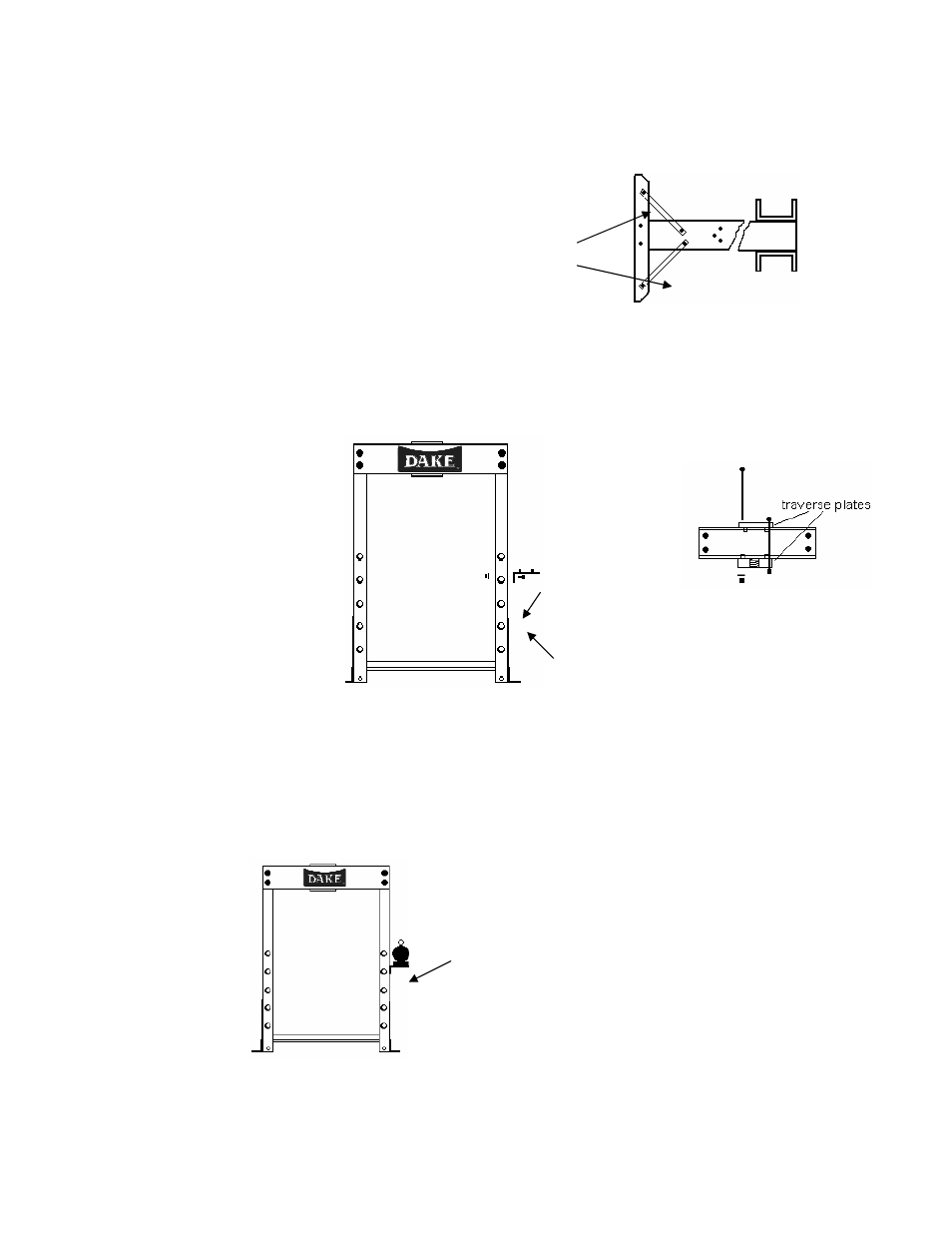

STEP 2.

Floor model: (Bench model skip this step)

Install the diagonal support straps. Using 4 M8 x 25mm bolts, nuts and washers. Install the
support straps to the inside of the base angles then to the frame as shown. Finger tighten.

Diagonal support

straps

STEP 3:

Carefully stand the unit upright. Making sure all components are square to each other,
tighten all nuts and bolts securely.

STEP 4

: Floor model: (Bench model skip this step)

Install pump mounting plate on the side of the upright channel using the 3 M10 x 25mm
bolts, nuts and washers.
Mount Head ram
traverse plates. The
side with two bars
welded to them go
inside

the frame, with

Pump mounting plate

the thick threaded
plate on the bottom

.

Using two 10mm x 120

Mounting bolts, nuts washers

mm bolts, washers and
nuts snug only enough
To allow plate to travel

STEP 5

. Floor model: (Bench model skip this step)

Install the pumping unit to the mounting plate using 2 M10 x 25mm bolts, nuts and washers.
Make sure pump is centered on this mounting plate.



Pumping unit
