Dimensions
• Physical Size:
7.0”L x 3.70”W x 2.10”H
• Weight – 0.8712 lb (13.94 oz) • Each module has four mounting
holes with centers in a square
pattern with dimensions 6.50” x
3.20”. Each mounting hole is
meant for a #8 Flat-Head Screw
(4pls).
C L
2.10 in
5.88in
1.62in
Side View
C L
*** 4 x 20 ***
LARGE CHARACTER LCD
CAN BUS / RS-232
SMART DISPLAY
6.50in
3.20 in
Thru-hole for #8 Flat-Head Screw (4pls)
7.00 in
3.70 in
Front View
2.59in
1.49in
0.52in
0.90in
End View
12-PIN Deutsch
Connector

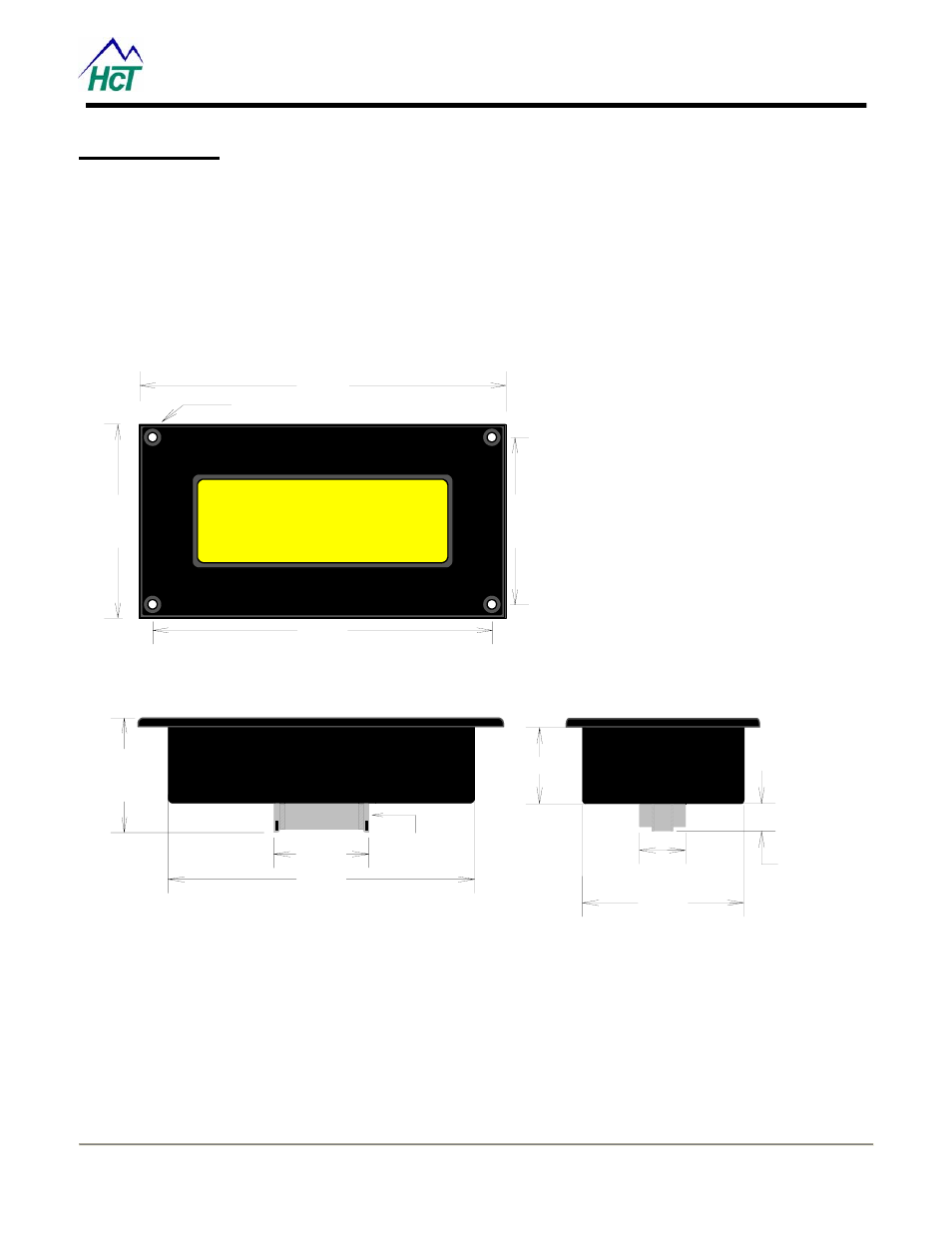

Figure 3: Packaging Dimensions
