Shaft Extension
The GEMCO Rotating Cam Limit Switch can be
supplied with the desired shaft extension. The
standard shaft extension can be specified in the
catalog numbering system on page 8.

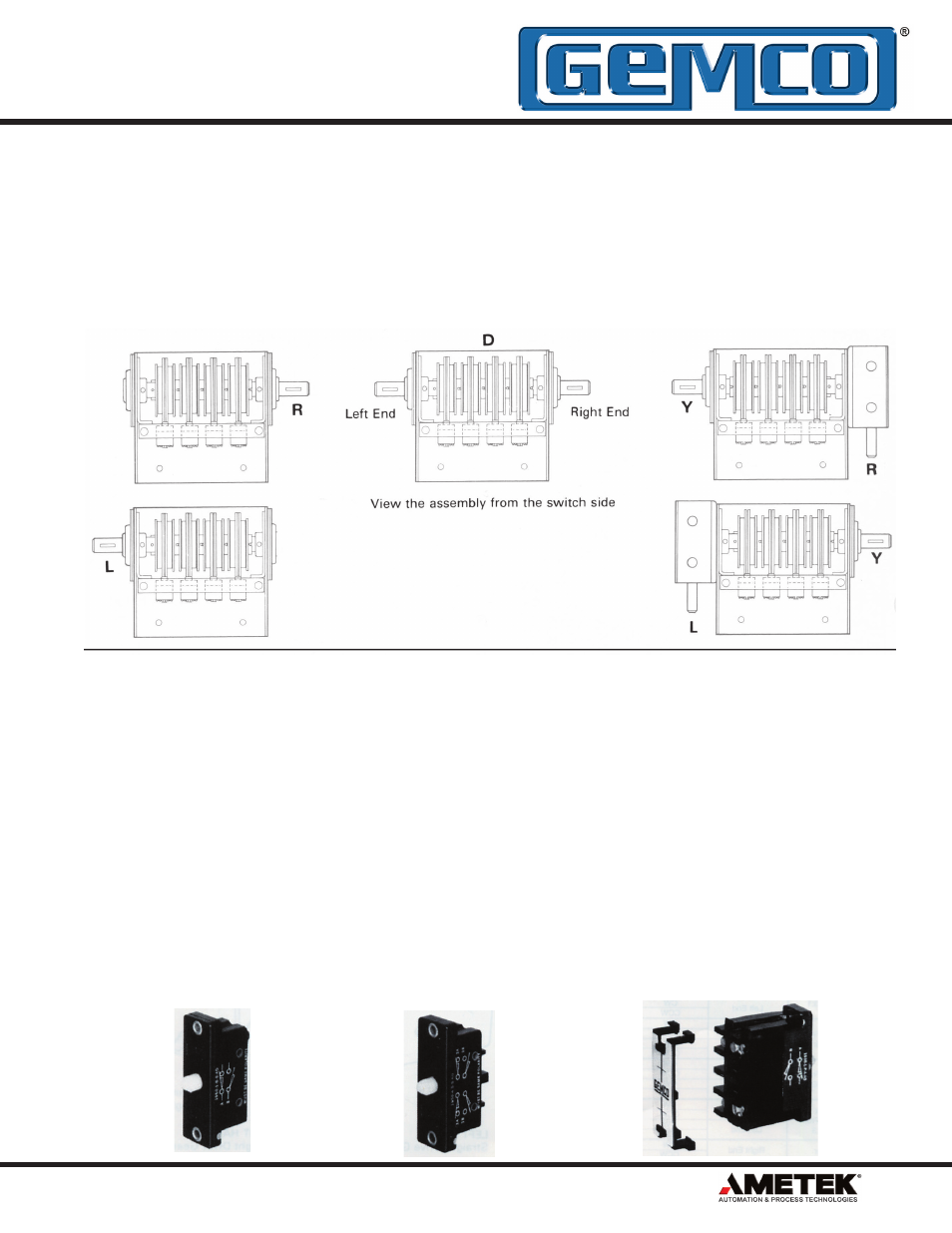

To determine the shaft extension symbol, the
Rotating Cam Limit Switch must be viewed from the
Switch Type
The GEMCO Precision Snap Switches are specifi-
cally designed for industrial duty applications where
reliability, ease of wiring and millions of trouble free
cycles are required.
The GEMCO Rotating Cam Limit Switch can be
supplied with either a basic single-pole double-throw
(SPDT), double-pole double-throw (DPDT), or a
combination of both types.
A plug-In socket can be supplied with either the
SPDT or DPDT switches.
NOTE: Call Sales at 1-800-635-0289 for information
about 1950 Snap Switch parts and options.
switch side of the assembly as shown. The shaft
extension can be specified as either:
L = Left shaft extension
R = Right shaft extension
D = Double shaft extension (both ends)
X = No shaft extension opposite the gear box
Y = Shaft extension opposite gear box
The type of snap switch can be specified in the
catalog numbering system on page 8.
SP = Single-pole double-throw
DP = Double-pole double throw
SPP = Single-pole double-throw with a plug-in
socket
DPP = Double-pole throw with a plug-in socket
The Plug-In Socket eliminates error due to discon-
necting and connecting wires during replacement
of the snap switch. A marking strip is supplied with
each plug-in socket for ease of wire identification.
Switch Replacement is Recommended Every
15 Million Cycles.
