AMETEK 1980R Rotating Cam Limit Switch w/Resolver - Manual (Page 6)

6 6380 Brockway Road • Peck, MI 48017 • 800.325.8074 • 810.378.5511 • Fax 810.378.5516 • www.AMETEKAPT.com

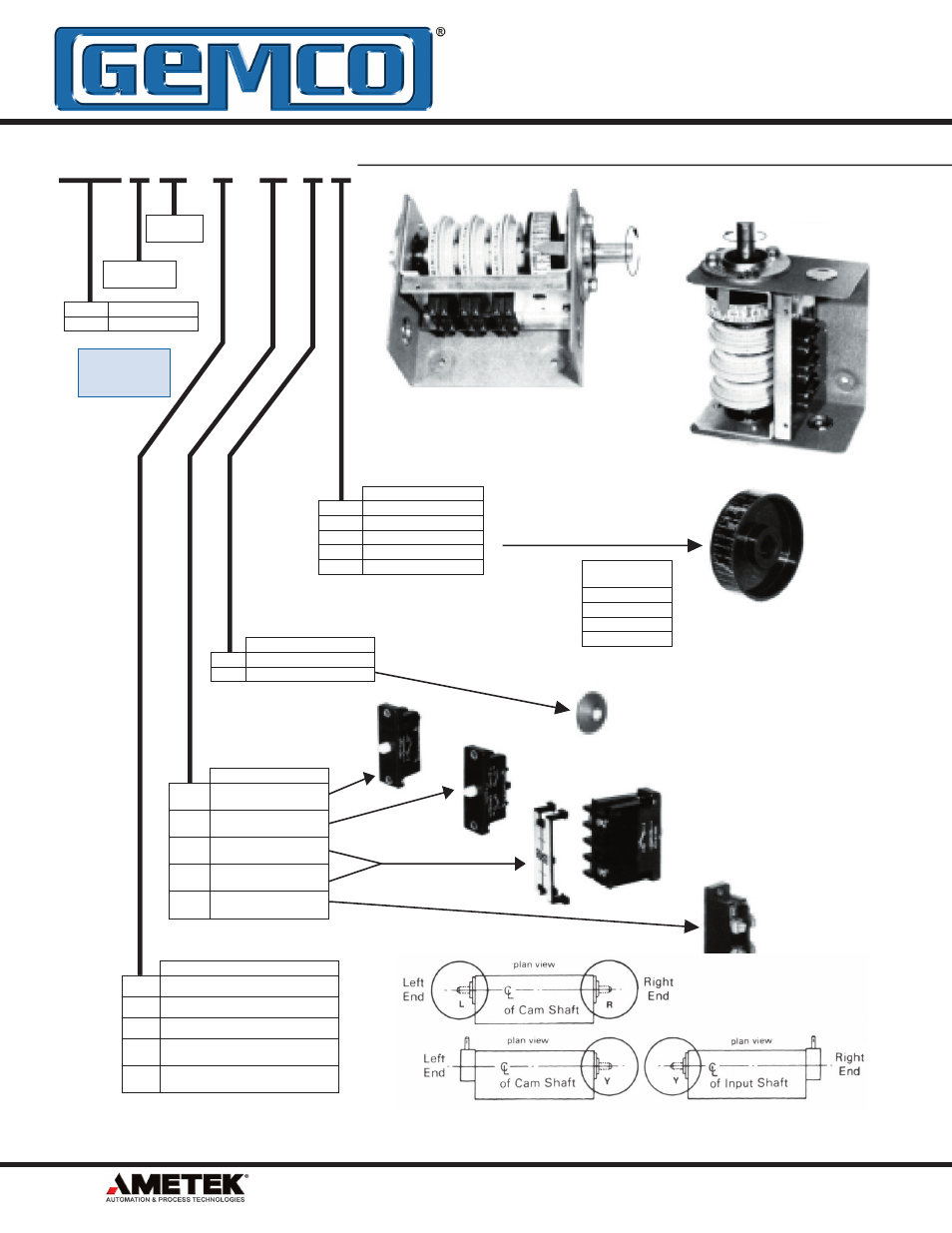

1980 1 04 – R – SP — X
NUMBER
OF CAMS
ENCLOSURE
TYPE
1980 Standard
1980R Built-In Resolver
NOTE: Timing dial always mounted
at right hand and as shown, takes one
circuit space, as viewed from right side.
{
{
TIMING DIAL*
X NO TIMING DIAL
TD1 C.W. ROTATION
TD2 C.C.W. ROTATION
TD3 C.W. ROTATION
TD4 C.W. ROTATION
* NOTE: If window is required for
timing dial, replace D with W in
Catalog Number (i.e., TW1)
}
HORIZ.
Mtg.
VERT.
Mtg. TIMING DIAL
DECAL
TD1 NP-76-B
TD2 NP-71-B
TD3 NP-78-B
TD4 NP-77-B
SWITCH TYPE
SP
SINGLE POLE
DOUBLE THROW
DP
DOUBLE POLE
DOUBLE THROW
**SPP
SPDT WITH
PLUG-IN SOCKET
**DPP
DPDT WITH
PLUG-IN SOCKET
SPK
SPDT WITH
CLAMP TERMINAL
SWITCH OPTION
— NO SWITCH OPTION
R RUBBER BOOT
SEE PAGE 10
FOR CATALOG
NUMBER
SHAFT EXTENSION
R RIGHT HAND
L LEFT HAND
D DOUBLE ENDED
X
NO SHAFT EXTENSION
OPPOSITE GEAR BOX
Y
SHAFT EXTENSION OPPOSITE
GEAR BOX
** When plug-in switches are specified, one extra circuit space must be allowed for in the enclosure.
HORIZONTAL Mtg.
VERTICAL Mtg.
RIGHT
Side
RIGHT
Side
c.w. c.w.
