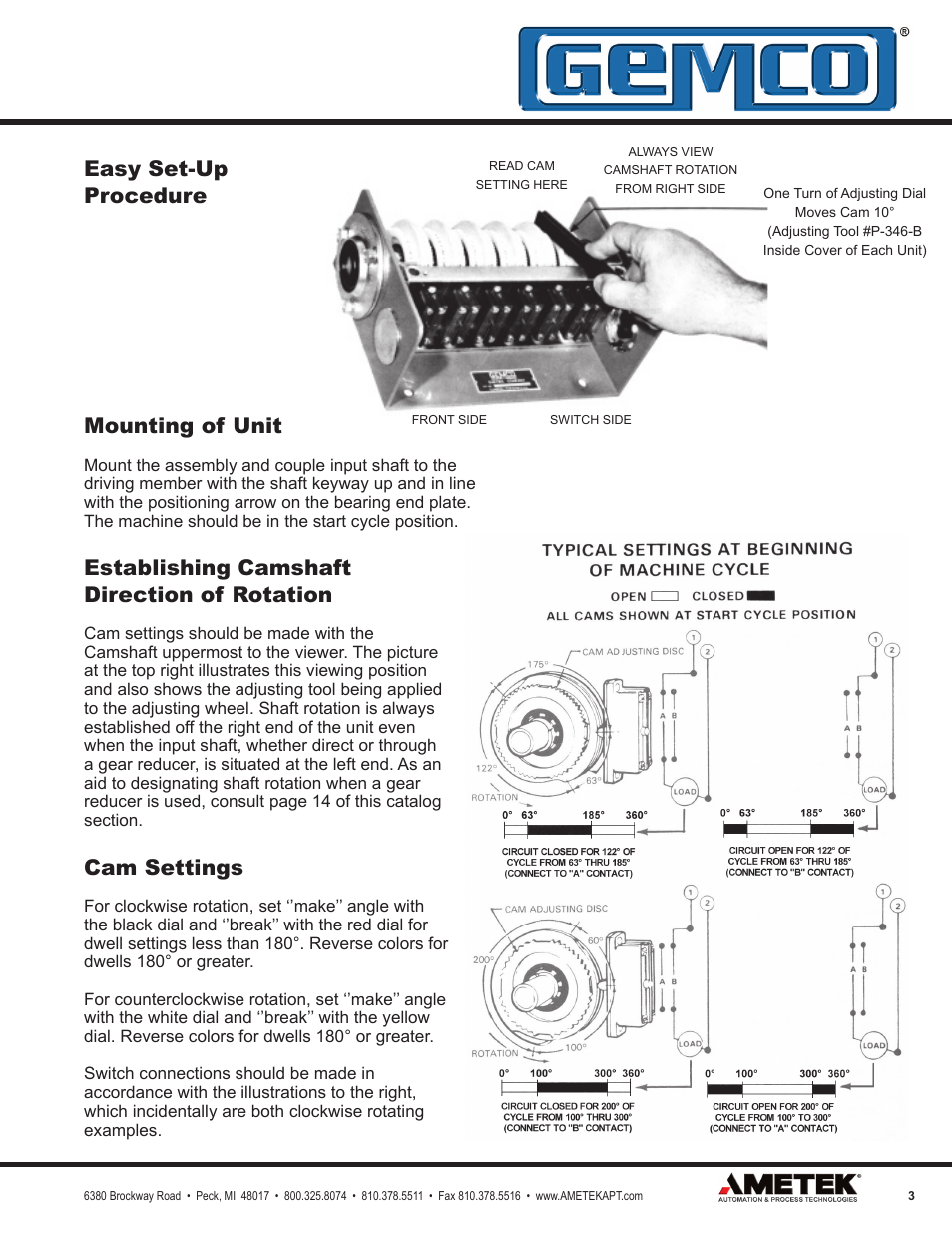

Mounting of unit, Establishing camshaft direction of rotation, Cam settings – AMETEK 1980R Rotating Cam Limit Switch w/Resolver User Manual
Page 3: Easy set-up procedure
