Mounting & sheave assemblies, Sheave assemblies – AMETEK 925 Linear Cable Reel Sensor User Manual
Page 7
MOVING
MEMBER
CABLE REEL
SENSOR
CABLE REEL
SENSOR
MOVING
MEMBER
SHEAVE ASSEMBLY
MOVING
DEVICE
CABLE REEL
SENSOR
SHEAVE
ASSEMBLIES
CABLE REEL
SENSOR
MOVING
DEVICE
SHEAVE
ASSEMBLIES

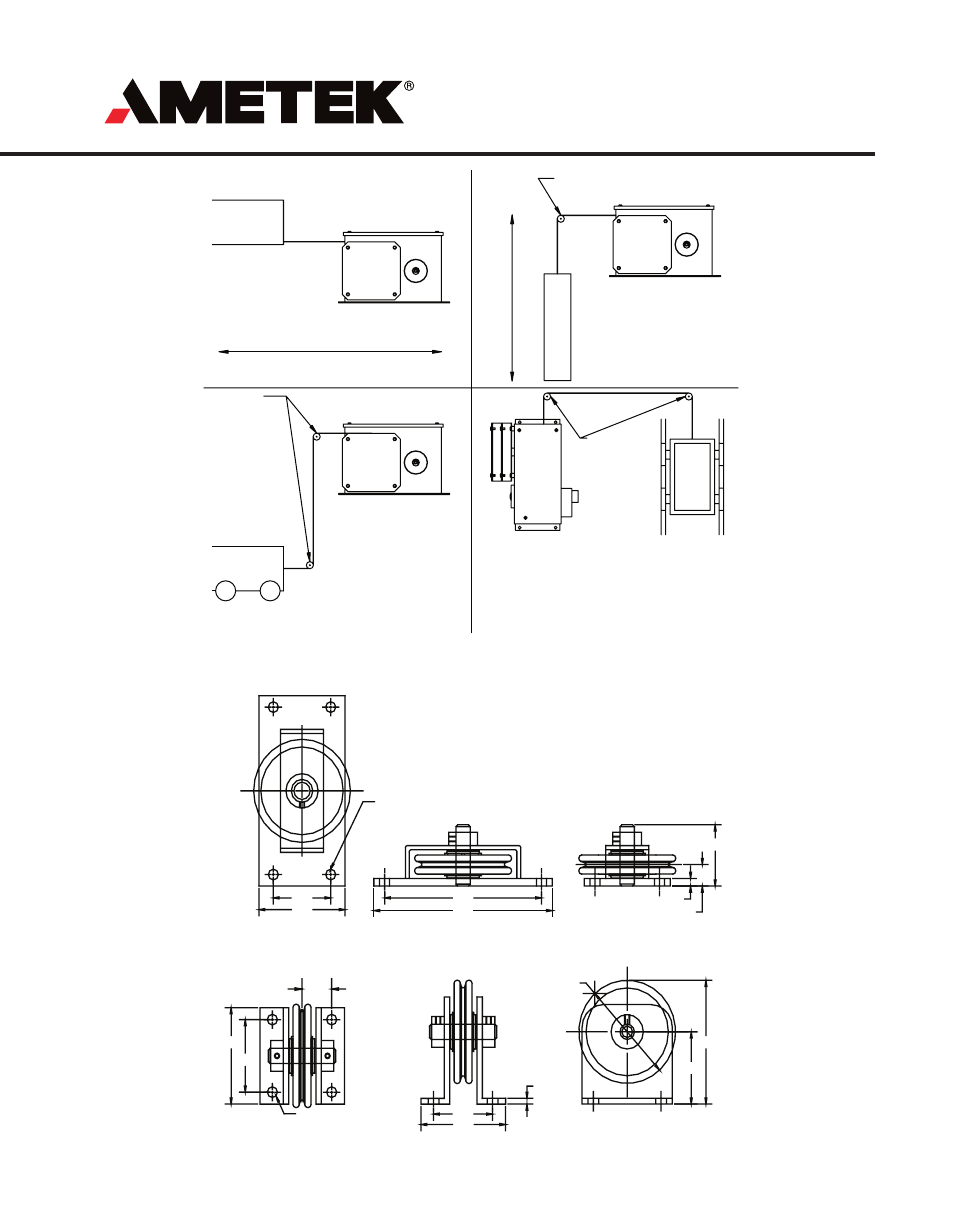

Mounting & Sheave Assemblies
3.38 DIA.
.38 DIA. MTG.
HOLES (4 PLACES)
.38 DIA. MTG.
HOLES (4 PLACES)
SHEAVE ASSEMBLIES
HORIZONTAL MOUNT
P/N PSD-0102600
VERTICAL MOUNT
P/N PSD-0102500
6.22
5.47
2.06
2.95
2.37
3.15
1.03
2.00
3.00
2.36
4.05
0.19
2.00
0.70
0.25
