Operating and installation instructions
Liquid return temperature limiter
4.3 Diagram
Refer to the data sheet for information about materials with designations and figure numbers.

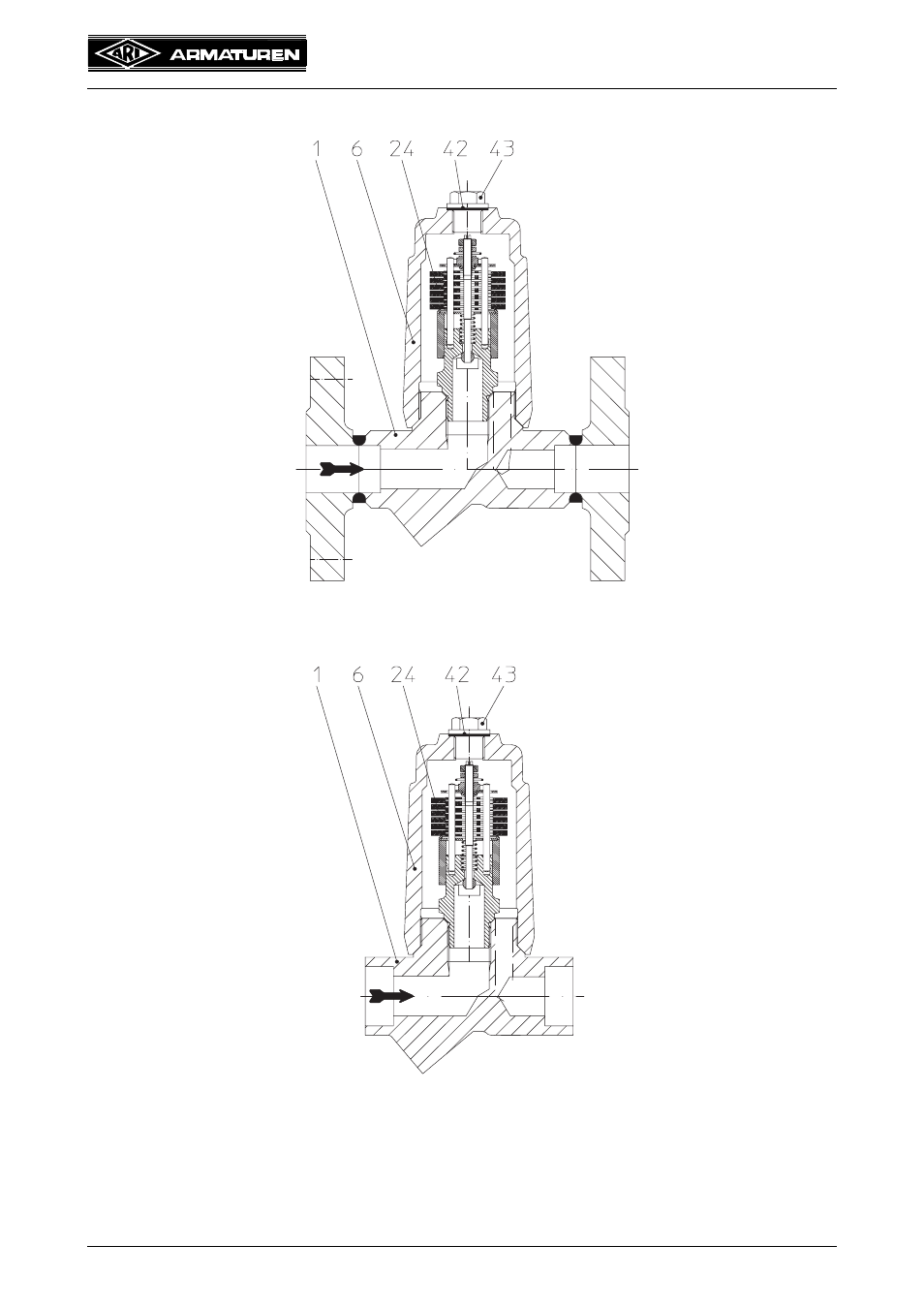

Fig. 1: Liquid return temperature limiter - series 650 PN25/40
DN15-25 (with flanges)
Fig. 2: Liquid return temperature limiter - series 650 PN25/40
DN15-25 (with socket weld ends)
