Rev. 0040805005 3614 Page 2-9
Operating and installation instructions
CONA
®
S - Ball float steam traps
7.2 Function testing of diaphragm capsule
When the diaphragm capsule is dry an cold, the diaphragm must be in contact with the top
part of the wall as shown in „Fig. 4 : Capsule OPEN“.
If the diaphragm is away from the top surface, and/or in contact with the bottom part of the
wall as shown in „Fig. 5 : Capsule CLOSED“, the capsule is defective and should be
replaced.
7.3 Tightening torques
(refer to Fig. 1- Fig. 2 page 4 and Fig. 3 page 8)

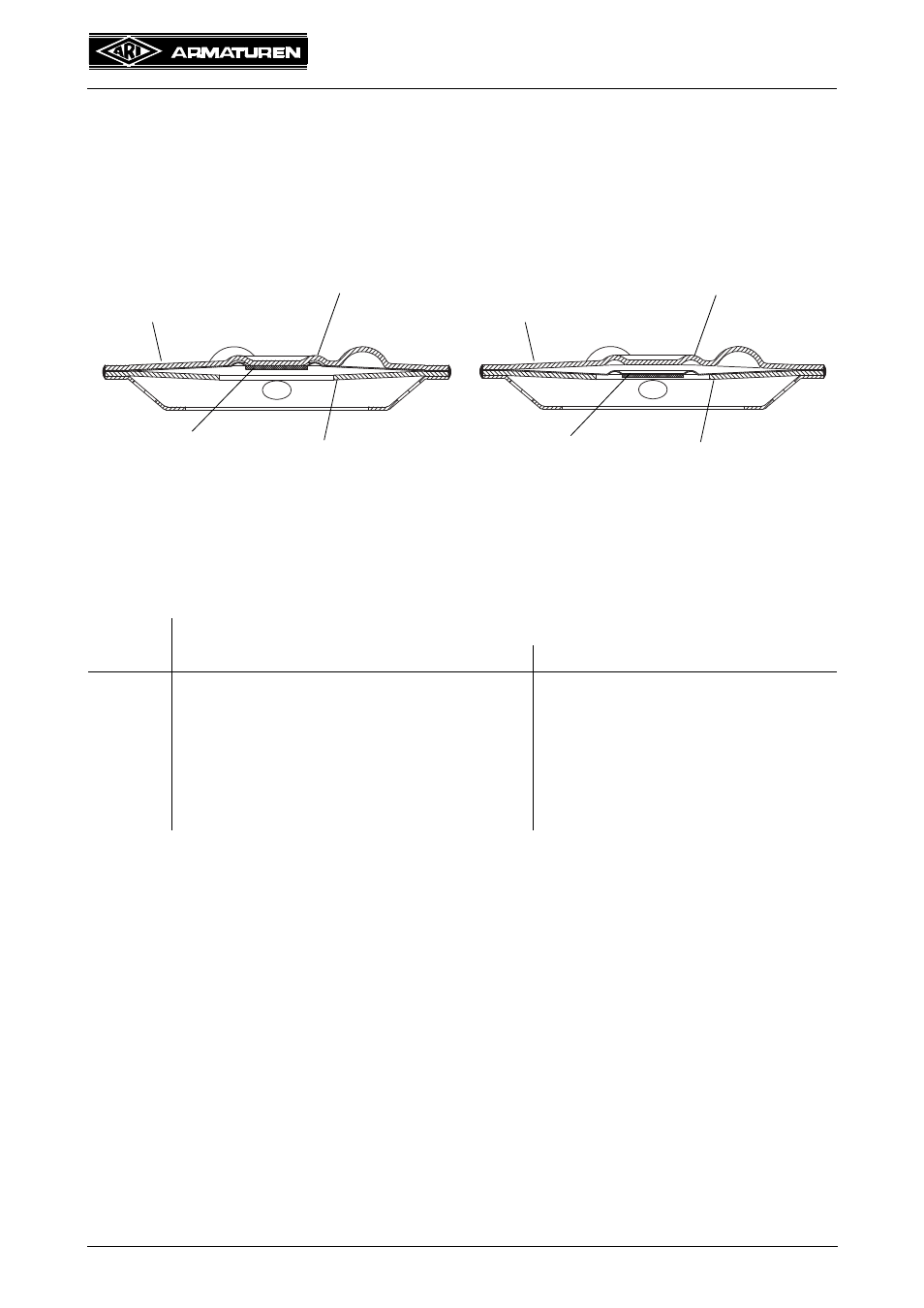

Fig. 4: Capsule OPEN Fig. 5: Capsule CLOSED
Pos. CONA S PN16/25/40
Torque (Nm)
DN50-100
24.1 Seat 80
27 Stud M30 40
28 Hexagon nut M30 220
44 Hexagon screw M12 (DN50) 50
44 Cheese head screw M12 (DN65-100) 50
81 Hexagon nut M12 50
top part of wall
bottom part of wall
diaphragm surface
capsule type
top part of wall
bottom part of wall
diaphragm surface
capsule type
