Page 8 Rev. 0040805003 3409
Operating and installation instructions
CONA
®
SC/SC-Plus - Ball float steam traps

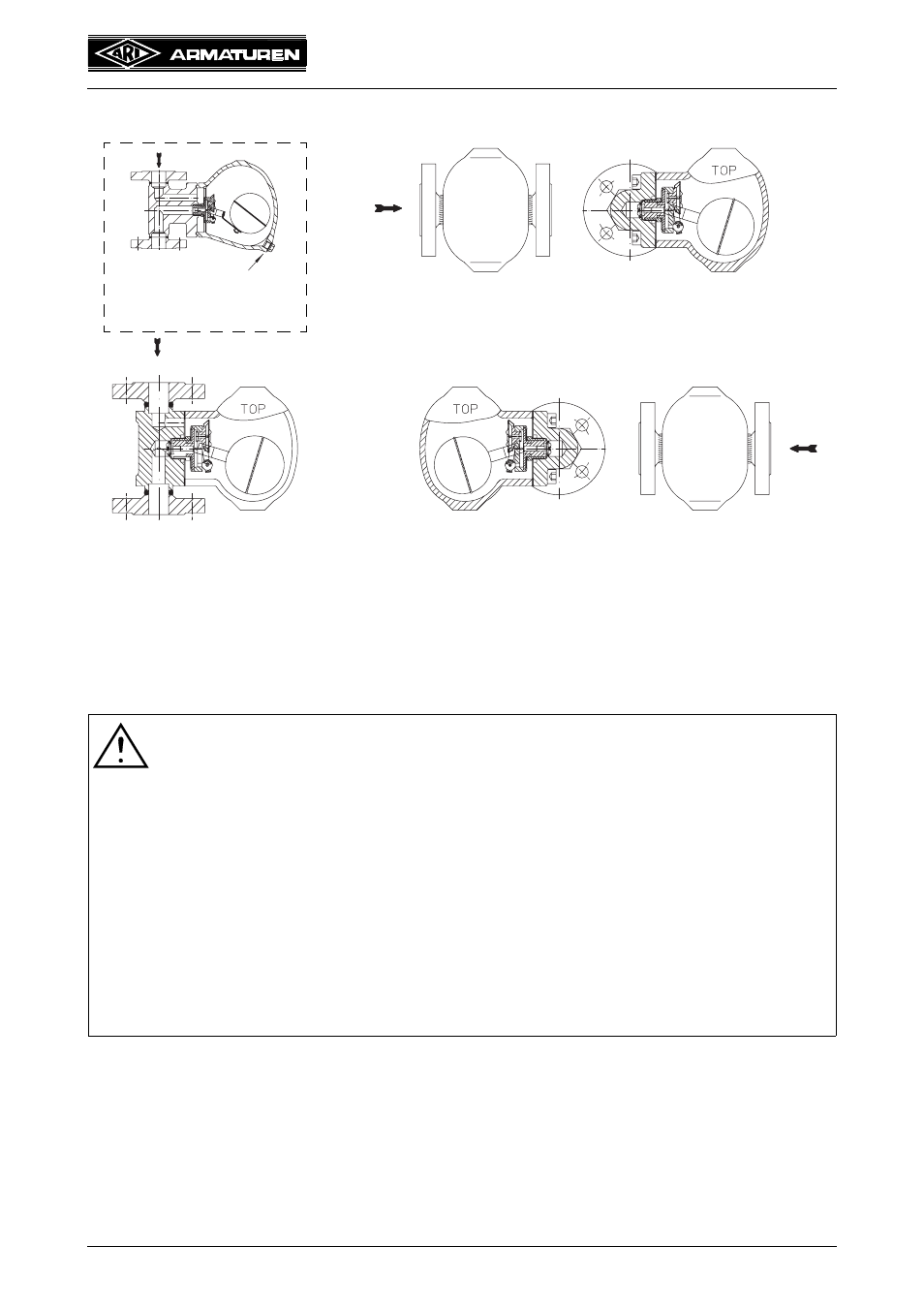

5.5.1 Possible installation positions
6.0 Putting the valve into operation
Fig. 6
ATTENTION !
- Before putting the valve into operation, check material, pressure, temperature
and direction of flow.
- Regional safety instructions must be adhered to.
- Residues in piping and valves (dirt, weld beads, etc.) inevitably lead to leakage.
- Touching the valve when it is operating at high (> 50 °C) or low (< 0 °C) media
temperatures can cause injury.
Affix warning notice or protective insulation as appropriate!
Before putting a new plant into operation or restarting a plant after repairs or
modification, always make sure that:
- All works has been completed!
- The valve is in the correct position for its function.
- Safety devices have been attached.
Horizontal installation:
Horizontal installation: Vertical installation (standard):
Inlet from the top
Inlet from the left side (ZL)
Inlet from the right side (ZR)
at BR635:
at the bottom
Plug always
