Operating and installation instructions
CONA
®
SC/SC-Plus - Ball float steam traps
7.2 Changing the installation position
(see Fig. 1 page 4 - Fig. 2 page 4 and Fig. 7 page 10)
- Position body (pos. 1) as desired, bearing in mind the direction of flow.
- Remove hood (Pos 16), then slacken hollow-core screw (pos. 24.10) approximately
1/2 turn.
- Rotate controller (pos. 24) 90° in the direction required.
- Always fit controller (pos. 24) so that the ball float (pos. 24.16) can work in the vertical
plane.
- Tighten hollow-core screw (pos. 24.10).
- Inspect and if necessary replace body seal (pos. 17).
- Put on hood (pos. 16) with drain plug (pos. 50) pointing down.
- Fit cheese head screws (pos. 27) (see 7.5) and tighten crosswise.

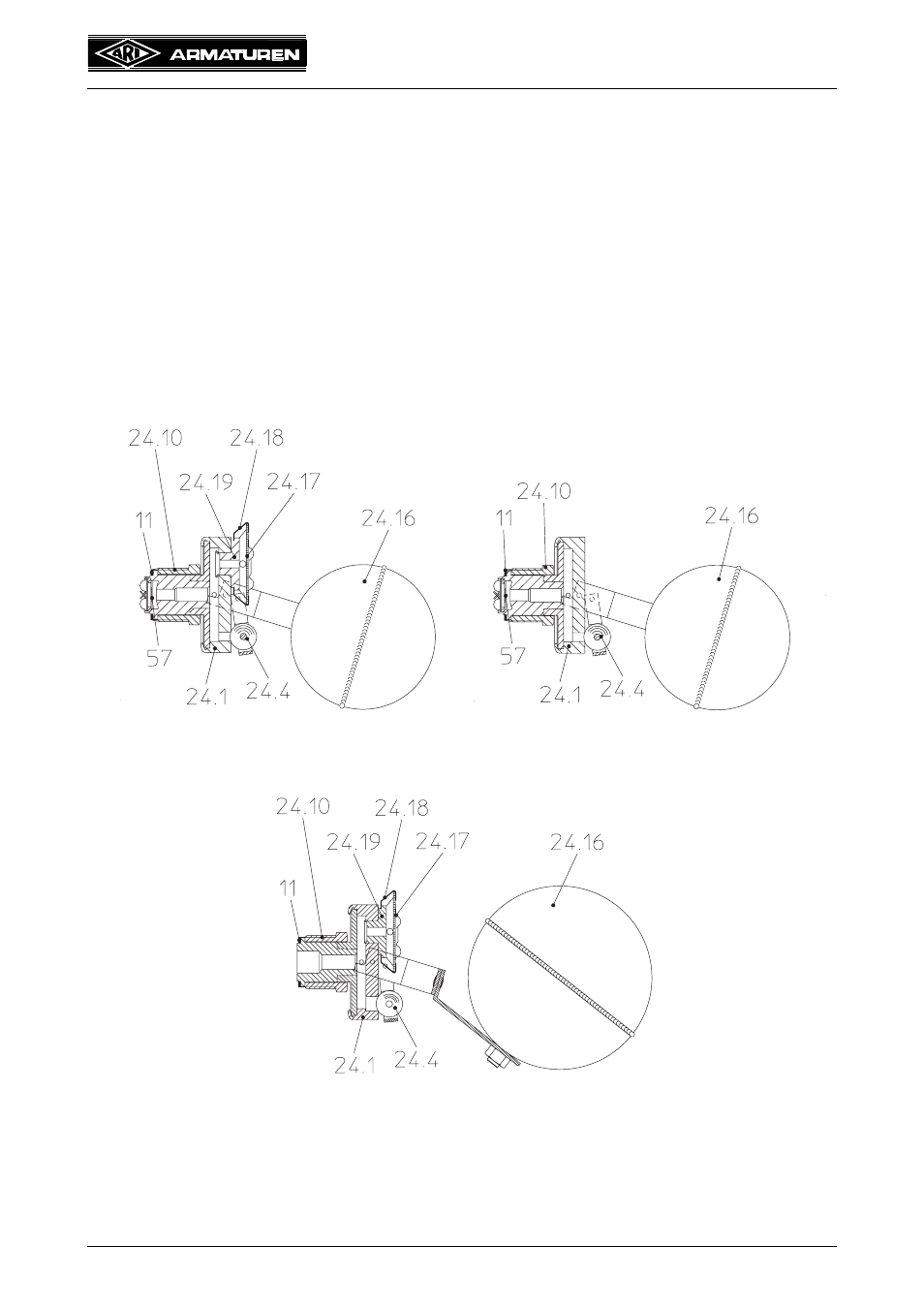

Fig. 7: Controller series 634, cpl. Fig. 8: Controller series 636, cpl.
Fig. 9: Controller series 635, cpl.
