Rev. 0040105004 0212 Page 5
Operating and installation instructions
ASTRA
®
4.3.2 Parts DN 250 - 400

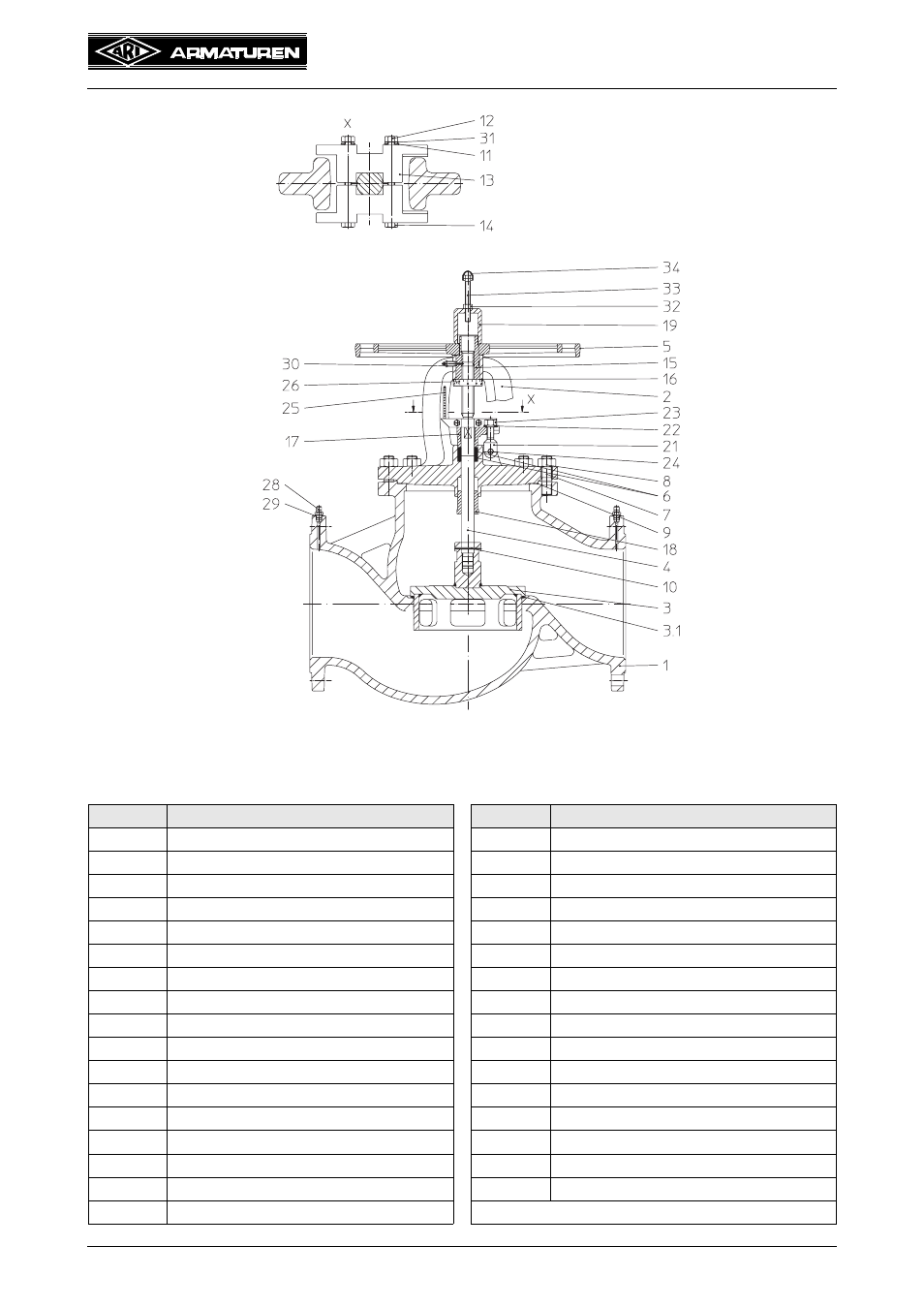

Fig. 4: DN 250 - 400
with stuffing box packing and lift indicator
Pos. Designation Pos. Designation
1 Body 17 Packing box flange
2 Bonnet 18 Guide bushing
3 Plug 19 Guard cap
3.1 Soft sealing 21 Flap type screw
4 Stem 22 Washer
5 Hand wheel 23 Hexagon nut
6 Packing ring 24 Straight pin
7 Stud 25 Scale
8 Hexagon nut 26 Scale ring
9 Gasket 28 Pressure gauge stud G1/4“
10 Straight pin 29 Sealing ring
11 Washer 30 Lubricating nipple
12 Hexagon nut 31 Spring ring
13 Clamp ledge 32 Hexagon nut
14 Hexagon screw 33 Hexagon screw
15 Insert nuts 34 Hexagon guard cap
16 Washer
