Rev. 0040105004 0212
Operating and installation instructions
ASTRA
®
4.3 Diagram
Refer to the data sheet for information about materials with designations and figure
numbers.
4.3.1 Parts DN 15 - 200

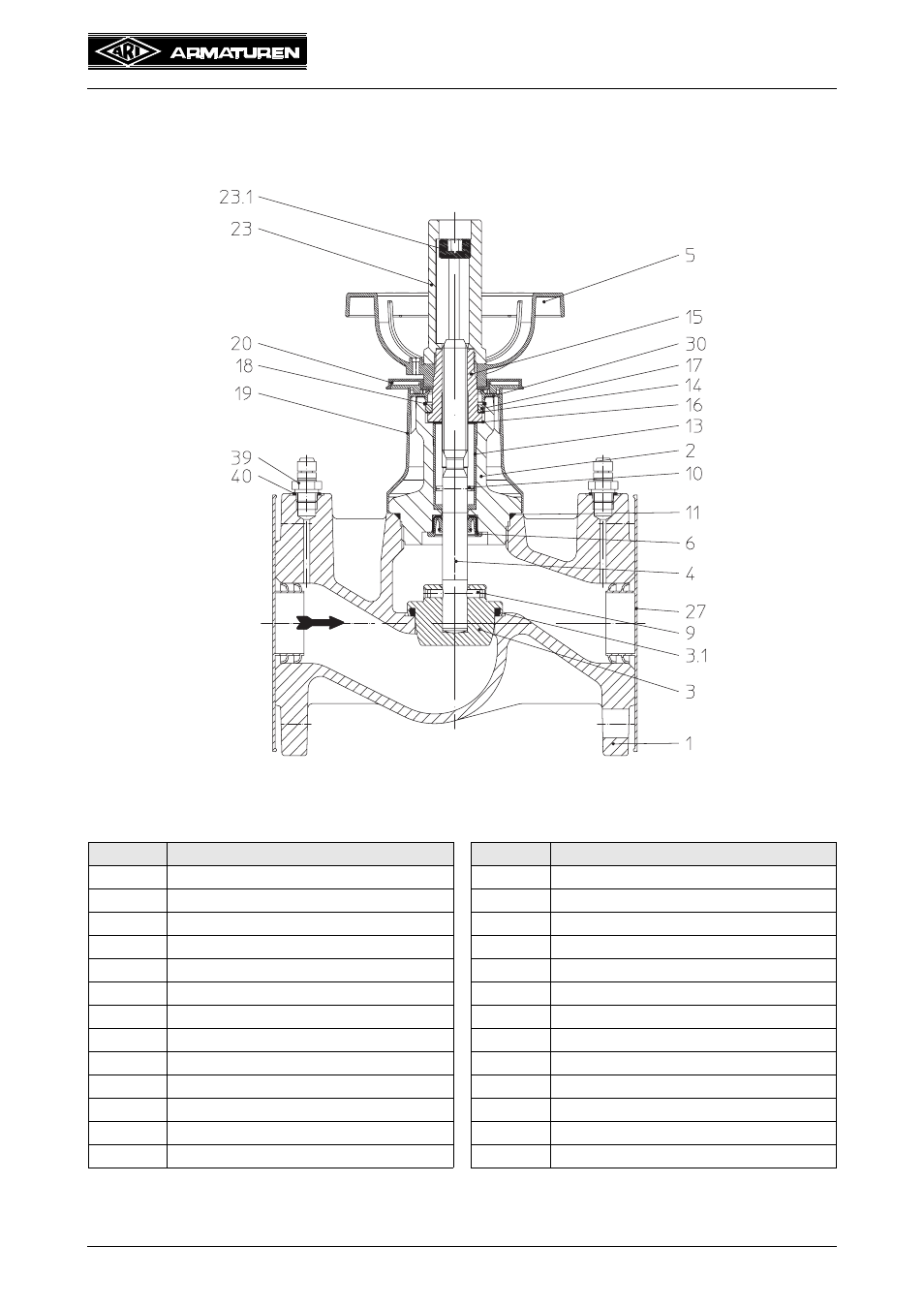

Fig. 3: DN 15 - 200 with digital display
Pos.
Designation
Pos.
Designation
1 Body
16
Spring
washer
2 Hood
17
Ring
3 Plug
18
Retaining
ring
3.1
Soft sealing
19
Insulating cap
4 Stem
20
Digital
display
5 Handwheel
23
Cap
6
Sealing ring
23.1
Travel limiter
9
Spring-type straight pin
24
Hexagon bolt
10
Parallel pin
25
Hexagon nut
11
O-Ring / Washer
26
Guard cap screw
13 Guide
bush
30 Gasket
14
Washer
39
Pressure gauge stud G1/4“
15
Insert nuts
40
Sealing ring
