INSTALLATION
TYPICAL INSTALLATION
1. Remove the paper backing from the
adhesive side of the adapter gasket
(included with adapter kit) and
carefully apply the gasket to the front
of the existing panel cut-out.
2. Apply the panel gasket (provided with
the unit) to one side of the mounting
plate. Slide the mounting plate over
the unit with the gasket facing the
Bezel of the unit.
3. Insert the unit with mounting plate
into the panel cut-out from the front.
Slide the adapter plate over the rear of
the unit. The protrusion on the adapter
plate is designed to fit into the
existing 1/4 DIN panel cut-out to
properly position the unit.
4. Refer to the installation section of the
manual, supplied with the instrument,
to complete the installation.
This panel mount adapter kit is used to mount CUB4, CUB5, DT8 and DT9 instruments, into an existing 1/4 DIN panel cut-out. The kit includes two durable steel
mounting plates painted black and a neoprene gasket. The Adapter Kit, when used with a unit which has NEMA 4/IP65 specifications, will meet NEMA 4/IP65
requirements when properly installed.

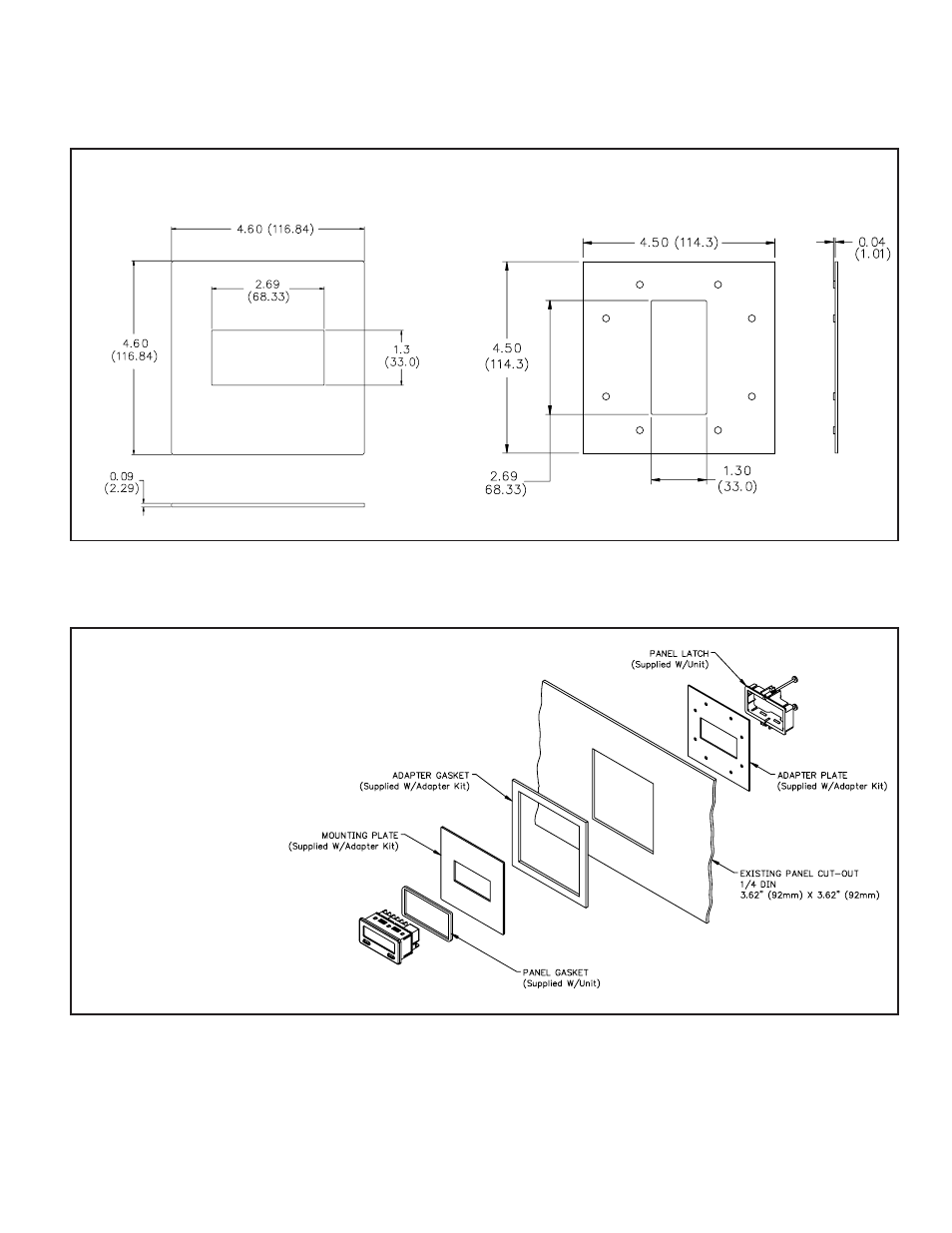

DIMENSIONS In inches (mm)
MOUNTING PLATE ADAPTER PLATE
PMK7A - 1/4 DIN TO CUB ADAPTER
