Red Lion Converter Modules - Manual (Page 3)

3
INPUT BLACK
BLUE
ORANGE
5 TO 28VDC
SUPPLY
LCM
LCM
INPUT BLACK
SUPPLY
5 TO 28VDC
ORANGE
BLUE
+ -
SENSOR
OR LOGIC
CIRCUIT
LCM
INPUT BLACK
SUPPLY
5 TO 28VDC
ORANGE
BLUE
+ -
SENSOR
OR LOGIC
CIRCUIT
10K

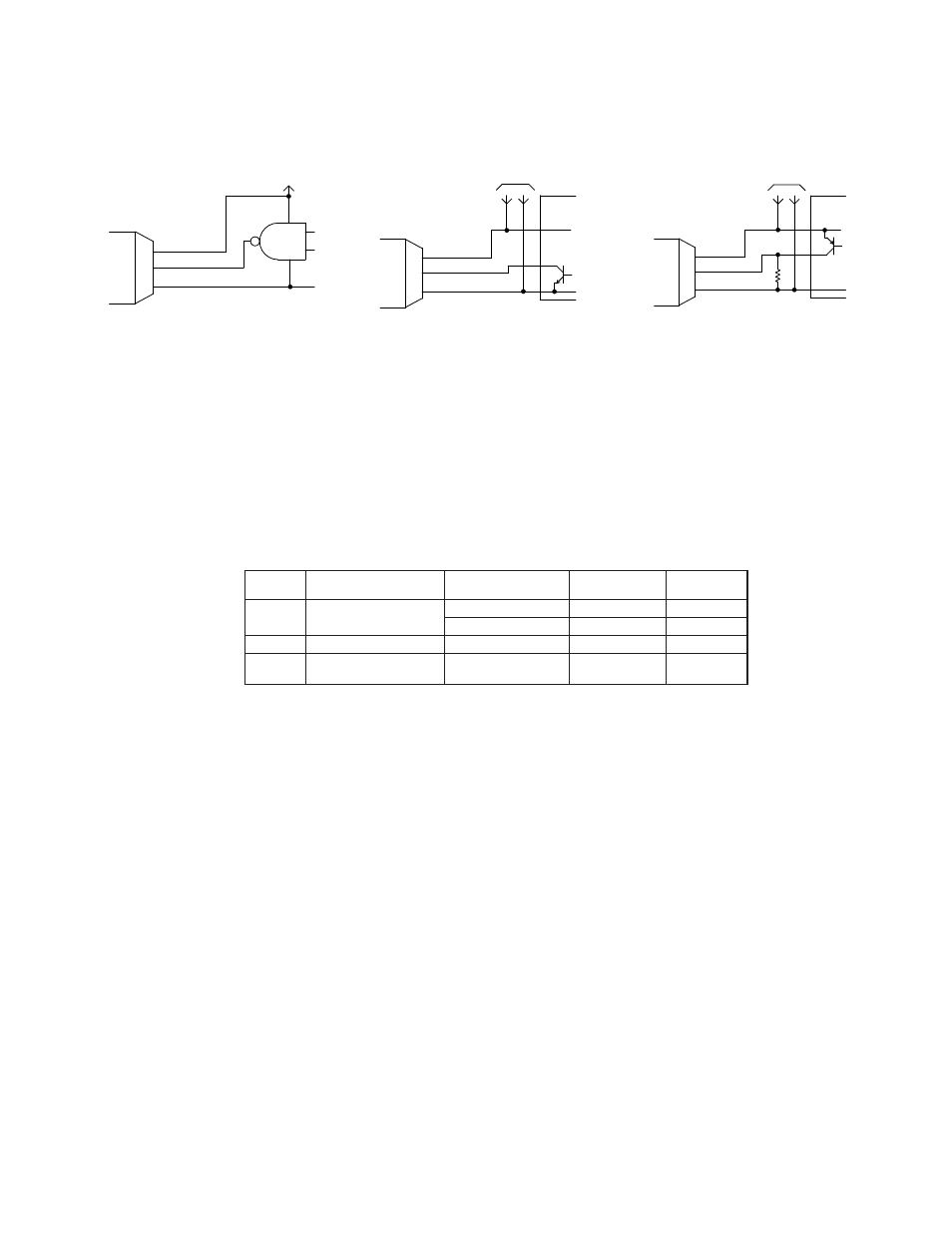

TYPICAL INPUTS TO LCM
CMOS OR TTL NPN OPEN COLLECTOR
(SINK OUTPUT)
PNP OPEN COLLECTOR
(SOURCE OUTPUT)
ORDERING INFORMATION
MODEL NO. DESCRIPTION INPUT VOLTAGE
OUTPUT WIRE
COLOR
PART NUMBER
VCM Voltage Converter Module
4 - 50 V AC/DC yellow VCM10000
50 - 270 V AC/DC white VCM20000
TCM Triac Converter Module 115 VAC ±10% white/green trace TCM10000
LCM Logic Converter Module
+3 to +28 VDC (signal)
+5 to +28 VDC (supply)
white LCM10000
