RocketRAID 2322 Hardware Description/Installation

RocketRAID 2322 Hardware

1

-

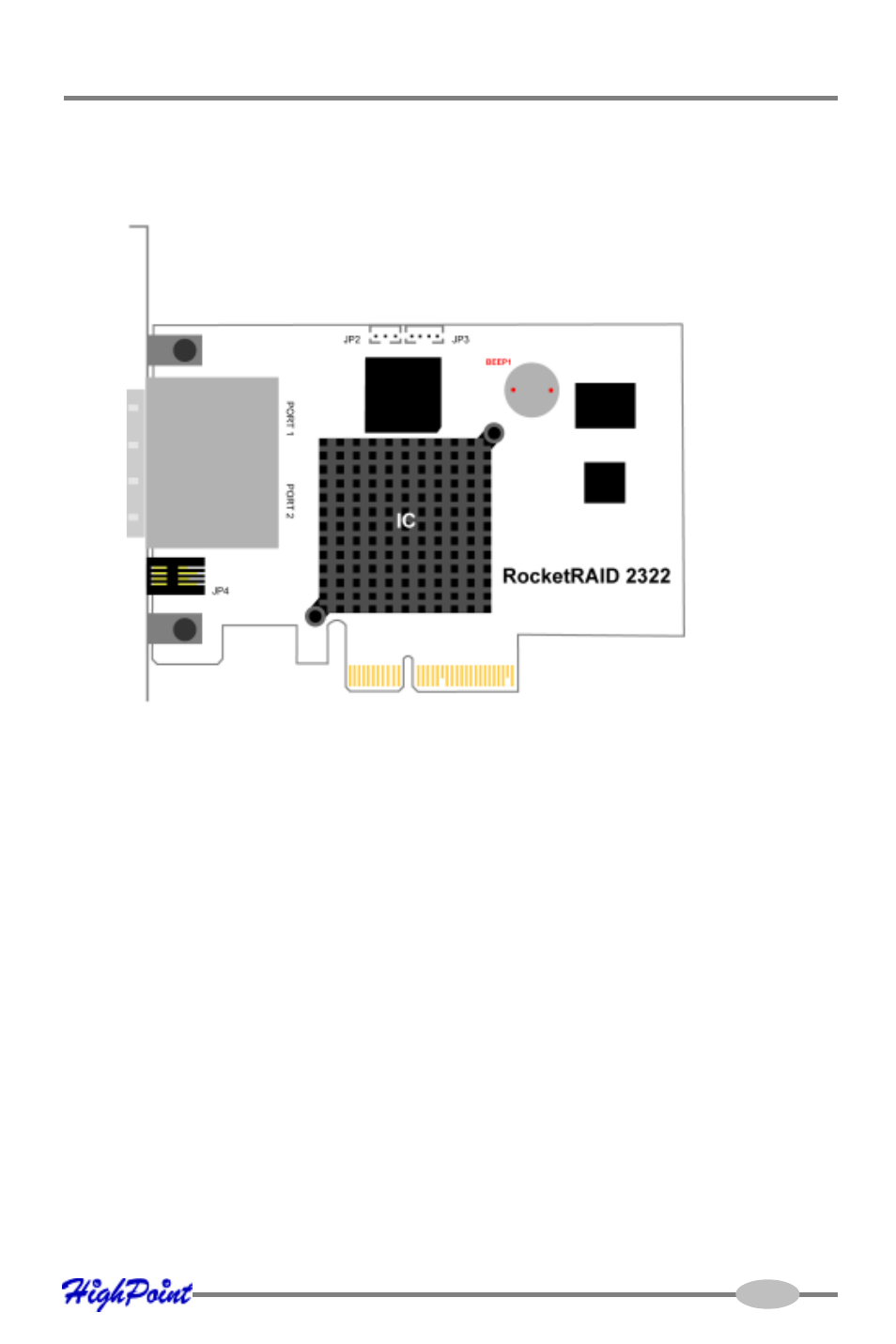

RocketRAID 2322 Adapter Layout

Port1- Port2

These represent the RocketRAID 2322’s two external Mini-SAS ports. Each Mini-
SAS port hosts up to 4 SATA or SATAII hard disks.

BEEP1 - Speaker

Alarm (speaker): the speaker emits and audible alarm in the case of disk/array failure.

J2, J3 - Cross Adapter Ports

These jumpers enable cross-adapter (multi-card) RAID support. The RocketRAID
2322 includes a cable designed for use with these jumpers. Consult the Single-RAID
Cross Adapter section (page 2-3) for more information.

JP4 - RJ11 Port

Designed for use with the X4 and X8 external hard disk enclosures – enables the
RAID Management Console (see page 4-2) to monitor and manage various chassis
functions/attributes (temperature, hard disk status, etc.)

2-1
