Hardware - Description and Installation

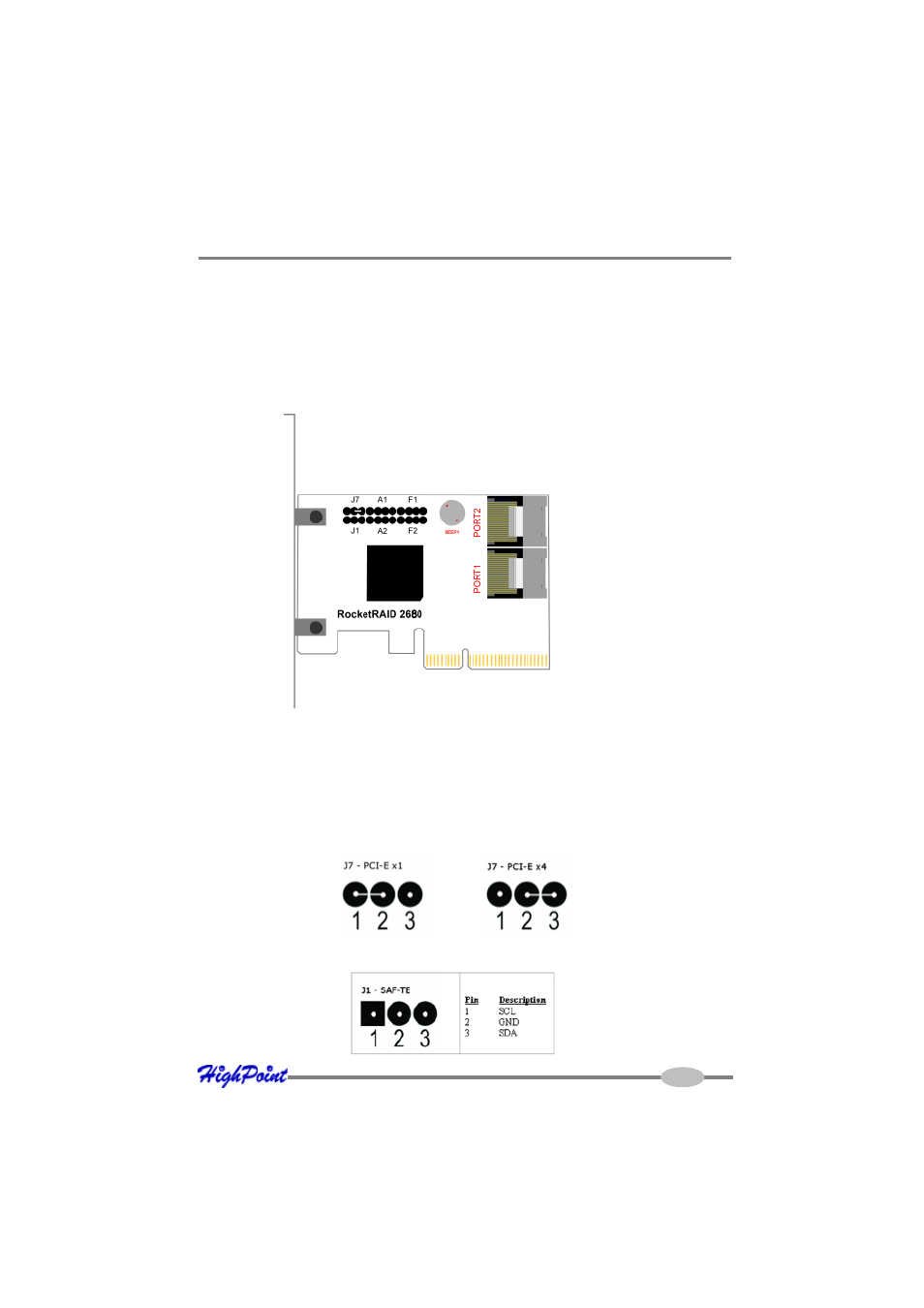

1 – RocketRAID 268x Host Adapter layout

RocketRAID 2680

Port1- Port2 - These represent the RocketRAID 2680’s 2 Internal Mini-SAS ports.

Each port can direct connnect up to 4 SATA/SAS hard disks.

BEEP1 – (alarm/speaker): the speaker emits and audible alarm in the case of disk/array

failure.

J7 – This jumper is used to select the PCI -Express bus speed:

Hardware – Description and Installation

9

J1 – This jumper is the SAF-TE connector port (for disk enclosures/chassis)
