Hardware – Description and Installation

3 – Hardware Installation

RocketRAID 2680

Note: Make sure the system is powered-off before installing the RocketRAID host

adapter.

The RocketRAID 2680 include both standard and low-profile brackets. It may be

necessary to attach the low-profile bracket in place of the standard bracket, depend-

ing upon the chassis design. Open the system chassis and locate an unused PCI-

Express x4.

1. Remove the PCI slot/bracket cover.

2.

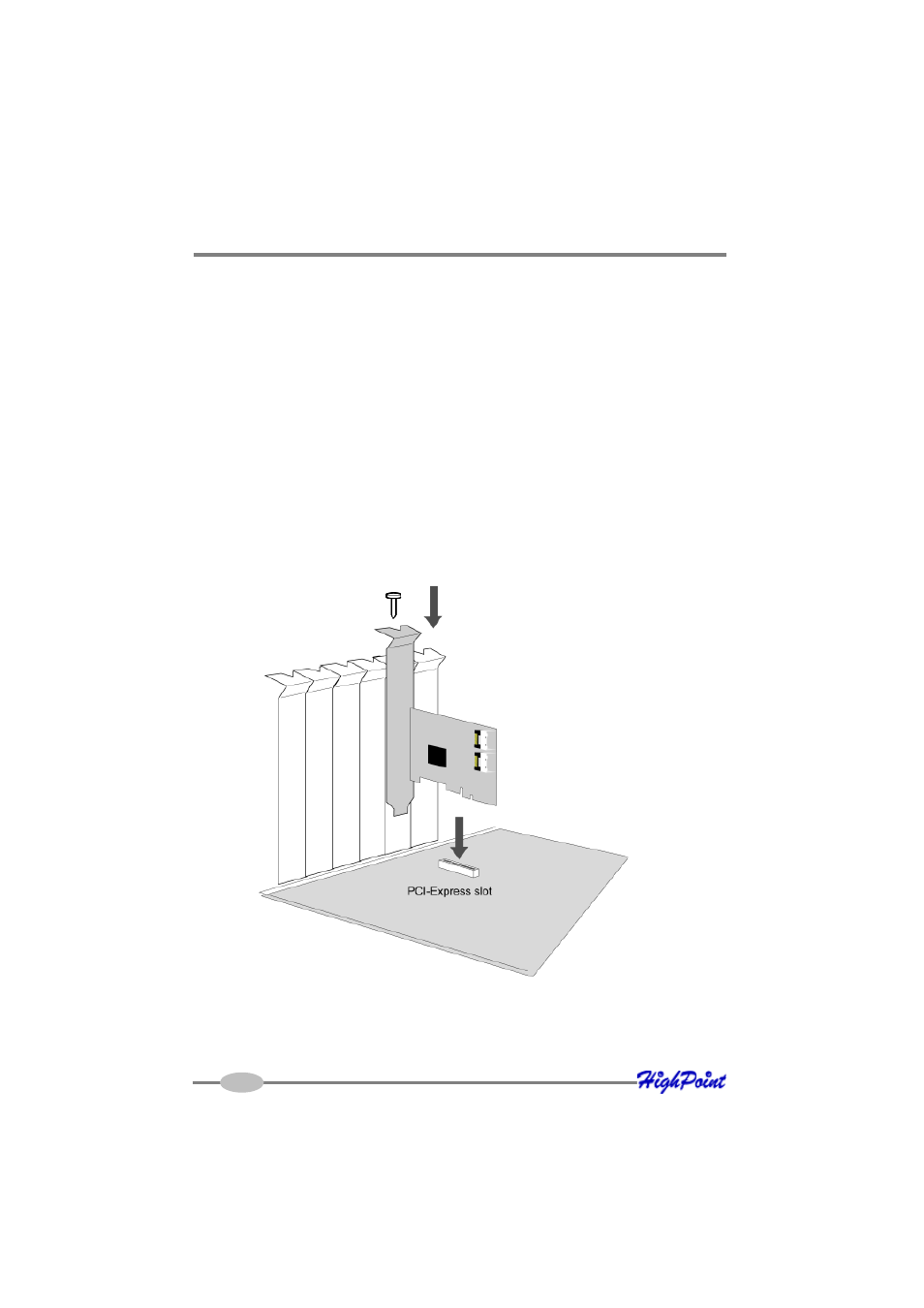

Gently insert the RocketRAID card into the PCI-Express slot, and secure the

bracket to the system chassis (illustration shows RR2680).

12

3.

After installing the adapter, attach hard drives to the host adapter using the data

cable. The RocketRAID 2680 model utilizes 2 Mini-SAS to Mini-SAS Cables are

included in each retail box. This card can support

up to 8 3Gb/s SAS or SATA Hard
