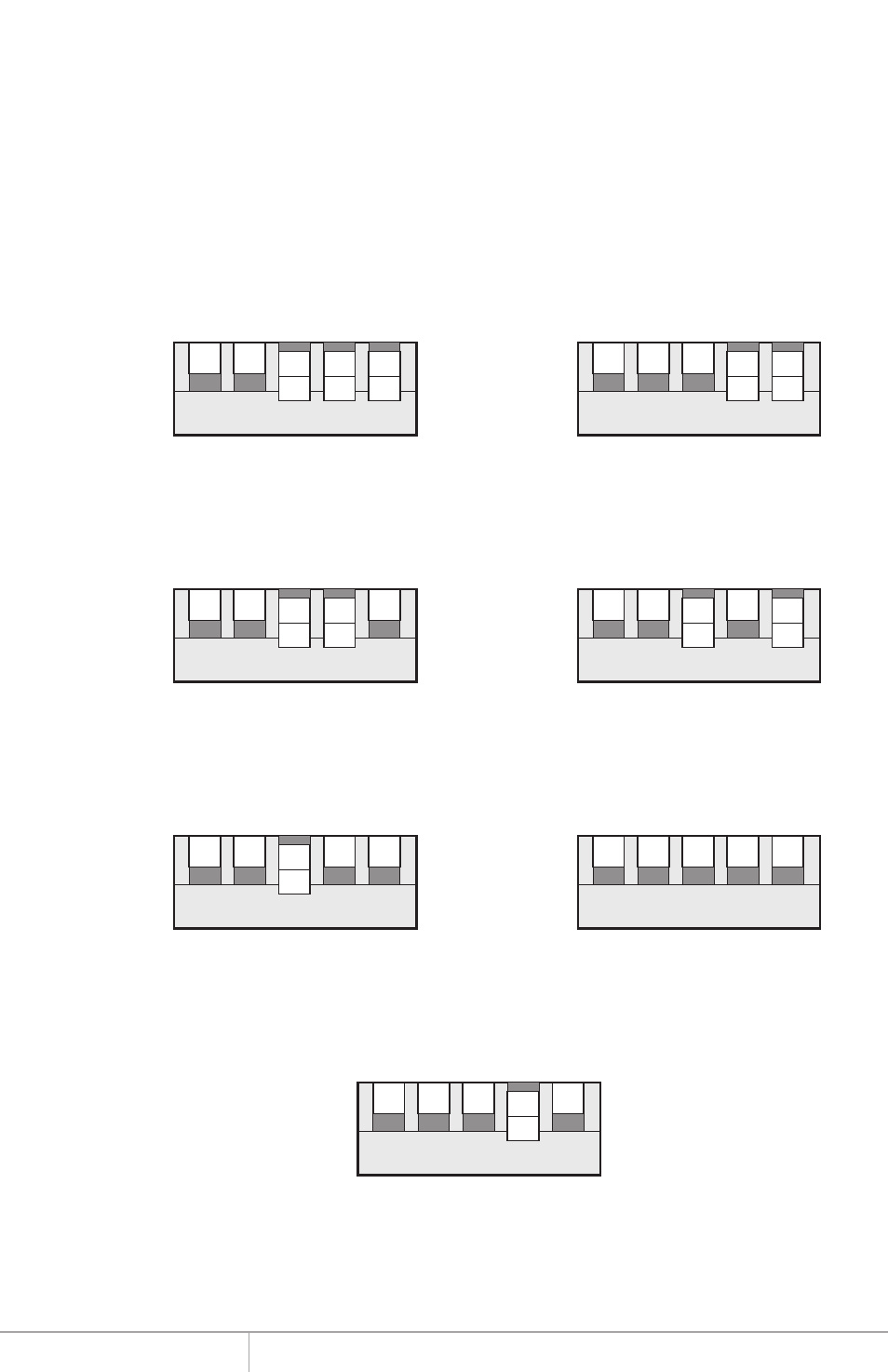

e. On the DIP switch, change (M0 to M2) setting to the
desired RAID mode using the diagram below.
All settings on the diagram shows
• Error buzzer function is ENABLED
• EZ function is DISABLED.
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
RAID 0 Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
Clone Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
RAID 1& RAID 10 Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
Large Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
RAID 3 Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
Individual Drives Mode
1 2 3 4 5
SW1
BZS EZ M2 M1 M0
RAID 5 Mode
OFF OFF ON ON ON
OFF OFF ON ON OFF
OFF OFF ON OFF OFF
OFF OFF OFF ON OFF
OFF OFF OFF ON ON
OFF OFF ON OFF ON
OFF OFF OFF OFF OFF
