Hpm-xa port multiplier, Dip switch settings – Addonics Technologies RAID RACK RR2035ASDES User Manual
Page 5
www.addonics.com
Technical Support (M-F 8:30am - 6:00pm PST)
Phone: 408-453-6212
Email: www.addonics.com/support/query/

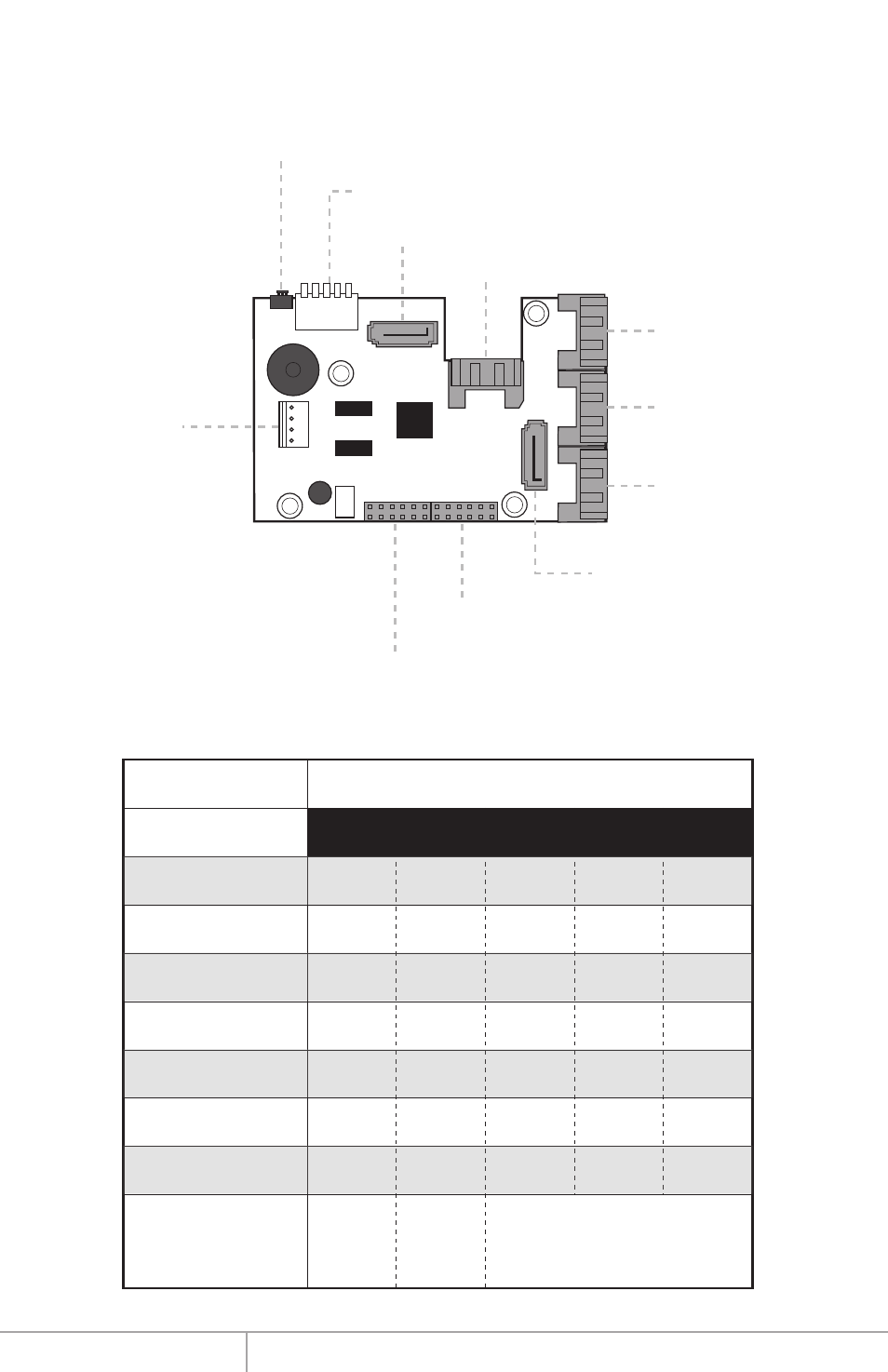

RAID Setting Button
Dip Switch
SATA Host Port (Port 5)
SATA Port 2
SATA Port 1
SATA Port 0
SATA Port 3
SATA Port 4
Drive activity LED Jumper Block (J1)
Error LED Jumper Block (J3)
Floppy
Power
Connector
Dip Switch Settings
Enable
ERR Buzzer
Function
Auto-
Rebuilding
to Spare
Drive
Port Multiplier Mode
Raid Mode
1 2
3 4 5
Individual Drive
(Factory Default)
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
OFF
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
ON
0
1 and 10
3
5
Clone
Large
HPM-XA Port Multiplier
