37
C3-IC-1
C5-IC-1
C6-IC-1
C3
C4
C5
C6
TC-0
TCC-2
C8
C10
9
9
8
6
5
4
C4-IC-1
C8-IC-1
C10-IC-1

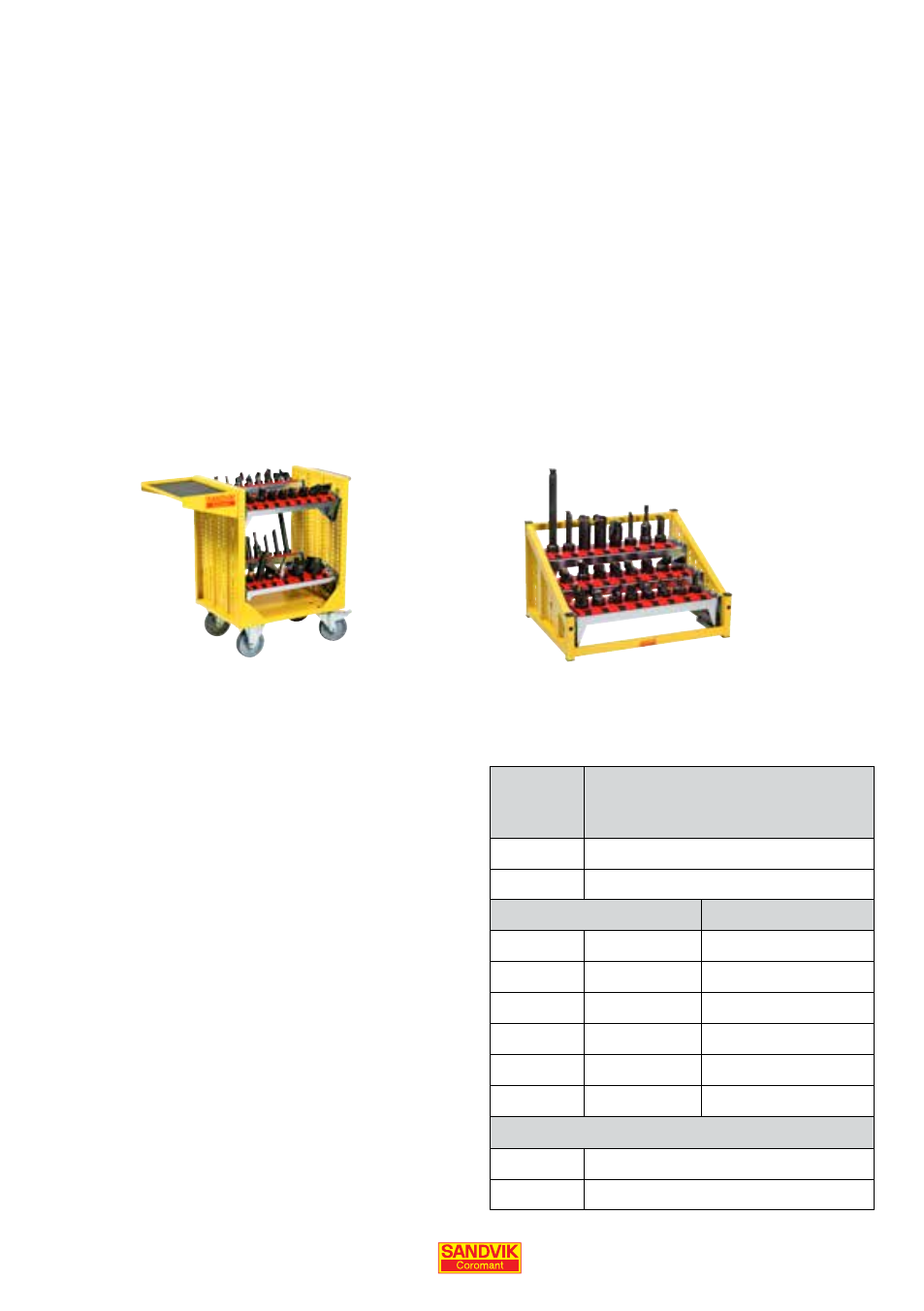

Tool storage
Working with tool kits and sister tooling provides savings in batch and tool change
over time. It is important to have the replacement tools or kits close at hand. The
tool storage wagon is used mainly for tool kits for batch production and for trans-
port when using a central pre-setting facility. The wagon kit (CCW-KIT) is delivered
with 4 tool cradles.
The bench stand is for sister tooling or when pre-setting is done at the machine
using the pre-measuring fixture. The bench stand kit (BS-KIT) is delivered with 3
tool cradles.
Tool storage wagon Bench stand
Tool holders
The molded tool holders for each Coromant
Capto size are ordered separately. They are
universal and fit both the tool cradles (for
the wagon) and the bench stand. They are
made from ABS high impact oil resistant
plastic.
Ordering
Code
Description
CCW-KIT
BS-KIT
Wagon kit
Bench stand kit
Tool holders # holders/cradle
Accessories
Tool Cradle
Pair of Cradle Carriers
