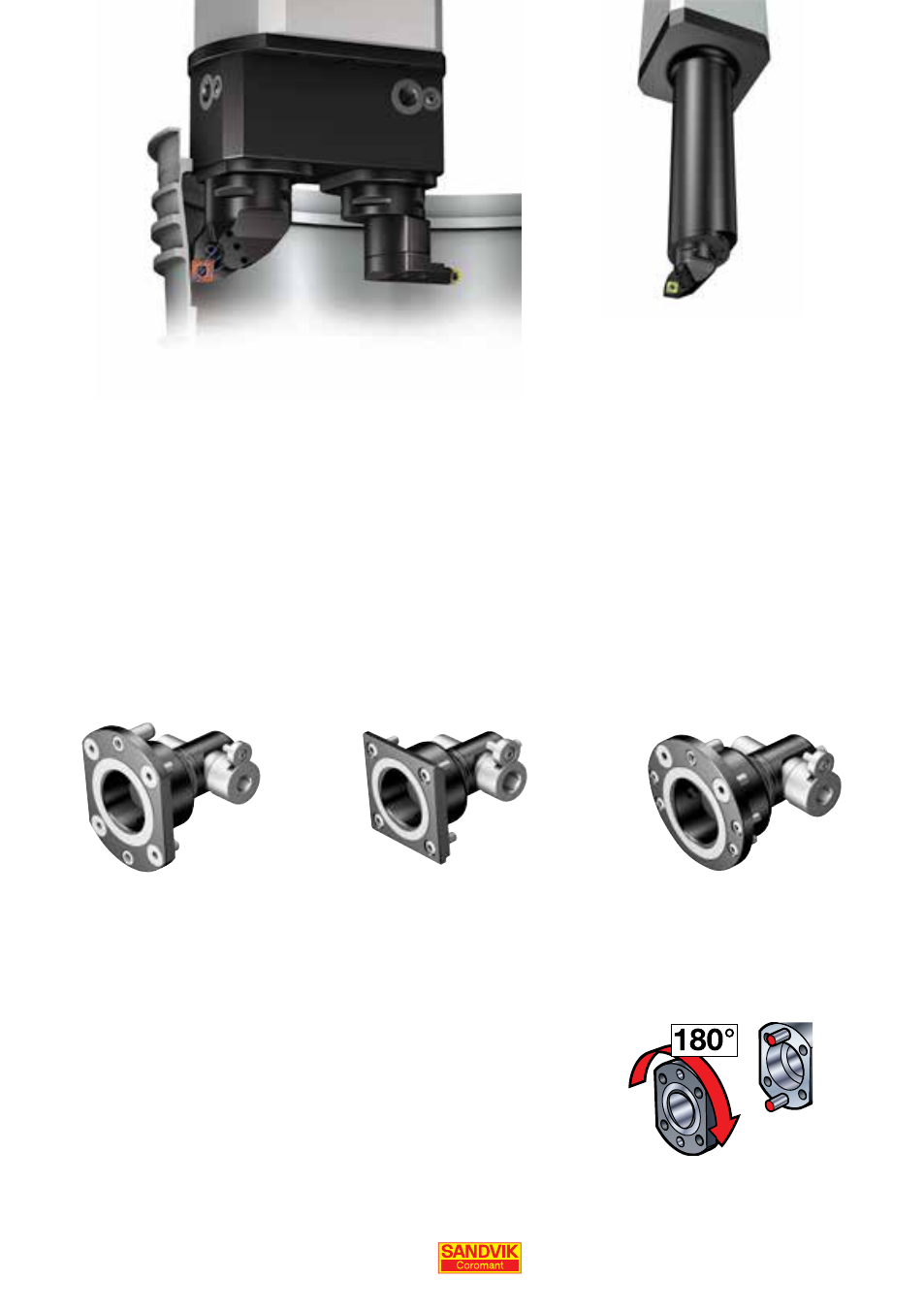

Non standard clamping units – clamping unit sets
Clamping unit sets are used to make clamping units to specific
requirements. These are used commonly for tool blocks for vertical
lathes, double units or retrofitting quick change onto existing turrets.
The clamping set sleeves are available in different forms depending
upon the application. Contact your local representative.
General
Square-double
Offset-boring bar applications
Sleeve rotation
The sleeve can be rotated 180 degrees to change the
configuration from right to left hand or visa versa.
