Installation and Operation
6 900-0127-01-00 Rev D
EnergyCell RE
The EnergyCell RE (Renewable Energy) Series uses pasted lead-calcium-tin plates. It is designed for regular
discharge/charge cycles. The EnergyCell RE is available in both top-terminal and front-terminal designs.
 Intended for use in backup, off-grid, and renewable energy (RE) sites with OutBack inverters, charge controllers,
and other devices that require the use of deep-cycle batteries
 Lead-calcium-tin alloy plates for long life in both cycling and float applications
 High-density pasted plates for high cycle life
Top Terminal

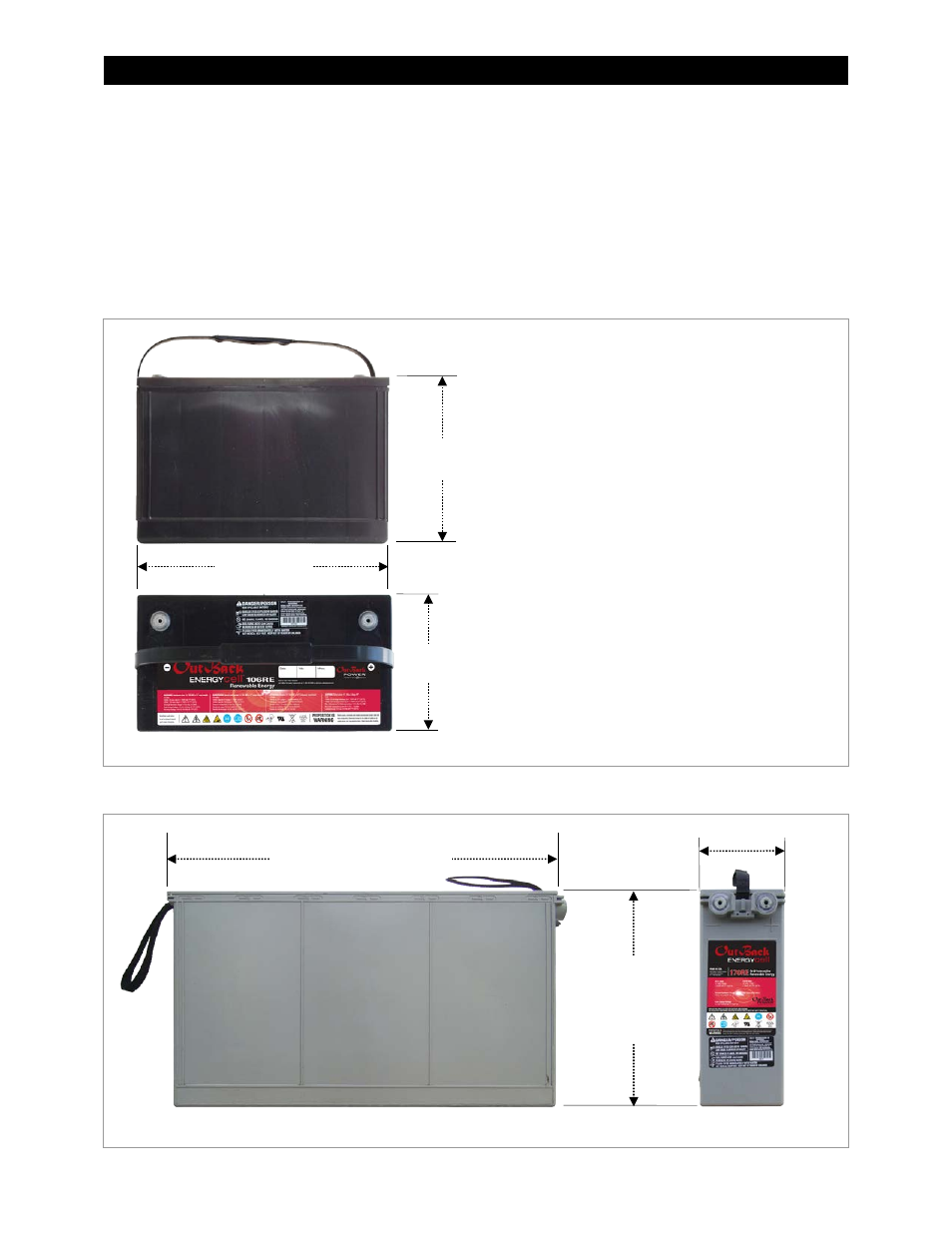

Figure 2 EnergyCell RE Top Terminal Battery
Front Terminal
Figure 3 EnergyCell RE Front Terminal Battery
13.4” (34.1 cm)
8.5”
(21.6 cm)
6.8”
(17.3
EnergyCell RE Top Terminal Dimensions
Model Length Height Width
34RE 6.8” (17.3 cm) 7.8” (19.7 cm) 5.2” (13.2 cm)
52RE 8.1” (20.5 cm) 9.0” (22.9 cm) 5.5” (13.9 cm)
78RE 8.0” (20.3 cm) 10.8” (27.3 cm) 6.8” (17.3 cm)
95RE 8.1” (20.5 cm) 12.5” (31.8 cm) 6.8” (17.3 cm)
106RE
(shown)
8.5” (21.6 cm) 13.4” (34.1 cm) 6.8” (17.3 cm)
4.9” (12.6 cm)
11.1” (28.3 cm)
EnergyCell 170RE
12.6” (32.0 cm)
EnergyCell 200RE
22.1” (56.1 cm) EnergyCell 170RE
22.0” (55.9 cm) EnergyCell 200RE
