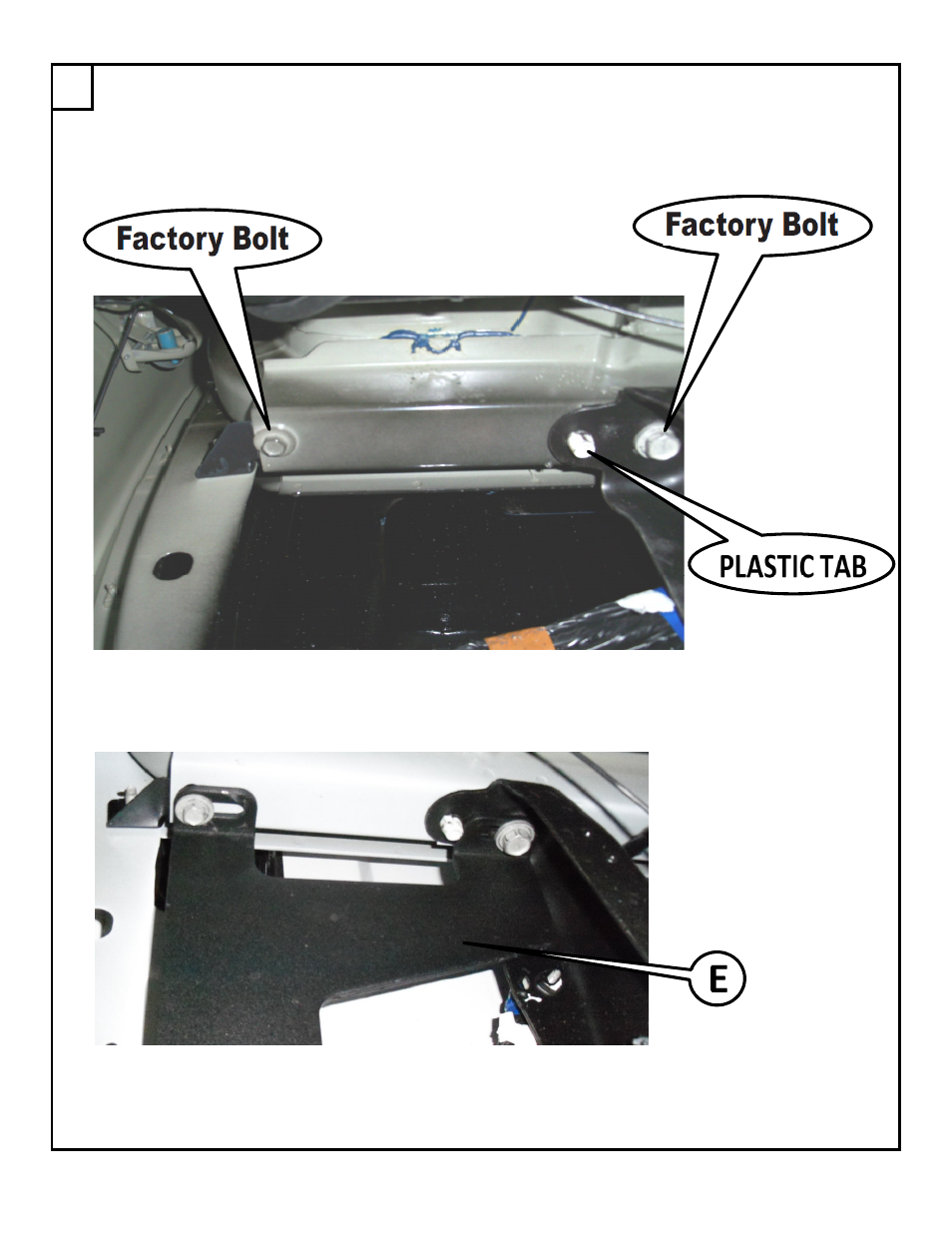

Locate the rear sub-box support as shown below. Remove the factory bolt holding the frame to
the bottom of the sub-box support using an 18mm socket and ratchet.
Remove the bolt at the front of the sub-floor support using a 13mm socket and ratchet.
18mm
13mm
2
Put the left hand mounting bracket [E] up to the sub-box support and attach using the previously
removed factory bolts. If the white plastic tab interferes with the brace, if may be trimmed to allow
the brace to fit.
Tighten the factory bolt using an 18mm socket. Tighten the 8mm bolt using a 13mm wrench or socket.
DZ 1361 3 OF 9 5/23/2011
