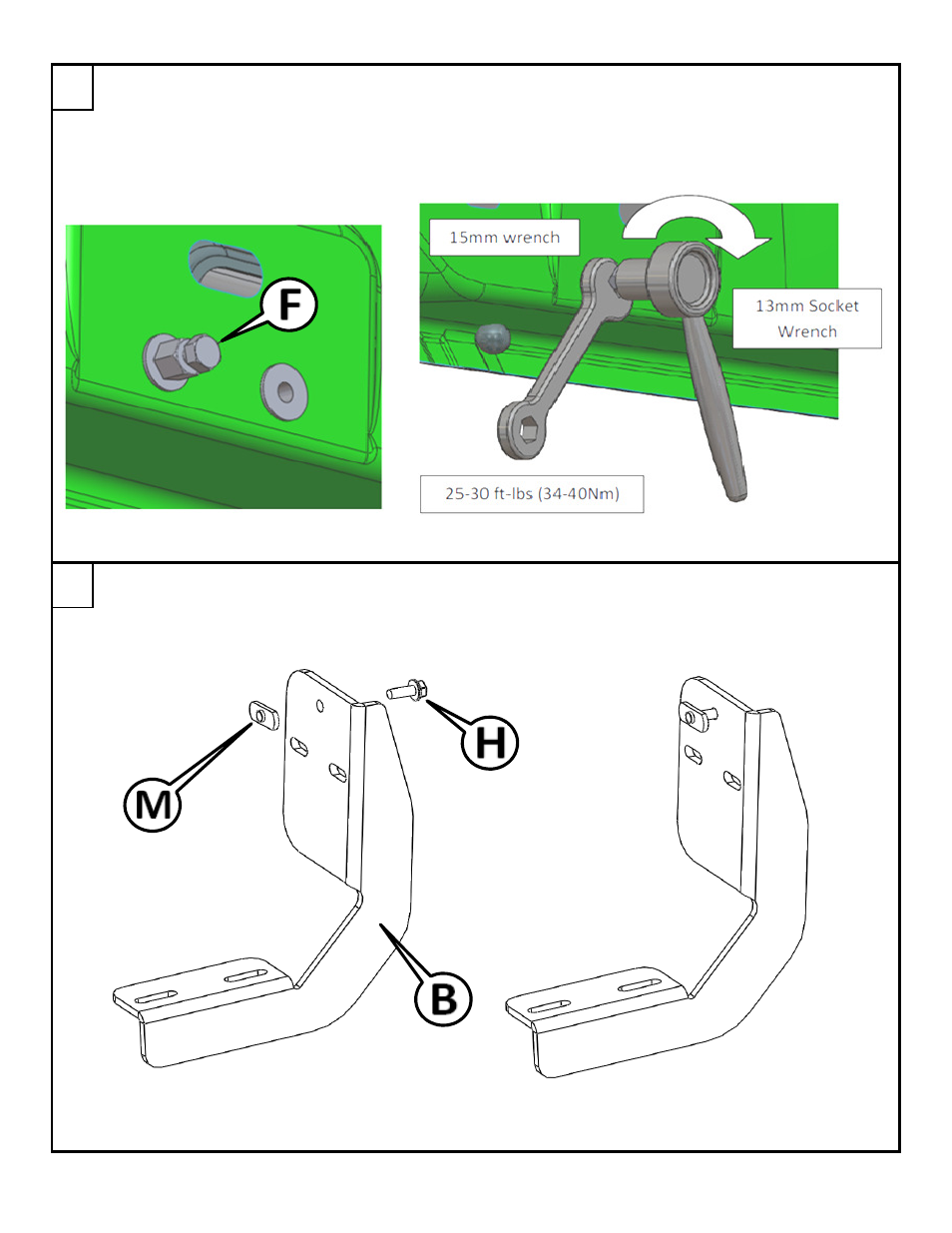

Use the nutsert set tool [F] to crimp the nutserts in the holes.
Hold the nut on the set tool with a 15mm wrench. Tighten the bolt in the set tool with a 13mm
socket.
Torque the nutserts to the spcification below to insure they are set correctly.
Put a 8mm x 25mm bolt [H] through the top hole in the brace [B] and thread into the
5
6
Put a 8mm x 25mm bolt [H] through the top hole in the brace [B] and thread into the
8mm threaded plate [M] until the bolt starts to come through the threaded plate.
Repeat this for the other braces.
6
FX 31927 5 OF 10 12/16/2011
