Dee Zee DZ16335 - Manual (Page 9)

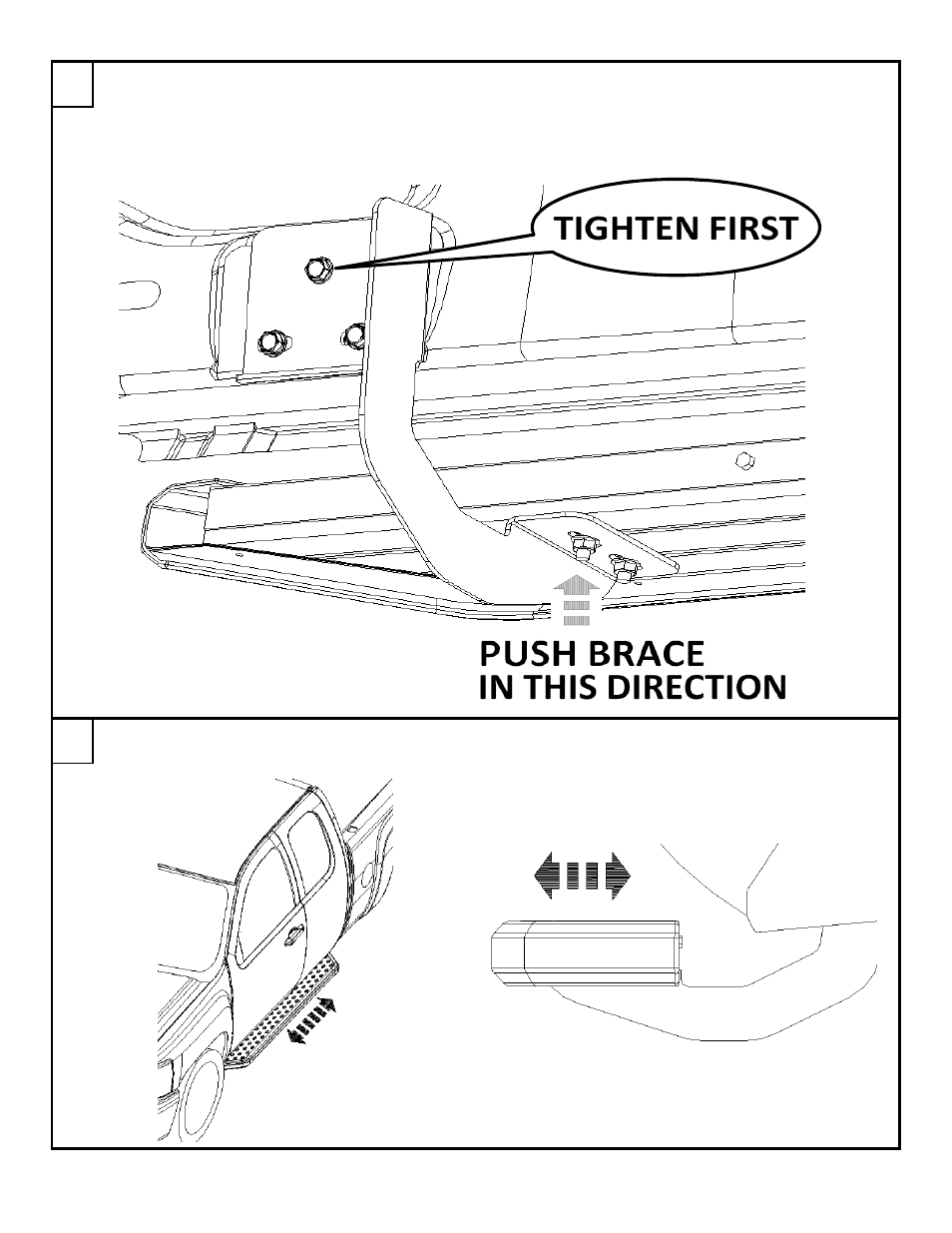

Push up on the brace to put tension on the threaded plate in the large slot. Tighten the bolt
with the threaded plate using a 13mm socket. Air tools are recommended for this.
After the bolt with the threaded plate is tightened, tighten the remaining two 8mm bolts.
Repeat this step for all brace locations using the appropriate braces for your cab style.
Once all of the braces have been tighened, adjust the board front/back and in/out to align it
with the vehicle.
8
9
DZ 16335 7 of 8 7/10/2013
