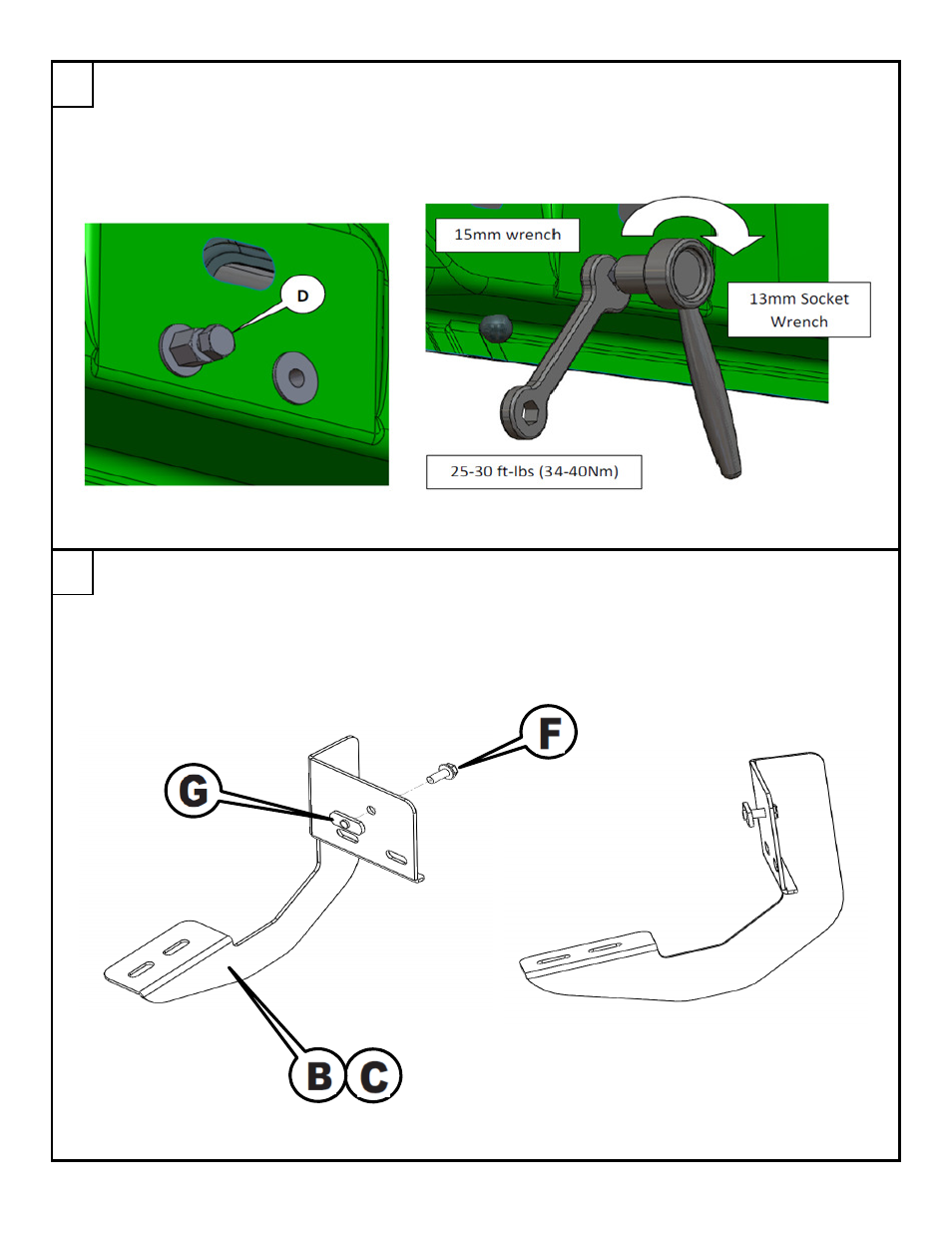

Use the nutsert set tool [D] to crimp the nutserts in the holes.
Hold the nut on the set tool with a 15mm wrench. Tighten the bolt in the set tool with a 13mm
socket.
Torque the nutserts to the spcification below to insure they are set correctly.
Put a 8mm x 25mm bolt [F] through the top hole in the braces and thread into the
8mm threaded plate [G] until the bolt starts to come through the threaded plate.
The images of the braces may vary slightly from the braces in the kit, but the installation of the bracket
is the same.
3
2
3 of 8 7/10/2013
