1

Unplug the keyboard cable from the ADB port (marked by

V

) on the back of the

computer.

2

Plug the unattached end of the keyboard cable into the ADB port (marked by

V

) on the

left side of the monitor stand.

IMPORTANT

When connecting ADB cables to the monitor stand, be sure the

flat side of the connector faces up. If you force the connector the wrong way,
you could damage it.

3

Attach one end of an extended ADB cable to the ADB port (marked by

V

) on the back of

the monitor stand.

4

Attach the other end of the extended ADB cable to an ADB port (marked by

V

) on the

back panel of the computer.

Turning the monitor on

To turn on the monitor for the first time:

1

Start up your computer.

2

Press the Power button on the front right side of the monitor.

The power indicator light goes on. If the power indicator light does not come
on, press the power switch again. If this doesn’t work, make sure you’ve
connected the monitor to your computer properly (see “Connecting the
Monitor to Your Computer,” earlier in this chapter). Also, make sure your
computer is turned on.

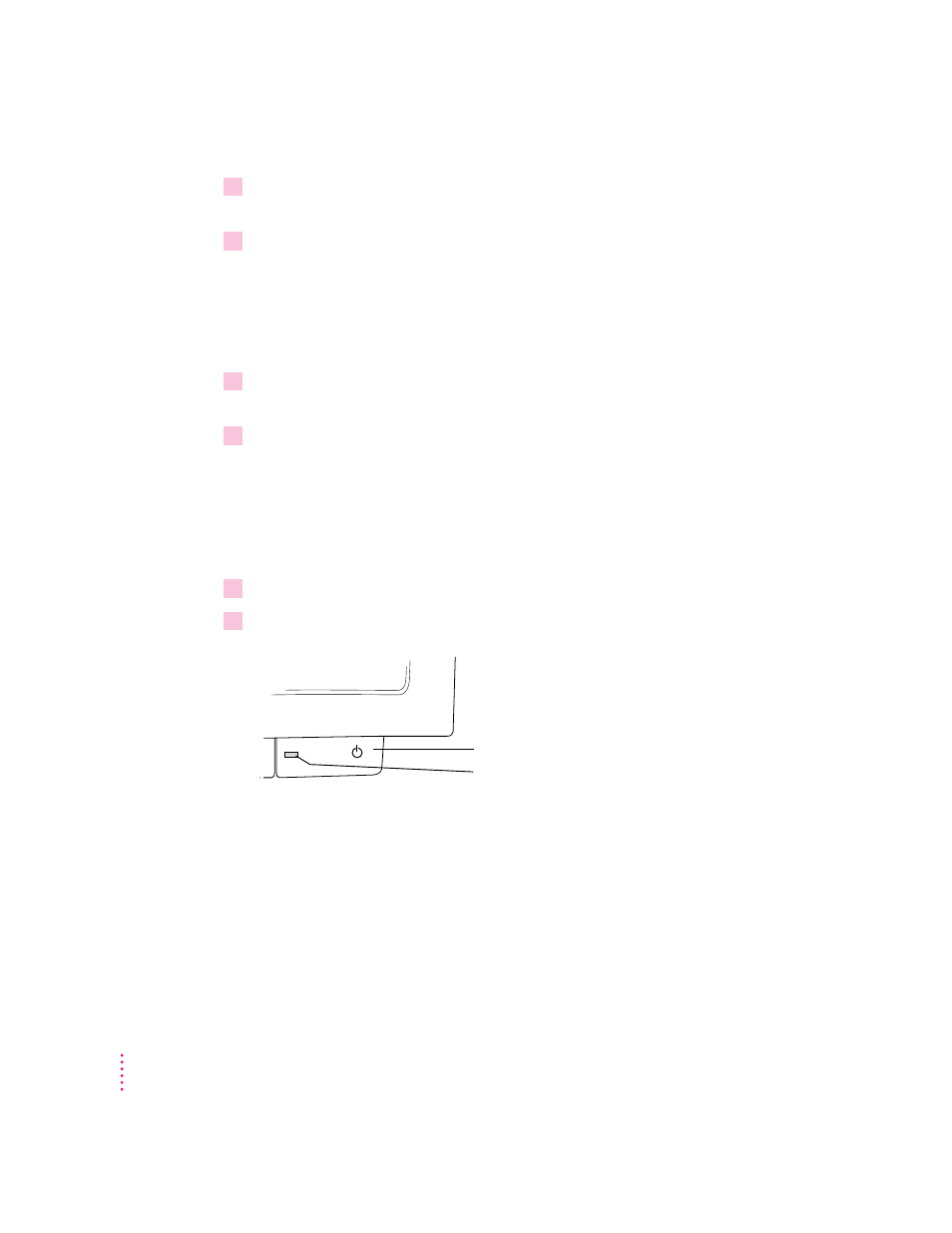

Power indicator light

Power button

10

Chapter 1
