H.264 Realtime DVR – QUICK USER GUIDE
Global
Within this section:
1. Watermarking should be set to on, this allows the supplied software to verify the downloaded information to
ensure it has not been tampered with or changed.
2. Repeat recording can be set to continually overwrite or stop when the drives are full.
3. Pre Recording resolution can be set to 4CIF (D1) – 720 X 576 (giving 100fps recording) or 2CIF -720 X 288
(200fps) or CIF - 360 X 288 (400fps).
4. Pre FPS/Pre Duration/Post Duration is recommended to set active to get data just before event occurs.
Post Duration is selectable.
-Pre FPS: Value dependant on Pre resolution setting (up to 25 FPS)
-Pre Duration & Post Duration: 5/30/60/90/120/150/180/210/240 sec.
5. Quality options are High, Middle or Low
6 . Alarm/Event Mode is used for EVENT(Alarm, Audio, Motion) Recording. Default is ‘Exclusive’ which is only
recorded event channel.
1) “Exclusive” setting,
Only event channels will be recorded. These settings are applied to all channels.
2) “Normal” setting,
Basically, “Normal” is for all channel recording including Non-Event channel unless “Normal(T/L)” is not set as “0”fps.
-Non Event Channel: 1fps @ Normal(T/L) recording resolution( *If Normal(T/L) is set as “0”fps, it won’t record)
-Event Channel: Frame is calculated to available maximum rate by the number of event channel.

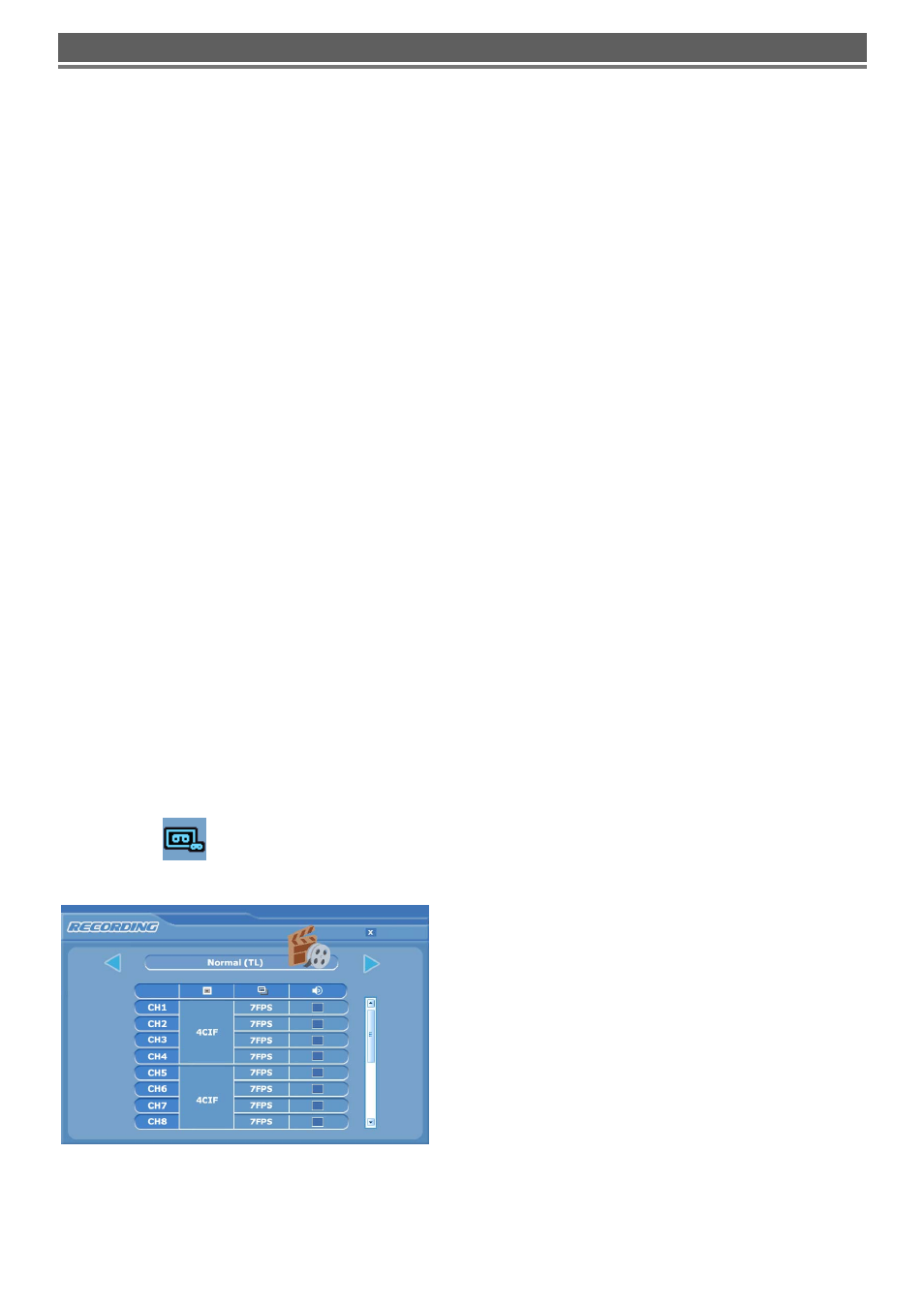

Normal (TL)
This configures the continuous recording settings per channel
Record rates available:
In 360x240 modes, 30fps is available to each channel
(total 480fps_NTSC).
In 720x240 mode 15fps is available to each channel
(Total 240fps_NTSC).
In 720x480 mode 7.5fps is available to each channel
(Total 120fps_NTSC).
Each channel can be individually configured for record rate and Audio on/off.
