H.264 Realtime DVR – QUICK USER GUIDE

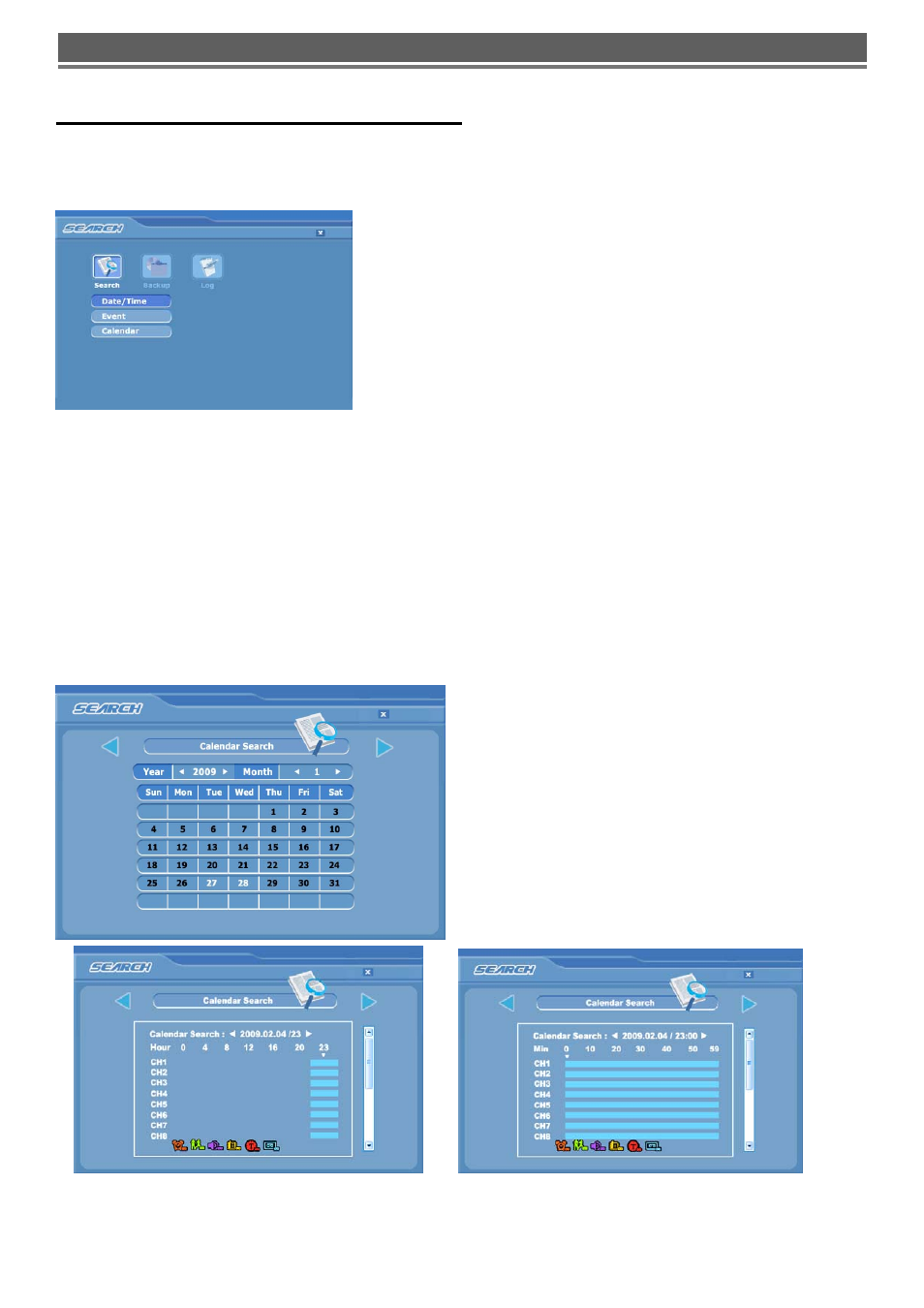

SEARCHING VIDEO FOOTAGE
To access the search option, press the SEARCH button on the front panel or right click the mouse and select Search,
(A password may have to be entered) after which the following screen will be displayed.
Date / Time Search
If you select date/time search, the following will be shown. Use the numerical number on the front panel or the mouse
to select the time and date required, then select Play.
EVENT
This allows the user to select between ALARM, MOTION or AUDIO. Select required option by pressing the right arrow,
or selecting with the mouse.
ALARM – The search is for any alarm activation within the times defined.
MOTION – The search is for any motion events within the times defined.
AUDIO – The search is for any audio activations within the times defined.
Calendar Search
Following screen is displayed when “Calendar” search is selected .
The Calendar search gives a graphical representation of
when video is recorded on the hard drive.
The year and month can be selected. This month is shown
as a calendar on the screen, any day which contains
recorded video will be indicated by a highlighted number in
white.
Move to the desired day by using the up / down / left / right
buttons, Select the day by pressing SEL.
The following screen will be displayed.
The hours which have recorded data are displayed as a coloured bar. Select the hour which you want to review, the
following screen will be displayed.
