Flaming River Rack and Pinion Installation

Install the OEM inner tie rod end into the Flaming River Travel Bar. Note: If using the original parts

some adjustment of the tie rod assembly may be required when connecting the to the spindle arm

and the travel bar.

OEM Inner Tie Rod End

Travel Bar

To install the outer tie rod end into the

spindles you must load the front sus-

pension. Securely place jack stands un

der the lower control arms and lowering

the car onto the jack stands. Make

sure that your wheels are centered,

then install the outer tie rod into the

spindle arms and tighten the

castle nuts to 30-40ft lbs. Make sure to

install the cotter pins through the castle

nut and tie rod end and bend the

tabs over.

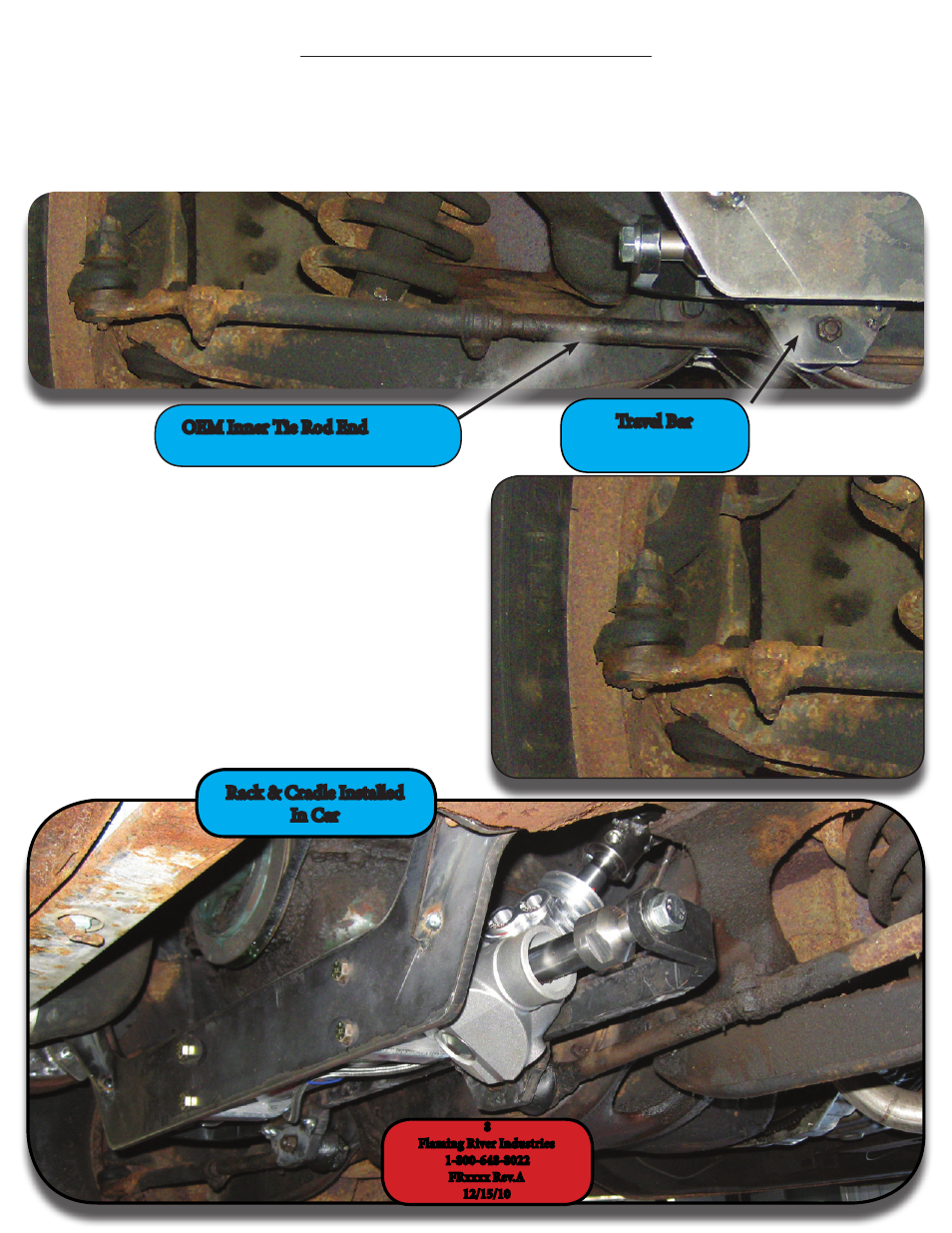

Rack & Cradle Installed

In Car
