Flaming River Tilt Column Installation
4) Place the column through the firewall
and under the dash, tighten the
mounting screws under the dash and
using the new hardware provided fasten
the floor mount to the firewall.
5) Replace the factory dash bezel using the
screws that were removed earlier.

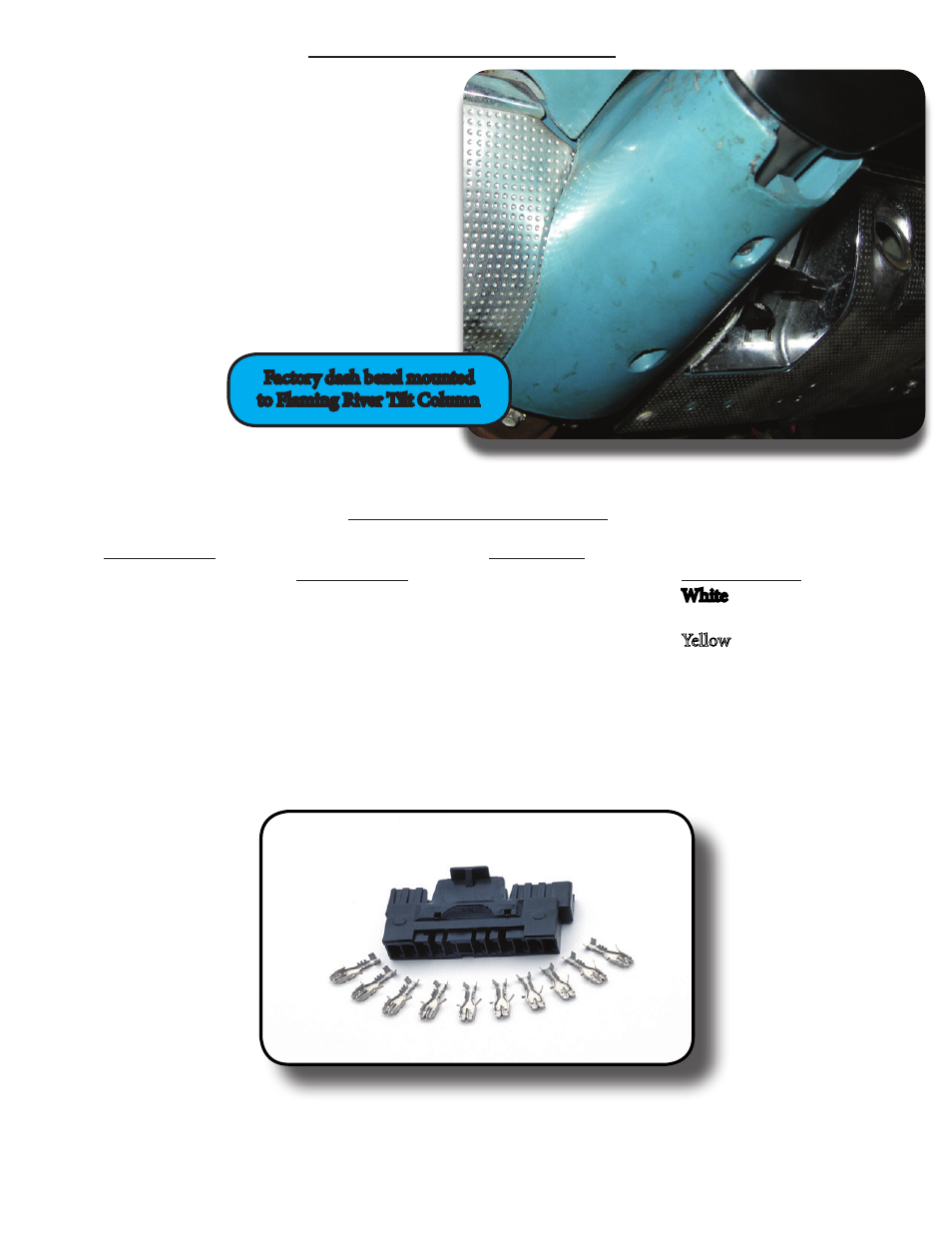

Factory dash bezel mounted
to Flaming River Tilt Column
Wiring Circuit
Brake Light Switch
Right Rear Turn Signal
Left Rear Turn Signal
Turn Signal Power
Hazard Power
Right Front Turn
Signal
Left Front Turn Signal
Horn
Vehicle Wiring
Reference Color
Verification from
column disassembly.
Pin Location
P
N
M
L
K
J
H
G
Column Wiring
White
Green
Yellow
Purple
Brown
Blue
Light Blue
Black
Connecting the Electric System
